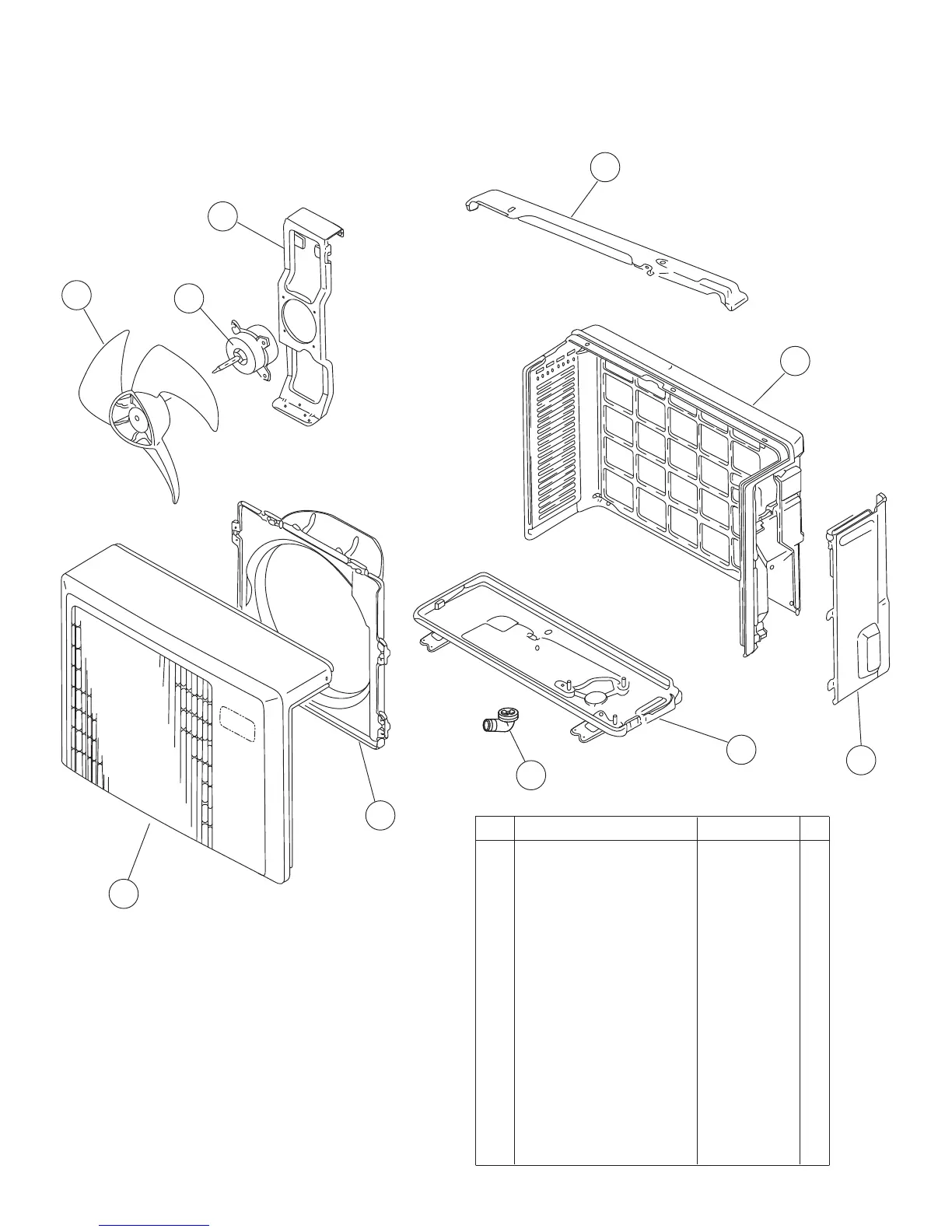

PARTS
OUTDOOR UNIT
-- Emblem Rear 9306337001
1
Cabinet Front Panel (RSJC)
9306386016
1
Cabinet Front Panel (RSJT)
9305525010
4 Connector Cover 9306119010
3
Cabinet Rear Panel (RSJT)
9305526017
3
Cabinet Rear Panel (RSJC)
9306385019
6 Base Assy 9306118020
7 Propeller Fan 9305538003
8 Fan Motor Assy (RSJT) 9602052011
8 Fan Motor Assy (RSJC) 9602257010
10 Drain Assy 9303029015
9 Bracket (Motor) 9305536016
5 Reinforcement 9306080013
2 Fan Ring 9305581023
Description Part numberRef.
