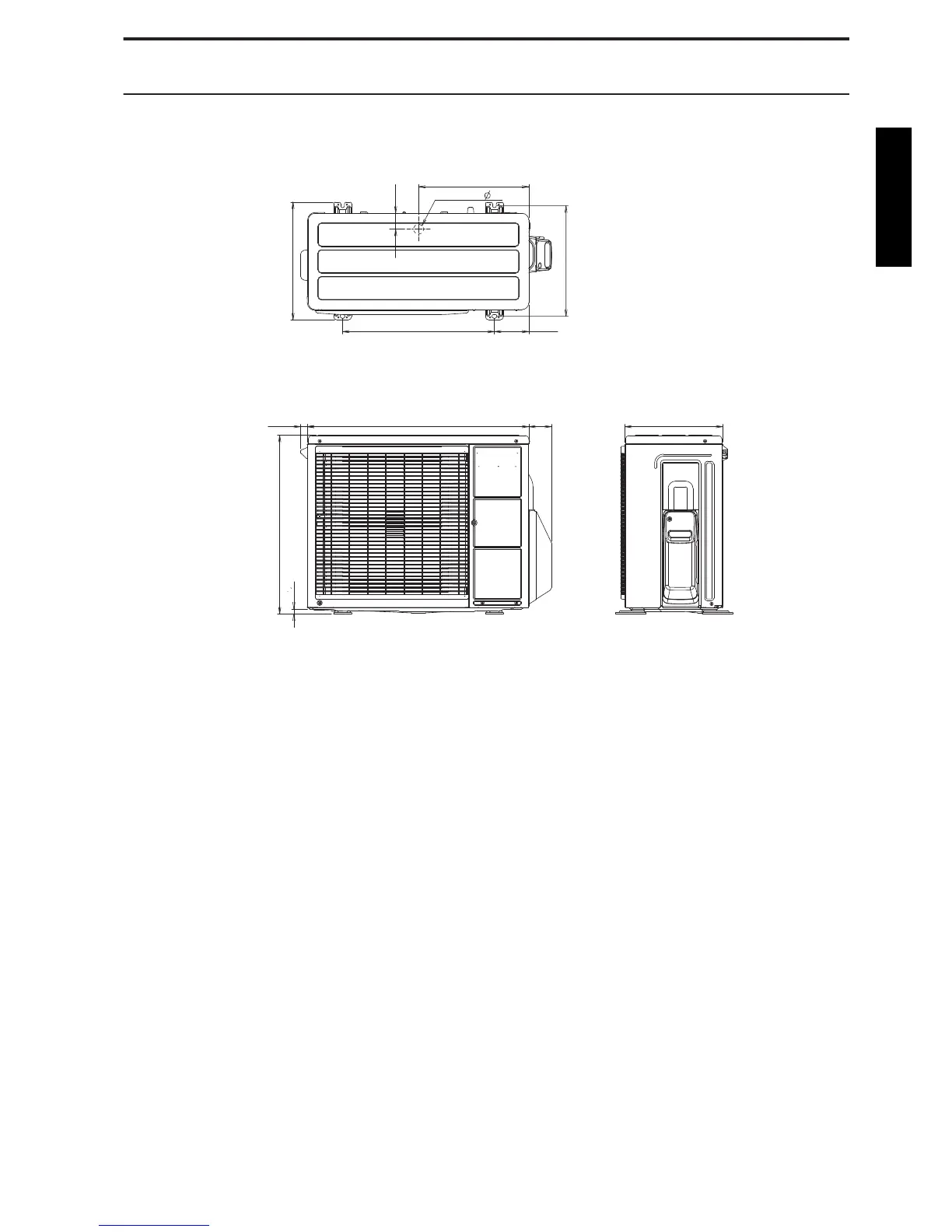

2. Dimensions
2-1. Models:AOYG07LLCE, AOYG09LLCE, and AOYG12LLCE
Top view
Unit: mm
Front view Side view
20 663 68 293
Drain hole 30
330
454
(Pitch of bolt)
103
535
15
48
352
330
- 25 -
OUTDOOR UNIT
AOYG07-12LLCE
