Fujitsu ASY50-KM Service Manual

¢ Wall mounted type (For KMTB, KMTE, KMCC, KMCE, and
KMCF)
• Rotation number range of compressor
Unit: rps
– Model: AOYG18KBTA3
Model name Outdoor temperature zone Operating rotation number
ASYG07–14KMTB
ASYG07–14KMCC
ASYG07–14KMCE
ASYG07–14KMCF
X zone 54
J zone 54
Y zone 0
– Model: AOYG24KBTA3
Model name Outdoor temperature zone Operating rotation number
ASYG07–18KMTB
X zone 54
ASYG18KMTE
ASYG07–14KMCC
J zone 54
ASYG07–14KMCE
ASYG07–14KMCF
Y zone 0

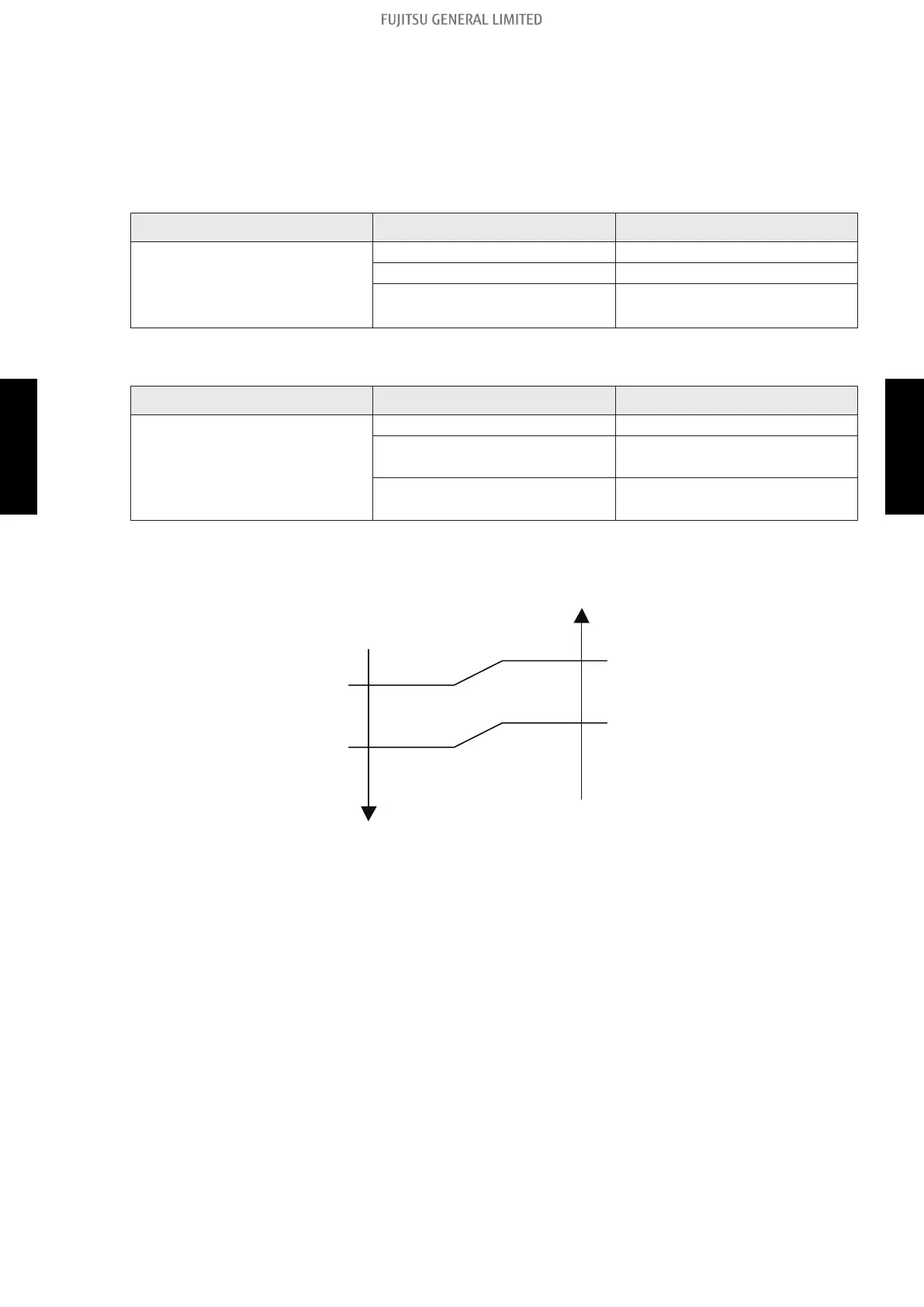

• Compressor control based on room temperature
Ts+0.5°C
Ts -1.5°C
Ts-0.5°C
Ts+1.5°C
X zone
J zone
Y zone
Room temperature drops
Room temperature rises
Ts: Set temperature
1-3. Dry operation - (04-15) - 1. Rotation number control of compressor
CONTROL AND FUNCTIONS CONTROL AND FUNCTIONS
