Fujitsu ASY50-KM Service Manual

¢
AR-REB1E (for Wall mounted type KMCC) and AR-RMB1E (for
Wall mounted type KMCE and KMCF)

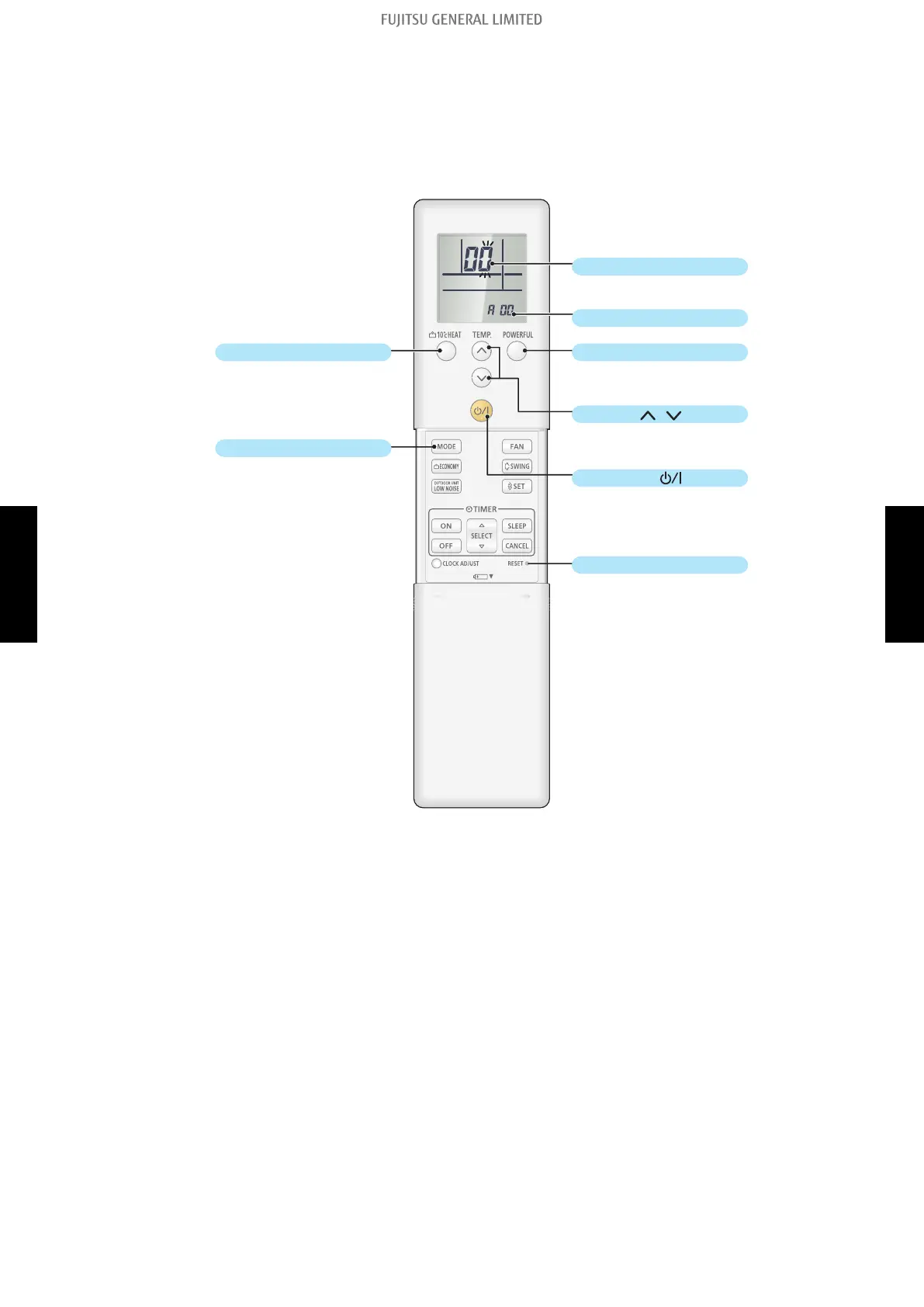

 Button name and function
During address setting mode, indoor unit reject the any operation command from remote con-
troller.
10°C HEAT button
Setting number
Function number
Refer to Function details.
Refer to Function details.
Switches between the setting number
(bottom line) and function number (top
line).
The displayed number Increases and
decreases.
Changes the displayed digits.
Fixes function setting.
Transmits function mode.
POWERFUL button
TEMP. (
/ ) button
Start/Stop ( ) button
RESET button
MODE button
1-2. Indoor unit (setting by wireless remote controller)
- (05-9) - 1. Function settings (for indoor unit)
FIELD WORKING FIELD WORKING
