Fujitsu ASY50-KM Service Manual

¢
UTY-RVNYM
 Function setting procedure
1. Connect the power supply of the outdoor unit.
2. Switch to the function setting mode.

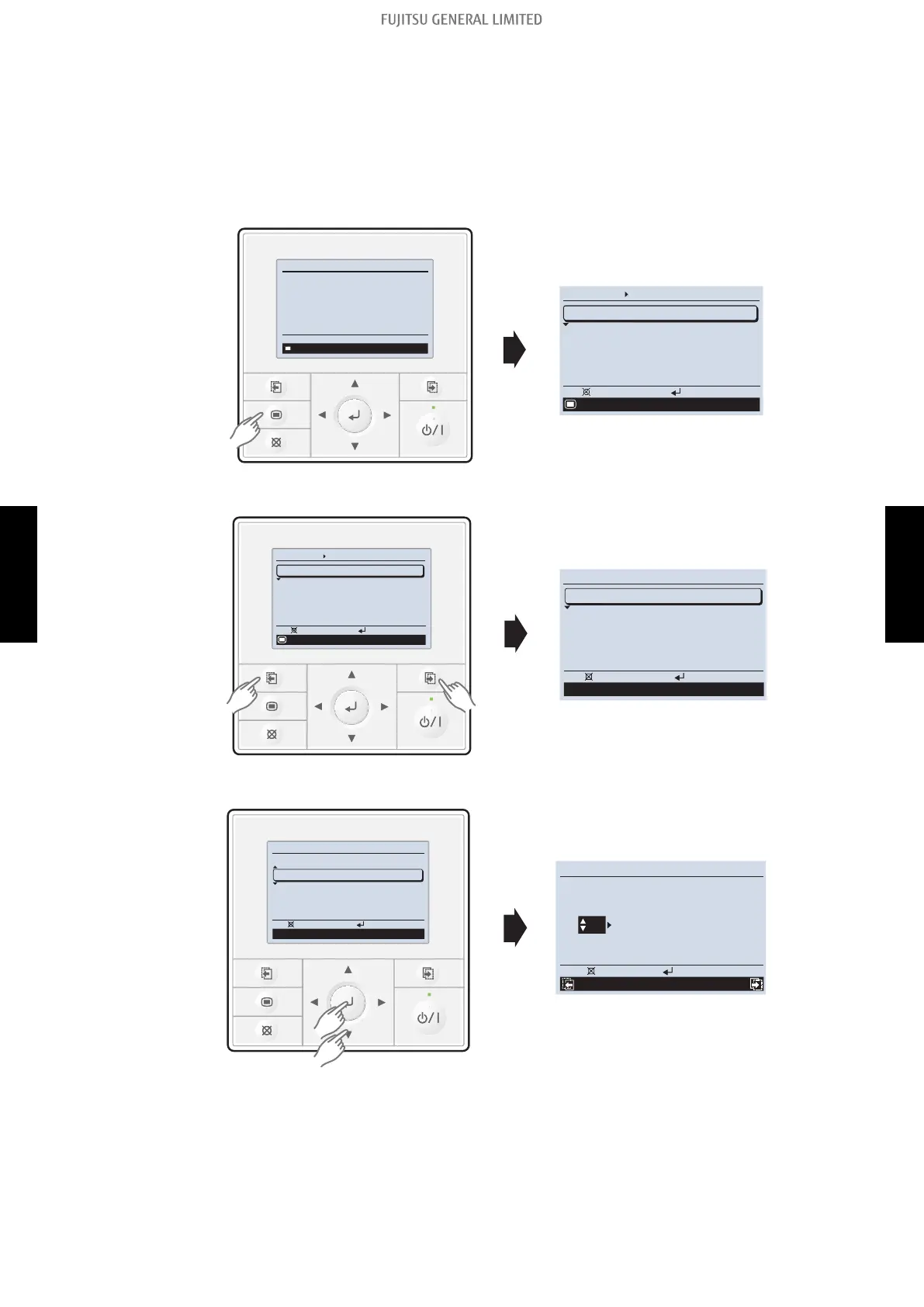

When [Menu button] is pressed twice while “Monitor” screen is displayed, it switches to the
“Submenu” screen. If [Menu button] is pressed while the “Submenu” screen is displayed, the
display returns to the “Monitor” screen.
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo
10:00AM
Menu
Monitor
O f f
Mo 10:00 AM
Press the [Screen switch button (Left)] and [Screen switch button (Right)] simultaneously for 5
seconds to switch to “Service” screen.
Back : Set ti ng :
Service
Mo
10:00AM
Function s e tting
Error h i s t ory
I.U.addre s s v e r i f i ca ti o n
V e r s i o n
Test run
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo 10:00AM
Select [Function setting] with pressing the [Cursor button (Up/Down)], and press the [Enter but-
ton].
Back
: Setting:
Service
Mo 10:00AM
Fu n ct io n s et ti ng
Error hi sto ry
I.U.a dd re ss v e r i f i c a t i o n
V e r s i o n
Test run
C
ancel
:
OK:
Function se ttin g
Mo
10:00AM
R.C. Function Setting
address No. No.
00 00 00
Version Er r o r hi s t ory
1-3. Indoor unit (setting by wired remote controller) - (05-25) - 1. Function settings (for indoor unit)
FIELD WORKING FIELD WORKING
