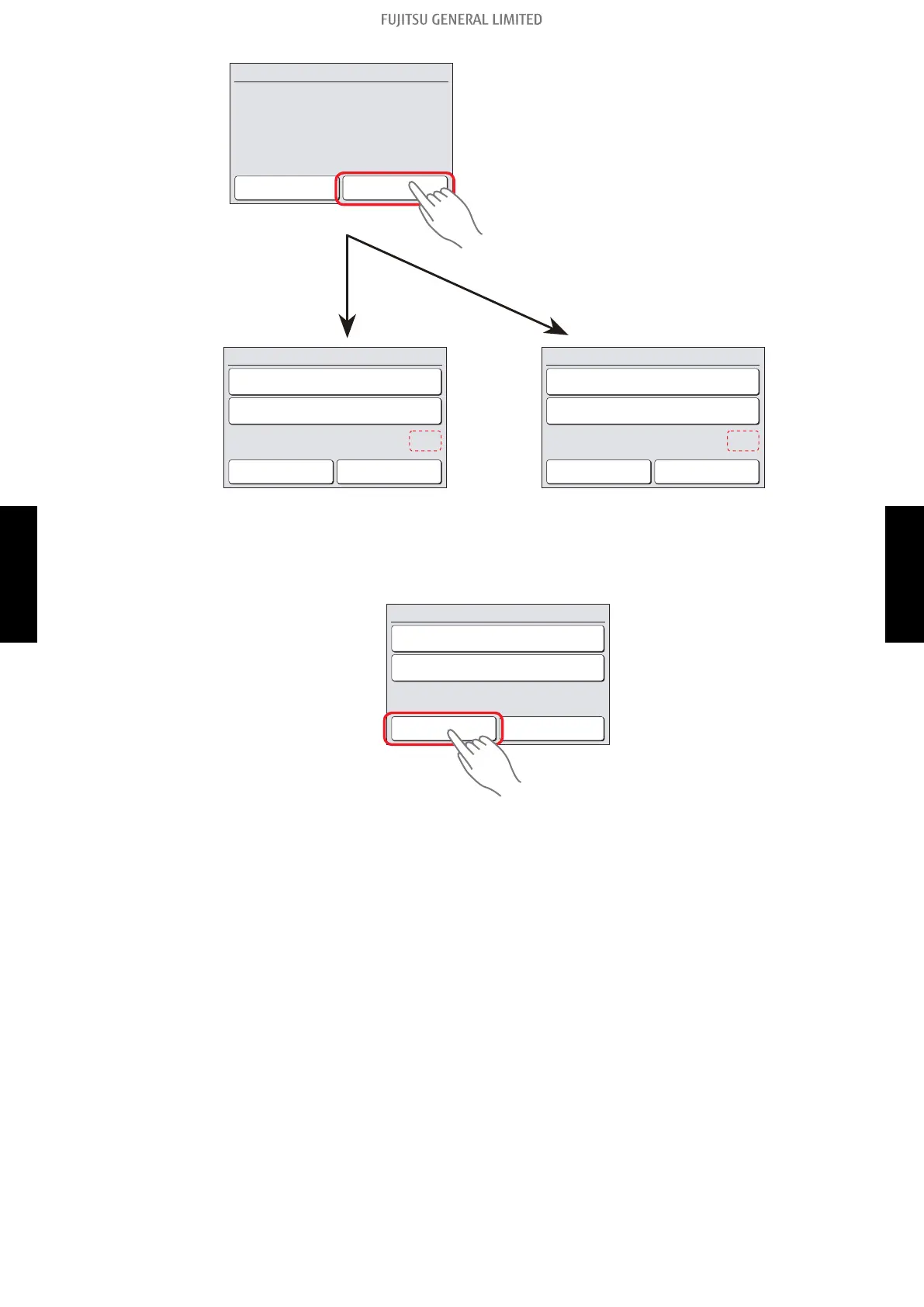

9. Touch the “Yes” of the verification screen.
No Yes
Function Setting
Function setting will be performed. OK?
[002–01]
[30]
[01]
Address
Function No.
Setting No.
Function Setting
Back Setting
[002–01]
[30]
[ – ]
Address
Function No.
Setting No.
Function Setting
Back Setting
In case of “ERROR”
In case of “OK”
When the data was normally set up
on the indoor unit
When the data was not set up
on the indoor unit ( [-] is displayed.),
set up the data again according
to the procedure in step 4 to 7 above
10. When the “Back” on the “Function Setting” screen is touched, the display returns to the “Mainte-
nance” screen.
[002–01]
[30]
[01]
Address
Function No.
Setting No.
Function Setting
Back Setting
Setting up each indoor unit
Repeat the procedure from step 1 to 6, and set up the indoor units requiring function setting.
Resetting the power after setting up function of all indoor units
NOTES:
• If the reset is not performed, function cannot be read correctly.
• After all the functions have been set, the circuit breaker needs to be switched off for at least 2
minutes.
– After the 2 minutes has passed, power can be restored.
– The set function is stored in the PCB and will remain in memory even when the power of in-
door unit is turned off.
However setting function is effective after disconnecting the power supply and then recon-
necting it.
• Record the latest configuration of the indoor unit function setting on a label, and put the label on
the unit so it can be used for after-sales service operations.
1-3. Indoor unit (setting by wired remote controller)
- (05-30) - 1. Function settings (for indoor unit)
FIELD
WORKING
FIELD
WORKING
