32003.11.21
3-Way valve
(with charging port)
Condenser
Dryer
Capillary tube
2-Way valve
(Flare connection)
Gas pipe (9.52 dia.)
(Flare connection)
(Flare connection)
Liquid pipe (6.35 dia.)
(Flare connection)
[ INDOOR UNIT ]
[ OUTDOOR UNIT ]
[ Connecting pipe ]
Evaporator
Com-
pressor

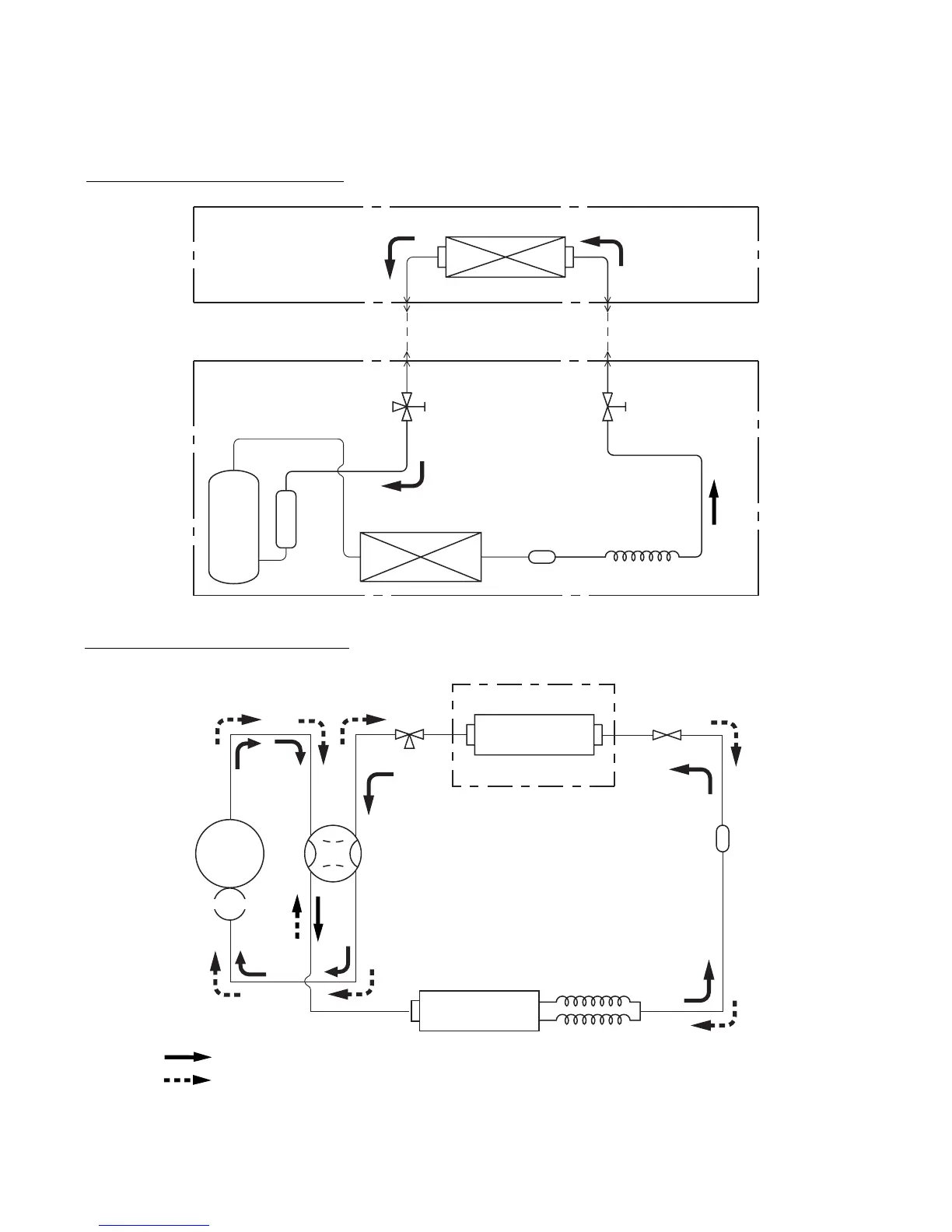

REFRIGERANT SYSTEM DIAGRAM
Models : ASY7FSBCW / AOY7FSBC
Models : ASY7USBCW / AOY7USBC
2-W
Dryer
ay valve
3-Way valve
4-Way valve
Evaporator
Condenser
Common capillary tube
: Cooling
: Heating
Com-
pressor
Accumulator
[ INDOOR UNIT ]
