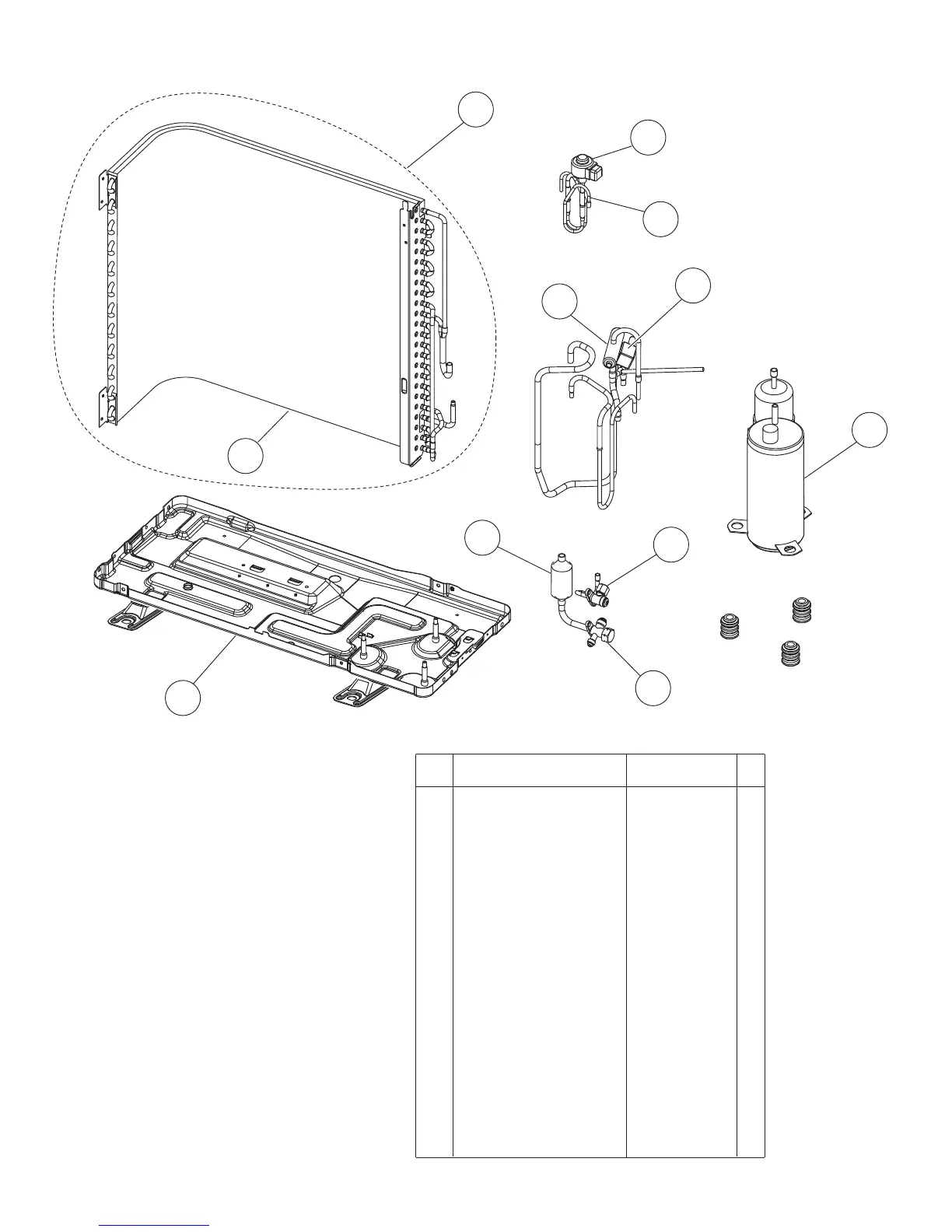

OUTDOOR UNIT
2011.04.11 18
24 Compressor Assy 9317083010
26 3 way Valve Assy 9318254006
30 Pulse Motor Valve Assy 9317216036
29 Solenoid 9970079023
23
Condenser Total Assy (07)
9317287012
23
Condenser Total Assy (09)
9317367103
31 Expansion Valve Coil 9970103025
27 Muffler 9317394000
28 4 way Valve Assy 9317890021
25 2 way Valve Assy 9318252002
21 Base Assy 9316916029
22 Condenser Assy (07) 9317286008
22 Condenser Assy (09) 9317193016
Ref. Description Part number
21
24
22
25
23
30
27
26
31
28
29
