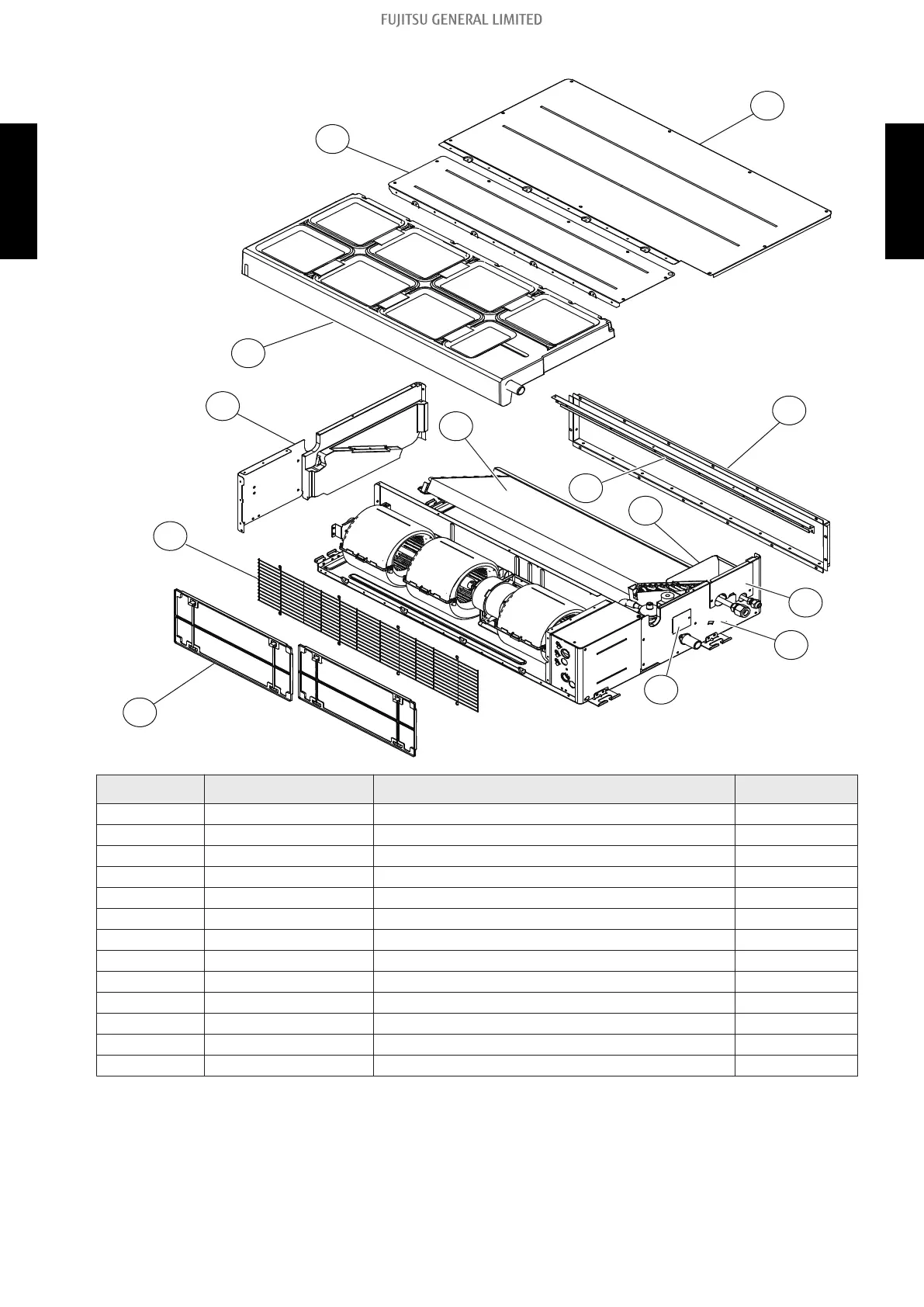

¢ Model: ARXG18KLLAP
Item no. Part no. Part name Service part
1 9379906012 Side panel R sub assy ♦
2 9379907019 Side panel L sub assy ♦
3 9379900003 Pipe panel sub assy ♦
4 9379915007 Panel (Window) sub assy ♦
5 9380042013 Outlet frame assy ♦
6 9380595007 Front panel (3-fan) ♦
7 9379576017 Valve cover sub assy ♦
8 9380590002 Fan guard (3-fan) ♦
9 9379575003 Air filter ♦
10 9380603016 Main panel (3-fan) ♦
11 9380598008 Cabinet panel (3-fan) ♦
12 9379901178 Drain pan sub assy ♦
13 9380682493 Evaporator total assy ♦
3-3. Slim duct type - (02-20) - 3. Indoor unit parts list
