44
43
45
41
42
Item no. Part no. Part name Service part
31 9710661006 Power supply PCB ♦
32 9710624131 Main PCB ♦
33 9710019005 2-way remote PCB ♦
34 9900568009 Terminal 3P ♦
35 9900896003 Terminal 3P (For wired remote controller) ♦
— 9900653019 Room thermistor ♦
— 9900942045 Pipe thermistor ♦

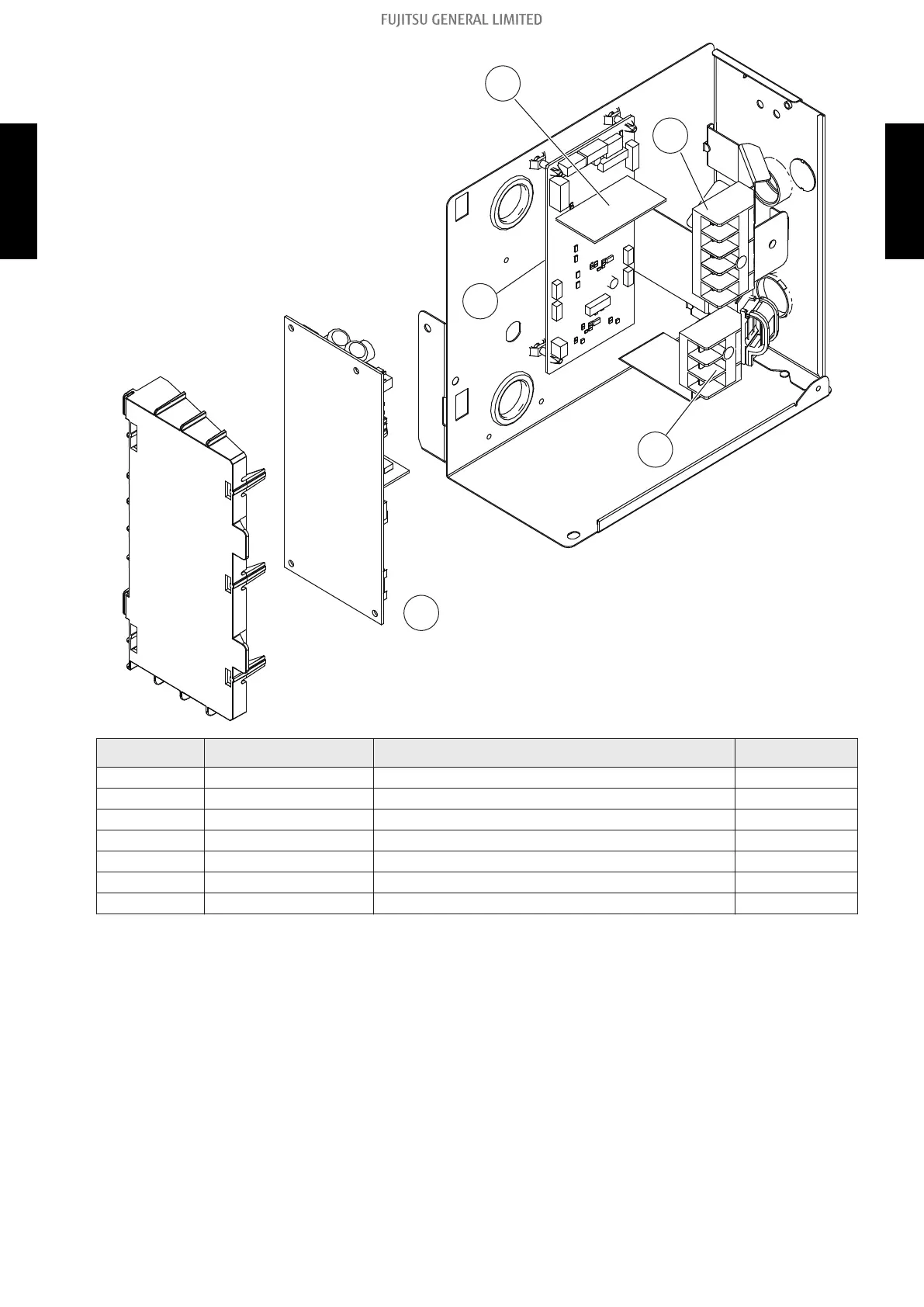

3-3. Slim duct type - (02-22) - 3. Indoor unit parts list
