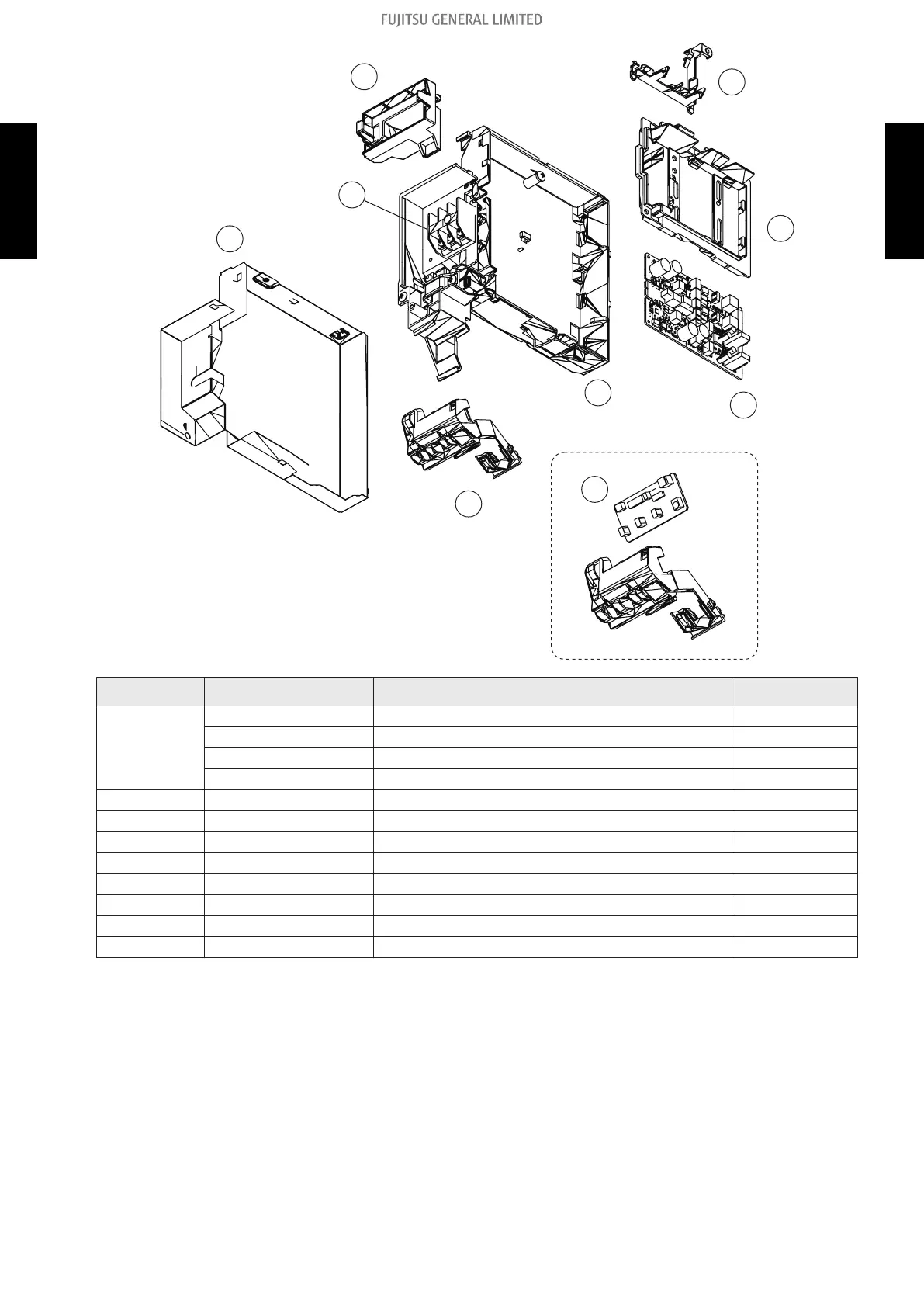

54
Display
case
assy
51
53
52
55
56
57
58
59
Item no. Part no. Part name Service part
51
9710368448 Main PCB (For 07 model)
9710368455 Main PCB (For 09 model)
9710368462 Main PCB (For 12 model)
9710368479 Main PCB (For 14 model)
52 9901013027 Terminal
53 9711146069 Display assy
54 9711147042 Indicator PCB
55 9387485004 WLAN holder
56 9387464009 PWB holder A
57 9387795011 PWB holder B
58 9387463026 Control box
59 9323537002 Box shield
3-4. Wall mounted type - (02-44) - 3. Indoor unit parts list
