Fujitsu ASYG09KETA User Manual

¢
Models: ASYG07–14KETA, ASYG07–14KETA-B, ASYG07–
14KETE, ASYG07–14KETE-B, ASYG07–14KETF, and ASYG07–
14KETF-B
(950)

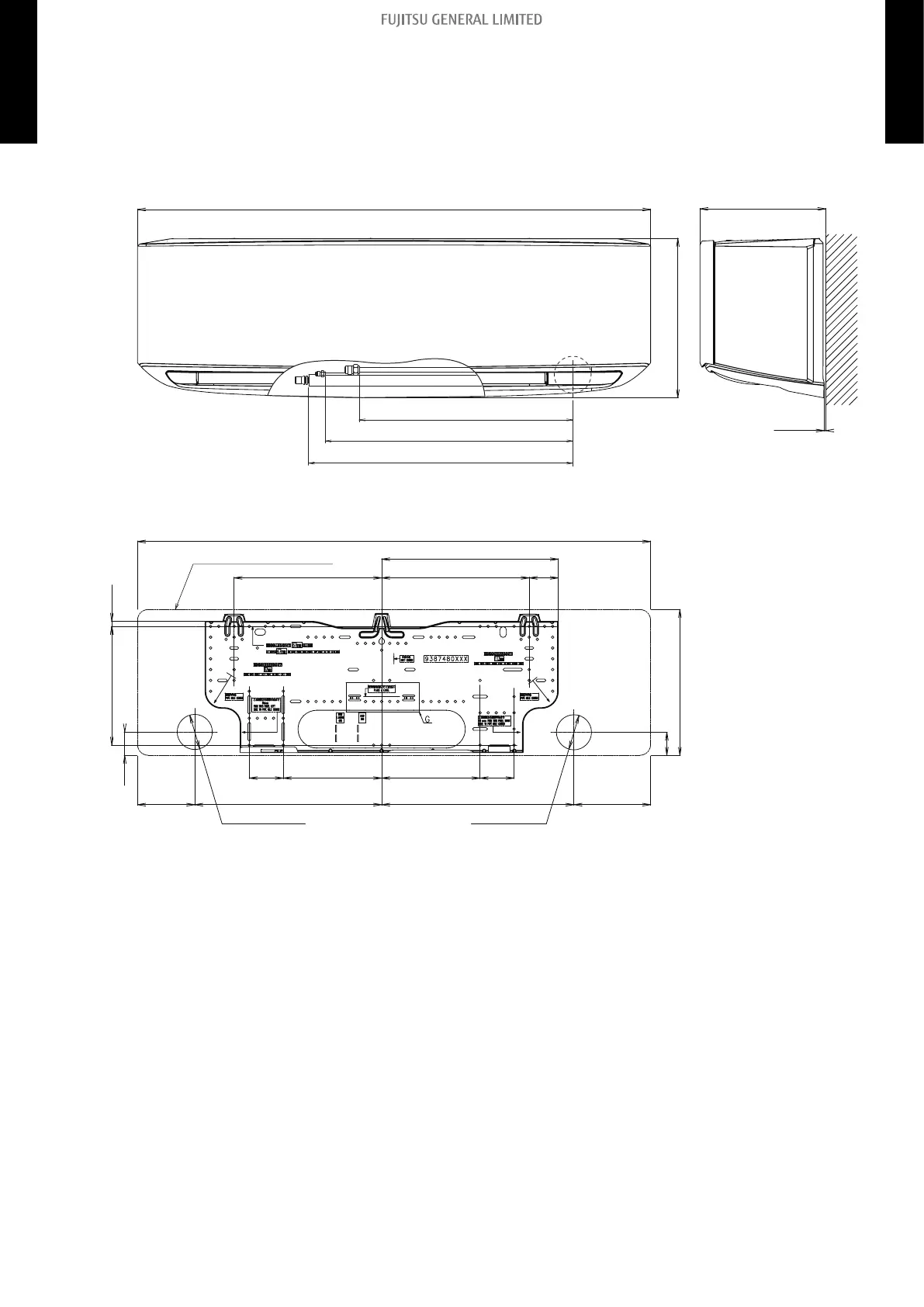

Outline of indoor unit
327
273273
54
(295)
43
43
9.5
220
for pipe inlet Ø65 for pipe inlet Ø65
182 182
356346106 142
63 63
950
295
230
3.0
Unit: mm
373.5
417.5
448
- 60 -
4-5. Wall mounted type
4. Dimensions
4-5 UNIT MULTI-SPLIT TYPE 4-5 UNIT MULTI-SPLIT TYPE

Fujitsu ASYG09KETA Specifications

General

Cooling Capacity	2.5 kW
Heating Capacity	3.2 kW
Power Supply	220-240V, 50Hz
Refrigerant	R32
Indoor Unit Dimensions (W x H x D)	784 x 270 x 224 mm
Outdoor Unit Dimensions (W x H x D)	663 x 541 x 290 mm
Operating Temperature (Heating)	-15°C to 24°C
