Page #7 background imageLoading...
Page #7 background image

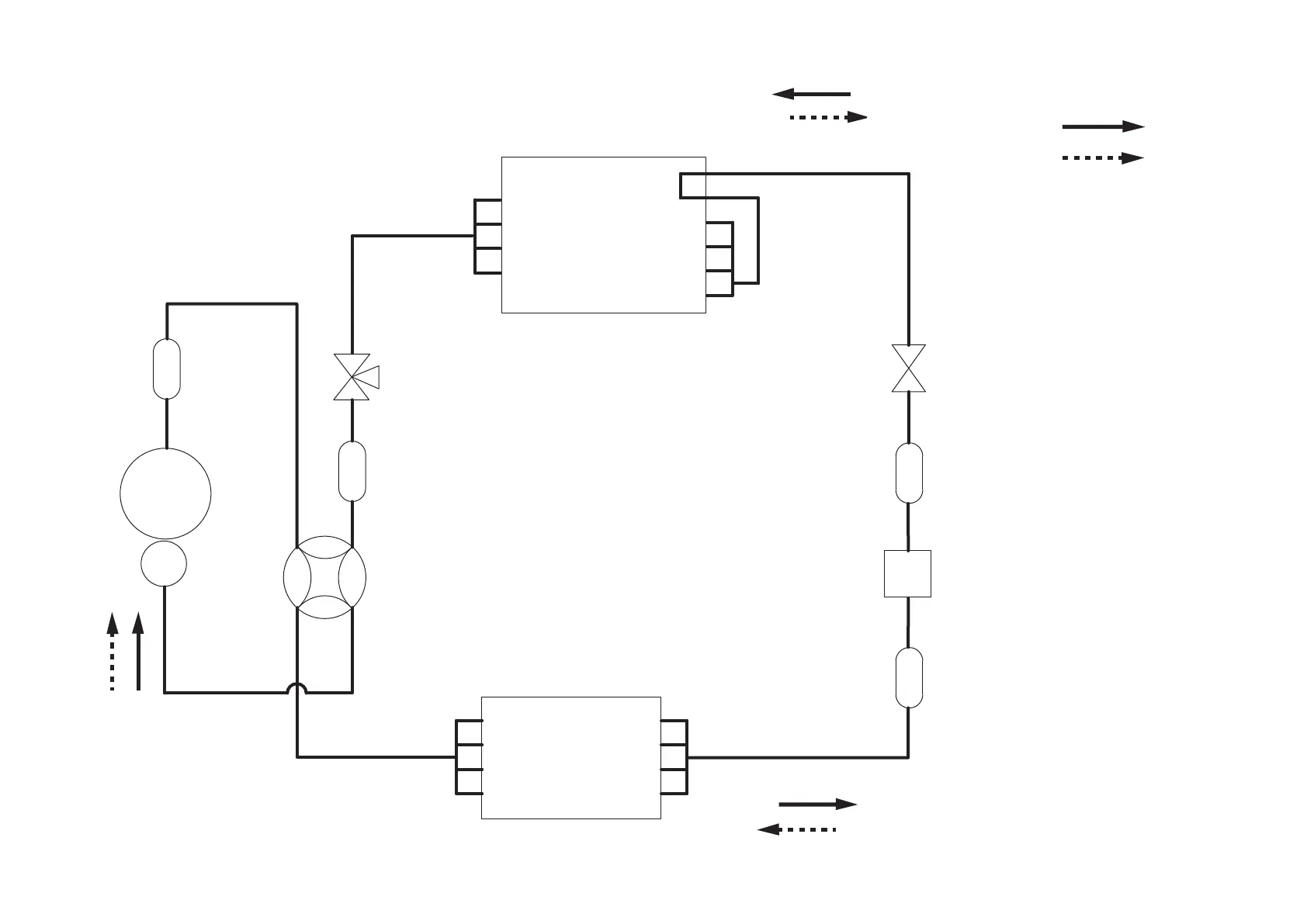

2-way valve
Strainer
Strainer
3-way valve
Muffler
4-way valve
Expansion valve
Refrigerant direction
ASYG12KGTA / AOYG12KGCA
ASYG14KGTA / AOYG14KGCA
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Muffler
Compressor
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2017.08.29 6
