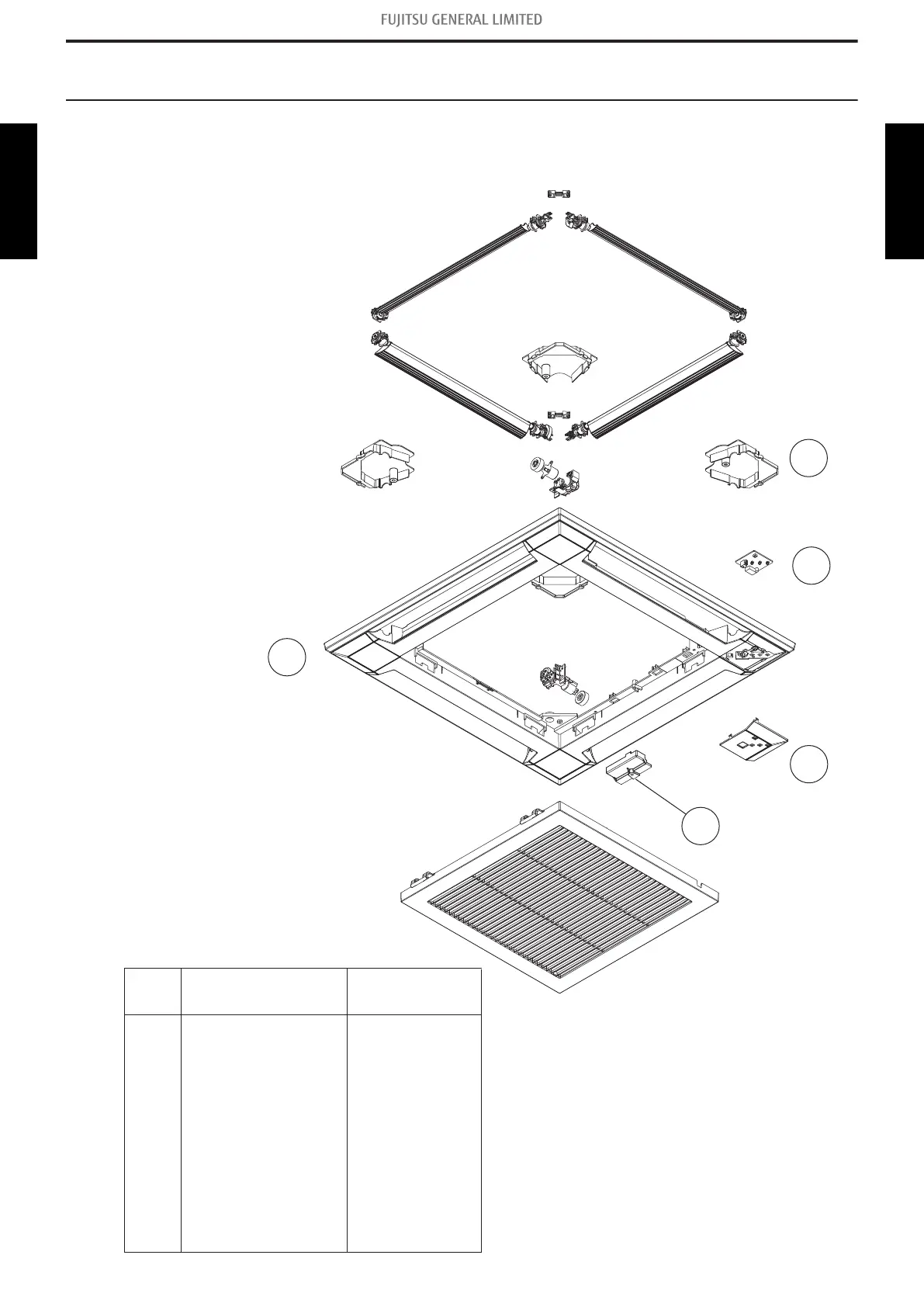

2. Cassette grille (optional part) parts list
2-1. Model: UTG-UFYF-W
¢ Panels
Parts No.DescriptionRef
1
2
3
4
5
Decoration Panel
without Insulations
Display panel assy
Panel Cover
without Insulations
Indicator PCB
Connector Cover
9382821005
9383100031
9375530013
9711310002
9375549015
2
3
4
5
1
2-1. Model: UTG-UFYF-W - (02-2) - 2. Cassette grille (optional part) parts list
TECHNICAL DATA
AND PARTS LIST
TECHNICAL DATA
AND PARTS LIST
