21
22
28
31
32
33
30
27
23
23
25
29
24
26
Item no. Part no. Part name Service part
21 9379908047 Total panel sub assy ♦
22 9379570022 Sirocco fan assy ♦
23 9379570039 Sirocco fan assy ♦
23 9381052004 Shaft assy ♦
23 9378038011 Joint assy ♦
23 9379644006 Rubber (Vibration proof) ♦
24 9379572019 Casing B ♦
25 9379571012 Casing U ♦
26 9379047142 Fan motor assy ♦
27 9378450097 Hose sub assy ♦
28 9379914062 Drain pump sub assy ♦
29 9378593039 Float switch sub assy ♦
30 9379913003 Drain hose assy ♦

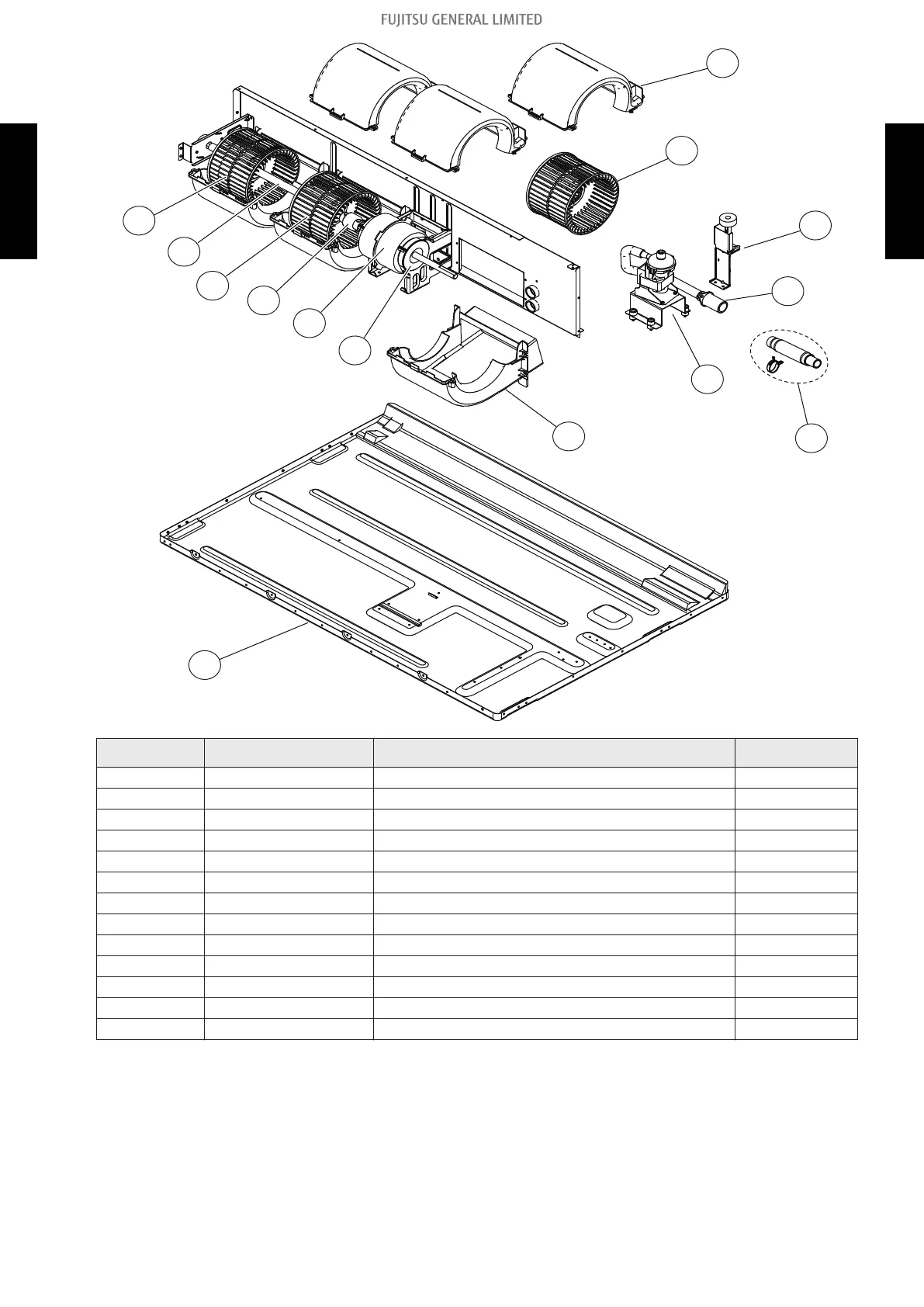

3-3. Slim duct type - (02-21) - 3. Indoor unit parts list
