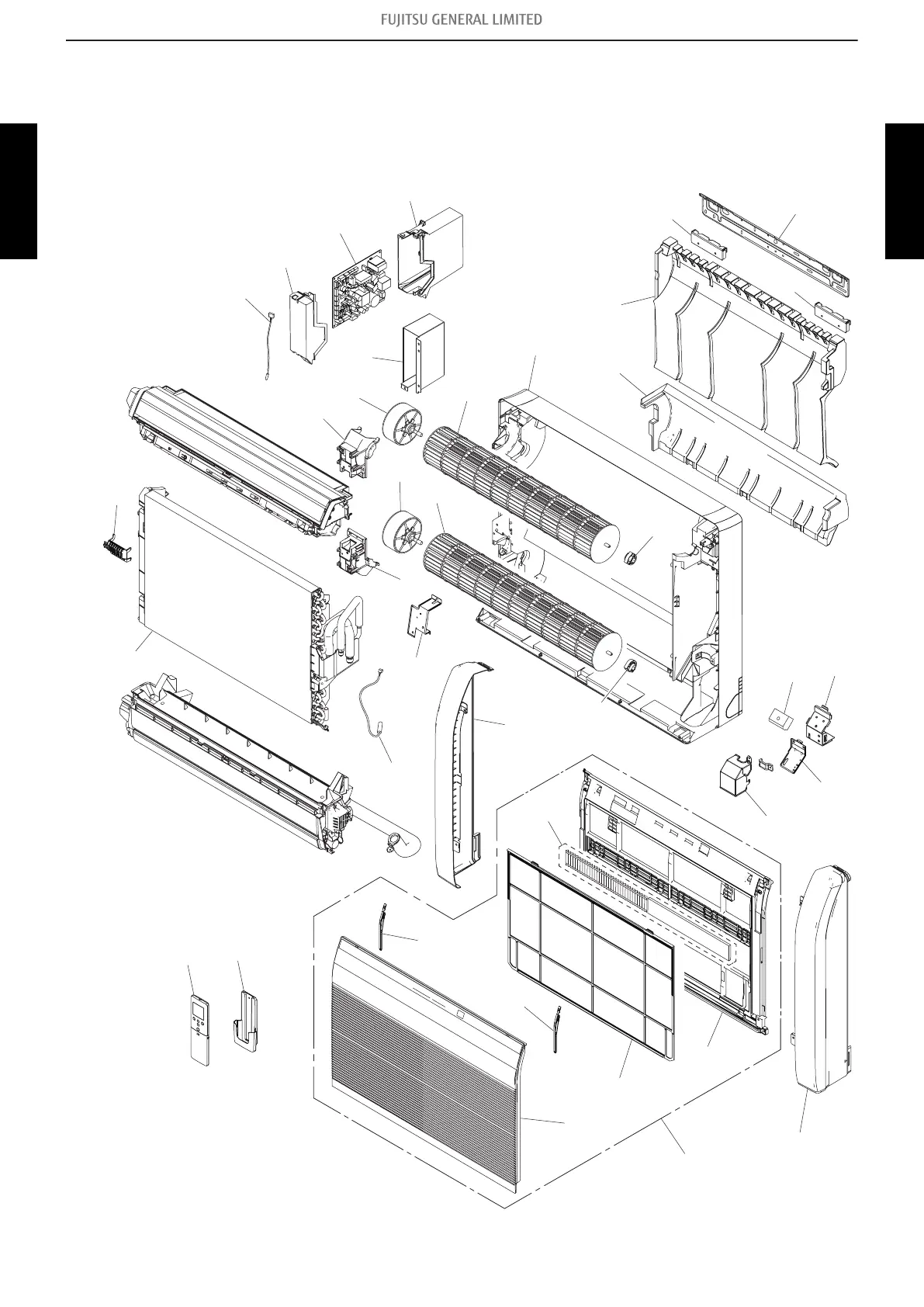

3-6. Floor type
¢ Models: AGYG09KVCA, AGYG12KVCA, and AGYG14KVCA
Exterior parts and chassis
25
1
5
2
7
3
4
4
6
24
6
20
23
26
20
18
h
f
a
b
c
g
19
e
17
21
d
11
9
8
16
10
12
13
14
12
15
22
3-6. Floor type - (02-52) - 3. Indoor unit parts list
