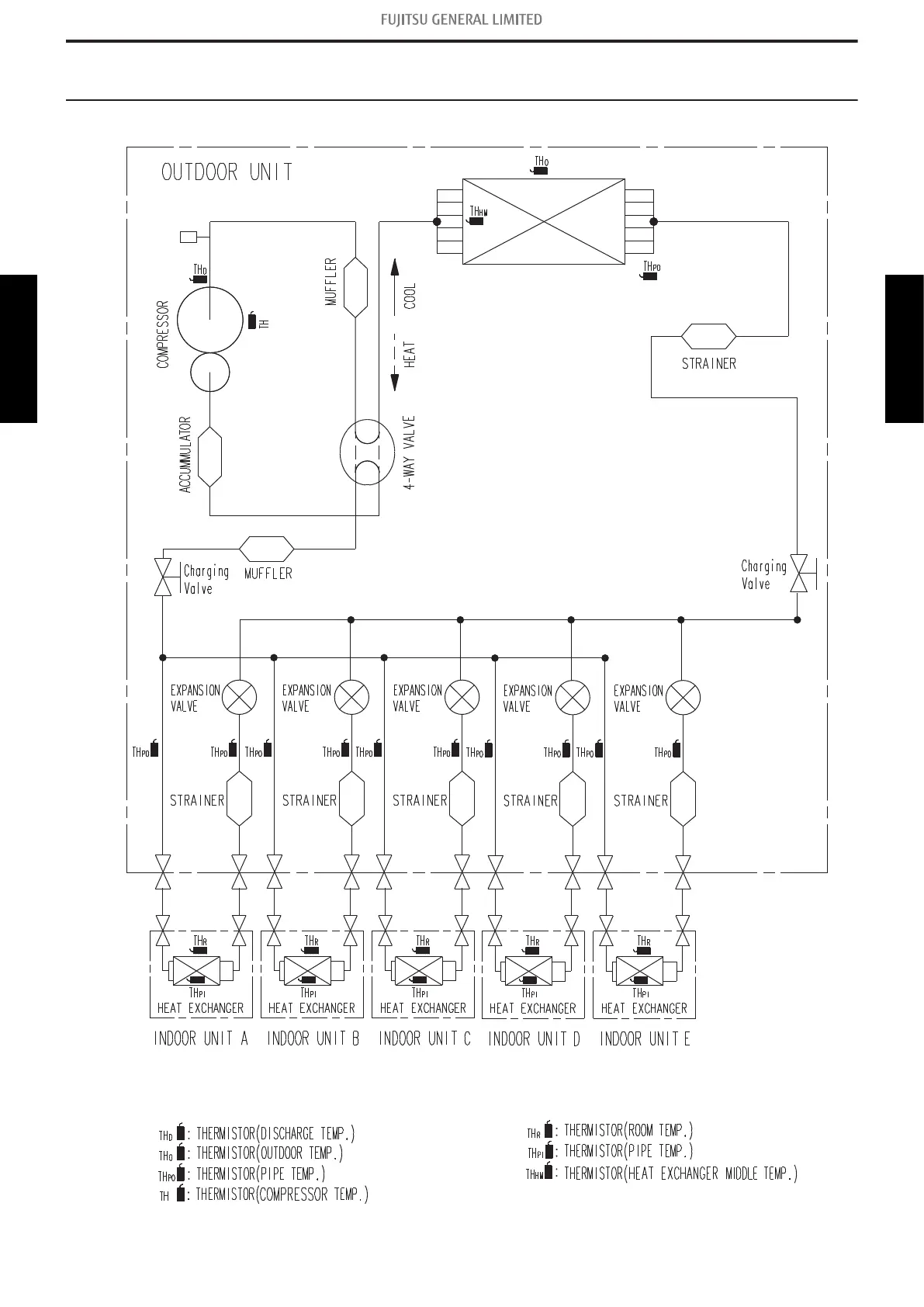

4. Refrigerant circuit
4-1. Model: AOYG36KBTA5
C
C
Pressure
switch
CONDENSER
- 476 -
4-1. Model: AOYG36KBTA5
4. Refrigerant circuit
OUTDOOR UNIT
AOYG36KBTA5
OUTDOOR UNIT
AOYG36KBTA5
