8. Wiring diagrams

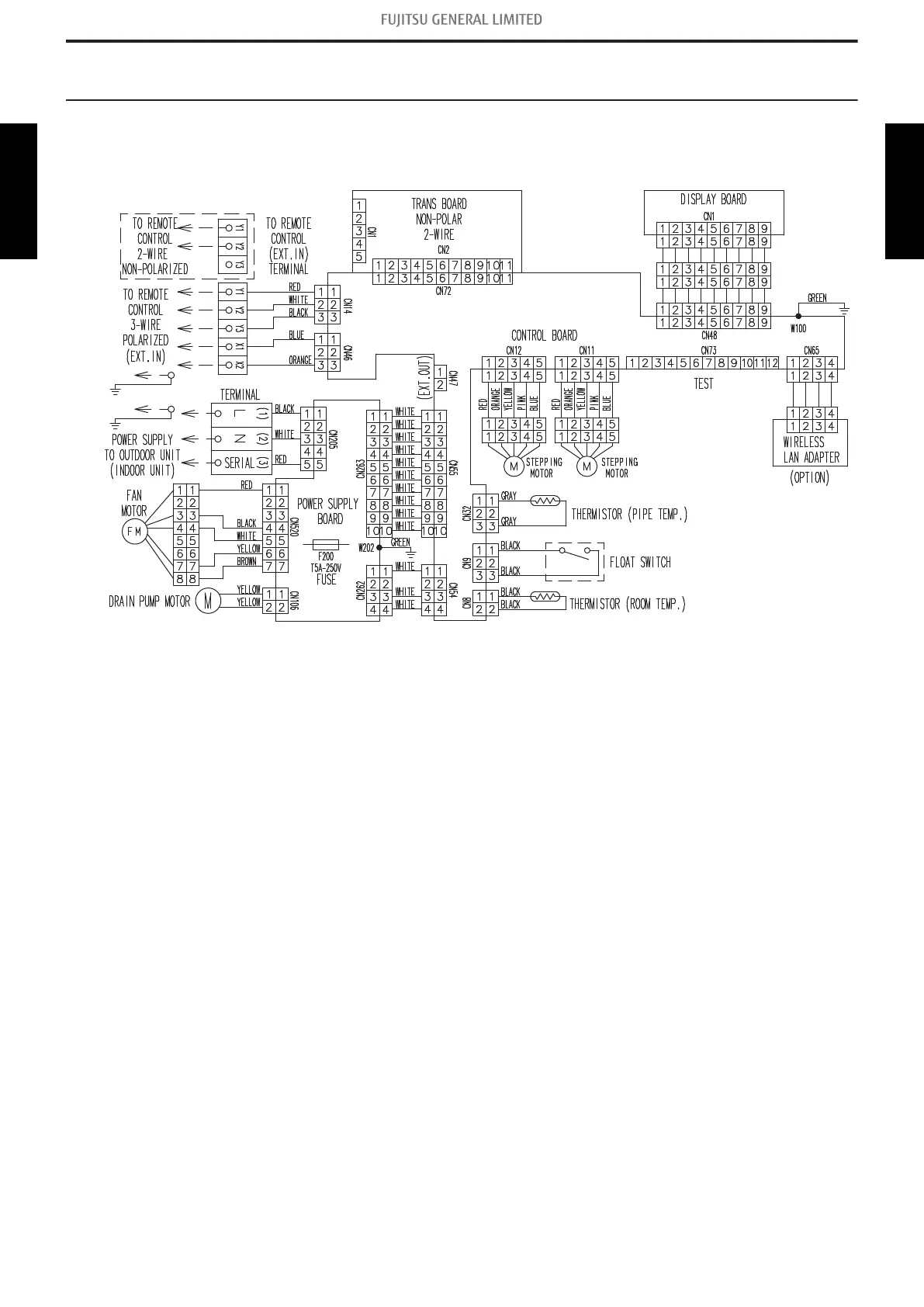

8-1. Compact cassette type

Models: AUXG07–18KVLA

8-1. Compact cassette type - (02-121) - 8. Wiring diagrams

TECHNICAL DATA

AND PARTS LIST

TECHNICAL DATA

AND PARTS LIST
