Page #11 background image
14
13
17
15
16
19
18
12
11
Item no. Part no. Part name Service part
11 9319151007 Emblem ♦
12 9322555021 Front panel assy ♦
13 9322570062 Switch cover assy ♦
14 9322552198 Cabinet right assy ♦
15 9900369064 Terminal 3P ♦
16 9900435042 Terminal 6P ♦
17 9322553027 Motor bracket assy ♦
18 9603601003 Brushless motor ♦
19 9322150004 Propeller fan ♦

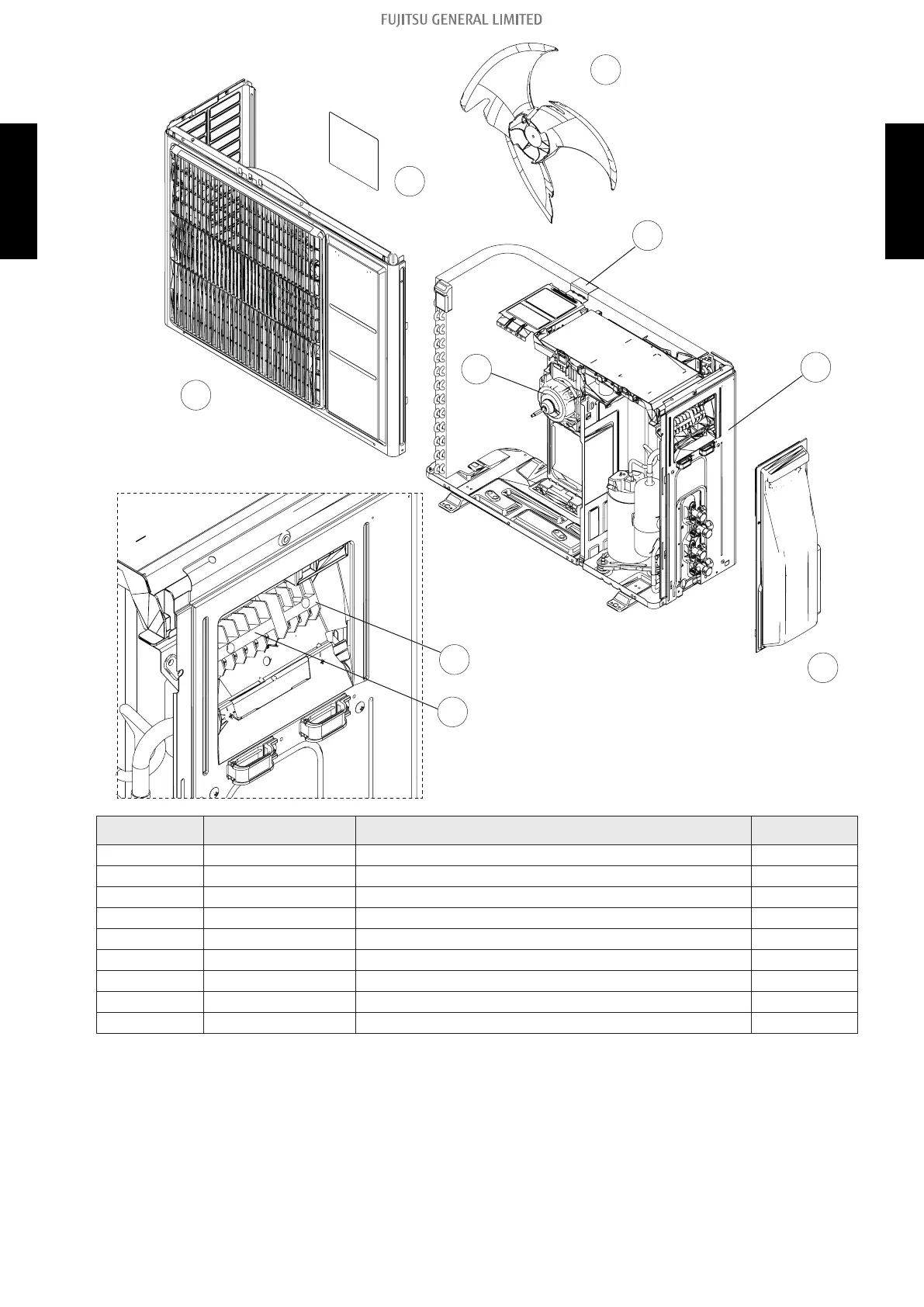

4-2. Model: AOYG18KBTA2 - (02-65) - 4. Outdoor unit parts list
