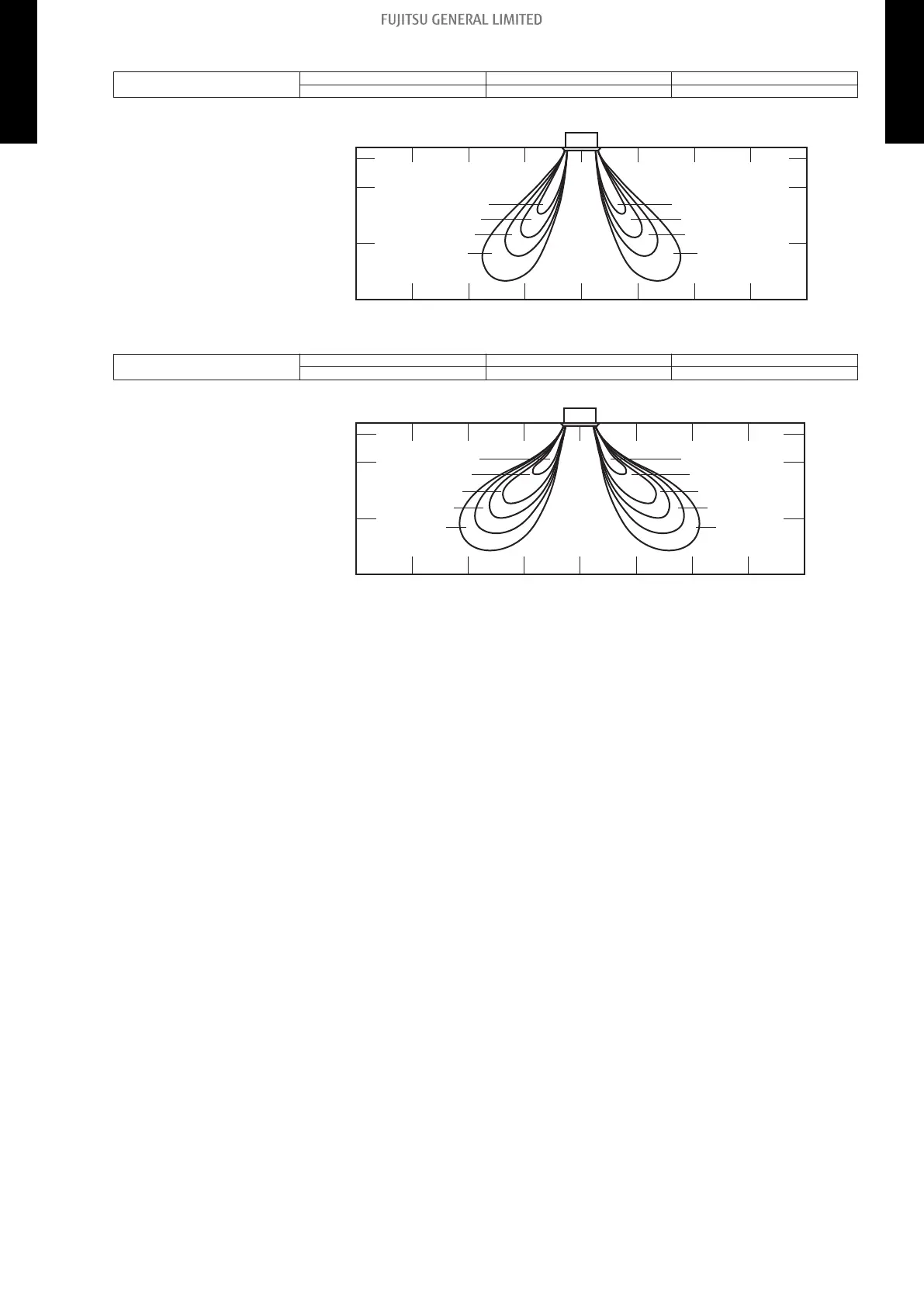

• Air velocity distribution
Measuring conditions
NOTE: Reference data
Fan speed Operation mode Outlet directions
HIGH HEAT 4-way air outlet
Side view
Horizontal louver: Down
1.5 1.5
1.0 1.0
0.5 0.5
0.25 0.25
0
1
2
2.7
(m)
2.5
4
3
2 1 0
1
2
3 4
(m)
Unit : m/s
• Air temperature distribution
Measuring conditions
NOTE: Reference data
Fan speed Operation mode Outlet directions
HIGH HEAT 4-way air outlet
Side view
Horizontal louver: Down
30 30
28 28
26 26
24 24
22 22
0
1
2
2.7
(m)
2.5
4 3
2
1
0
1
2
3 4
(m)
Unit : °C
- 56 -
6-1. Compact cassette type 6. Air velocity and temperature distributions
