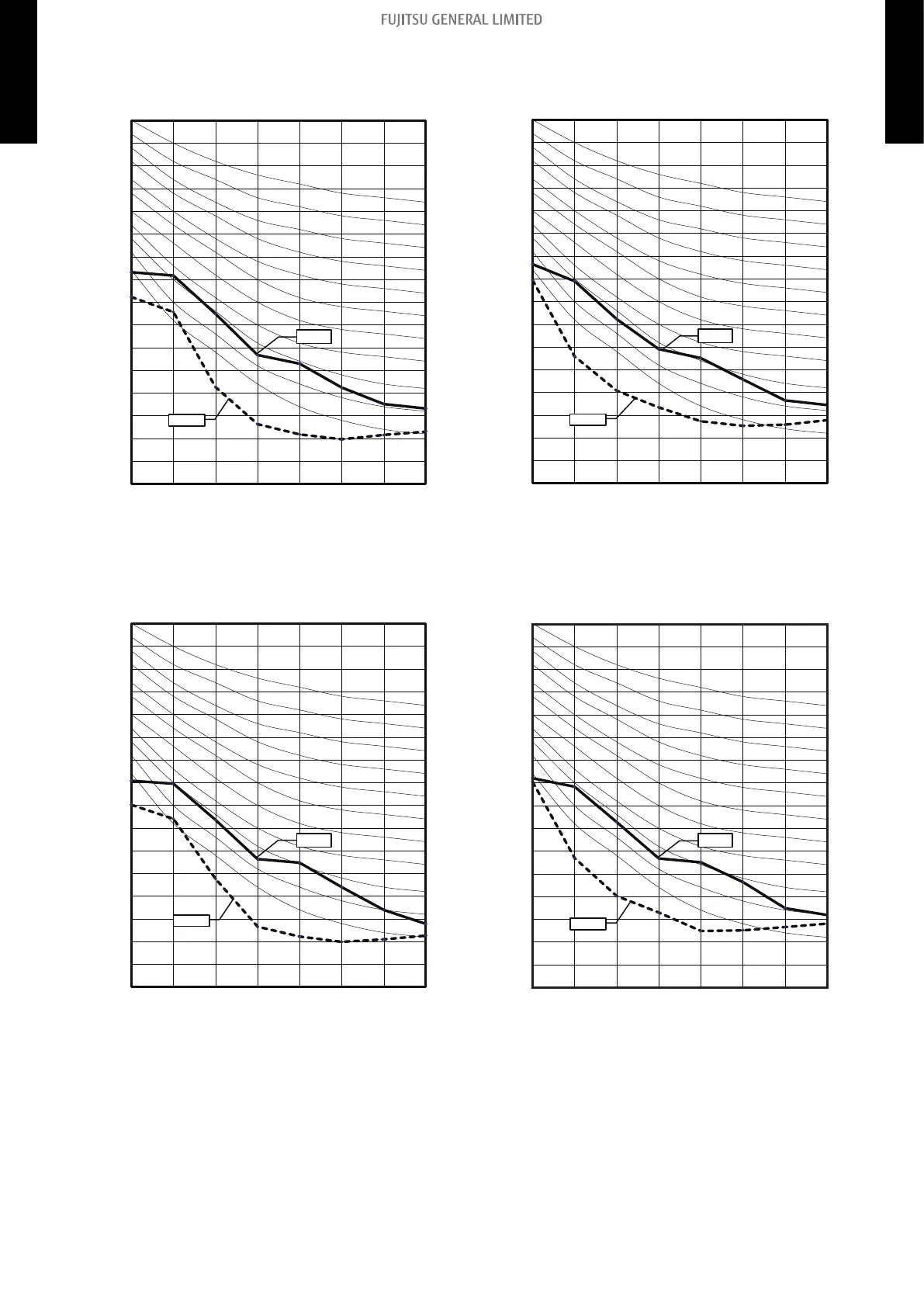

Fujitsu AUXG14KVLA Design & Technical Manual

¢
Model: ARXG12KSLAP
 Cooling
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
Octave band sound pressure level, dB: (0dB=0.00020 μbar)
Octave band center frequency ,Hz
QUIET
HIGH
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
Octave band sound pressure level, dB: (0dB=0.00020 μbar)
Octave band center frequency ,Hz
QUIET
HIGH
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
¢
Model: ARXG14KSLAP
 Cooling
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
Octave band sound pressure level, dB: (0dB=0.00020 μbar)
Octave band center frequency ,Hz
QUIET
HIGH
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
Octave band sound pressure level, dB: (0dB=0.00020 μbar)
Octave band center frequency ,Hz
QUIET
HIGH
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
- 162 -
9-2. Mini duct type
9. Noise level curve
4-5 UNIT MULTI-SPLIT TYPE 4-5 UNIT MULTI-SPLIT TYPE
