Details of function


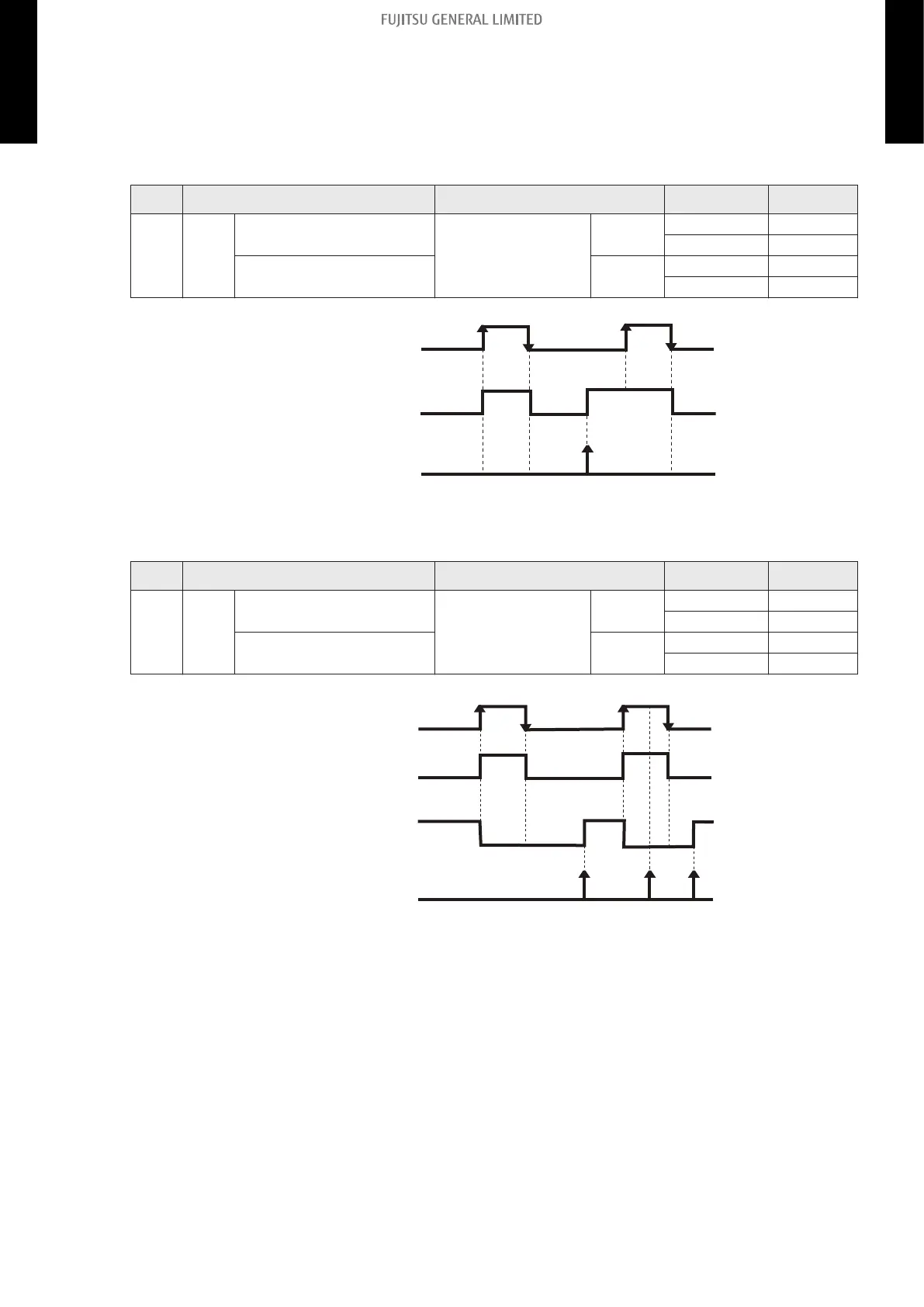

Control input function
• When function setting is "Operation/Stop" mode 1
– In the case of "Edge" input
Mode Function setting External input Input signal Command
0 46-00
—
Input of indoor unit
CN14
Off → On Operation
On → Off Stop
60-00 CN15
Off → On Operation
On → Off Stop
Operation
Stop
Remote controller
On
Off
Indoor unit
On
CN15
• When function setting is "Forced stop" mode
– In the case of "Edge" input
Mode Function setting External input Input signal Command
0 46-02
—
Input of indoor unit
CN14
Off → On Forced stop
On → Off Normal
60-00 CN15
Off → On Forced stop
On → Off Normal
On
Off
Forced stop
Normal
Operation
Stop
Remote controller
On On
Indoor unit
On
CN15
