Fujitsu AUXG14KVLA User Manual

¢ Mini duct type
 Fan speed

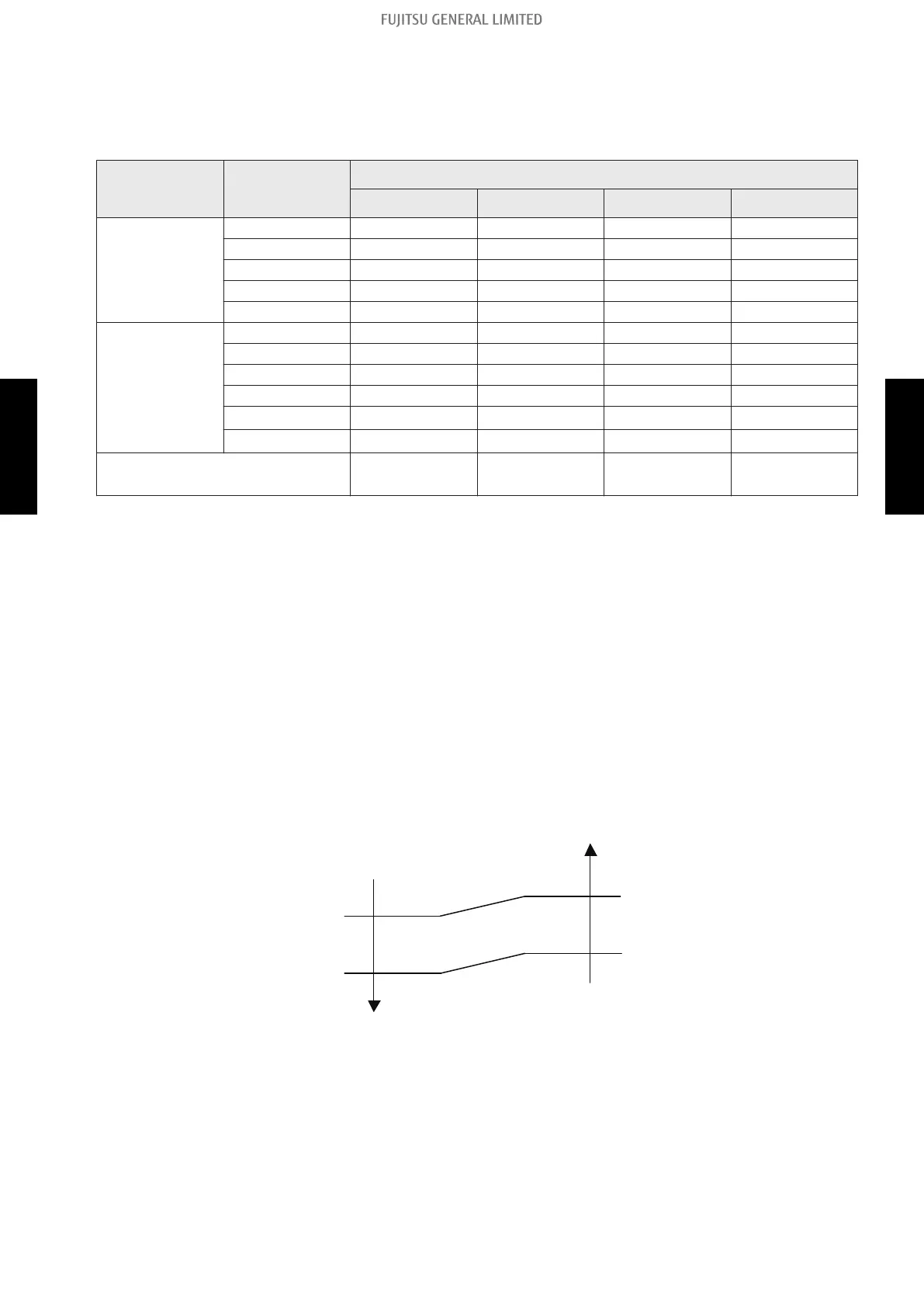

Indoor fan speed is defined as below.
Operation mode Fan mode
Speed (rpm)
ARXG07KSLAP ARXG09KSLAP ARXG12KSLAP ARXG14KSLAP
Heating
HIGH 1,100 1,170 1,240 1,500
MED 890 890 960 1,220
LOW 810 810 850 1,030
QUIET 750 750 730 730
S-LOW 360 360 360 360
Cooling/Fan
HIGH 1,100 1,170 1,240 1,500
MED 890 890 960 1,220
LOW 810 810 850 1,030
QUIET 750 750 730 730
Soft quiet
360*
1
360*
1
360*
1
360*
1
S-LOW
360*
2
360*
2
360*
2
360*
2
Dry
X zone: 750
J zone: 750
X zone: 750
J zone: 750
X zone: 730
J zone: 730
X zone: 730
J zone: 730
*1: Fan mode only
*2: Cooling mode only
 Fan operation
Airflow can be switched in 5 steps such as AUTO, QUIET, LOW, MED, HIGH while indoor unit fan
only runs.
When fan mode is set at AUTO, it operates on MED fan speed.
 Cooling operation
Switch the airflow AUTO, and indoor fan motor will run according to room temperature, as below.
On the other hand, if switched in HIGH—QUIET, indoor motor will run at a constant airflow of COOL
operation modes QUIET, LOW, MED, HIGH as shown in “Fan speed” above.
Airflow change over (Cooling: Auto)
When room
temperature rises
When room
temperature drops
Tr - Ts ≥ 1.5°C
MED mode
LOW mode
LOW mode
1.5
°C > Tr - Ts ≥ 0.5°C
0.5°C > Tr - Ts
Tr - Ts ≥ 2.5°C
2.5
°C > Tr - Ts ≥ 1.5°C
1.5°C > Tr - Ts
 Dry operation
During dry operation, fan speed setting can not be changed as shown in “Fan speed” above.
3-1. Indoor fan control
- (04-32) - 3. Fan control
