Fujitsu AUXG18KVLA User Manual

¢
Triple type

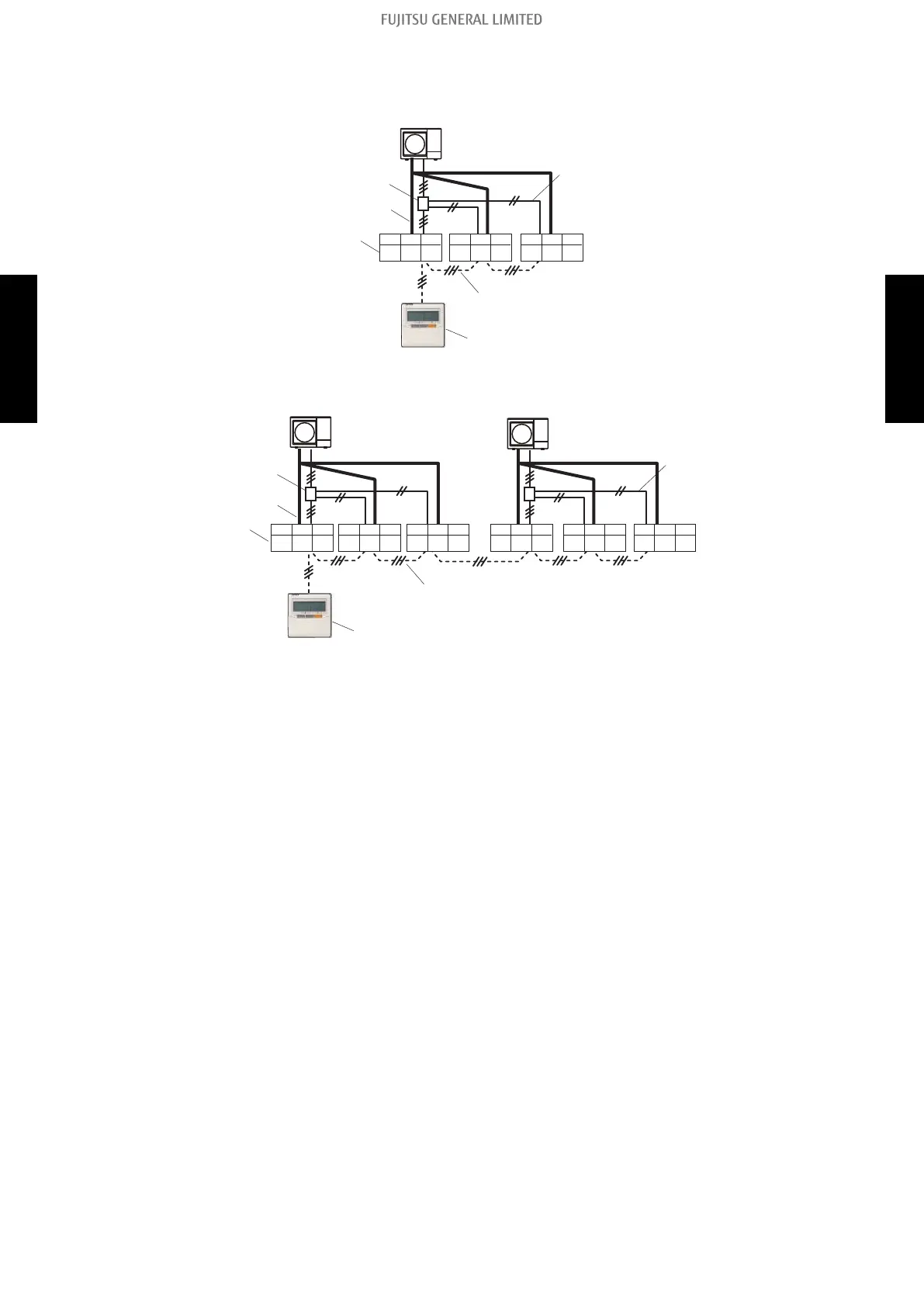

• Connection example 1
Refrigerant pipe
Indoor unit
Outdoor unit
Connection cable
Remote controller cable
<Triple>
SetASetB SetC
(00)(00)(00)
SetASetB SetC
01 01
(00)
SetASetB SetC
01 02
(00)
Wired remote controller
Junction box
• Connection example 2
Outdoor unit
Indoor unit
Refrigerant pipe
Remote controller cable
<Triple> <Triple>
SetASetB SetC
(00)(00)(00)
SetASetB SetC
(00)
01 03
SetASetB SetC
0101 04
SetASetB SetC
0101 05
SetASetB SetC
01 01
(00)
SetASetB SetC
01 02
(00)
Wired remote controller
Connection cable
Junction box
NOTE: (00) is factory setting.
- 127 -
5-1. Indoor unit setting 5. System setting
SYSTEM DESIGN SYSTEM DESIGN
