4. Wiring diagrams

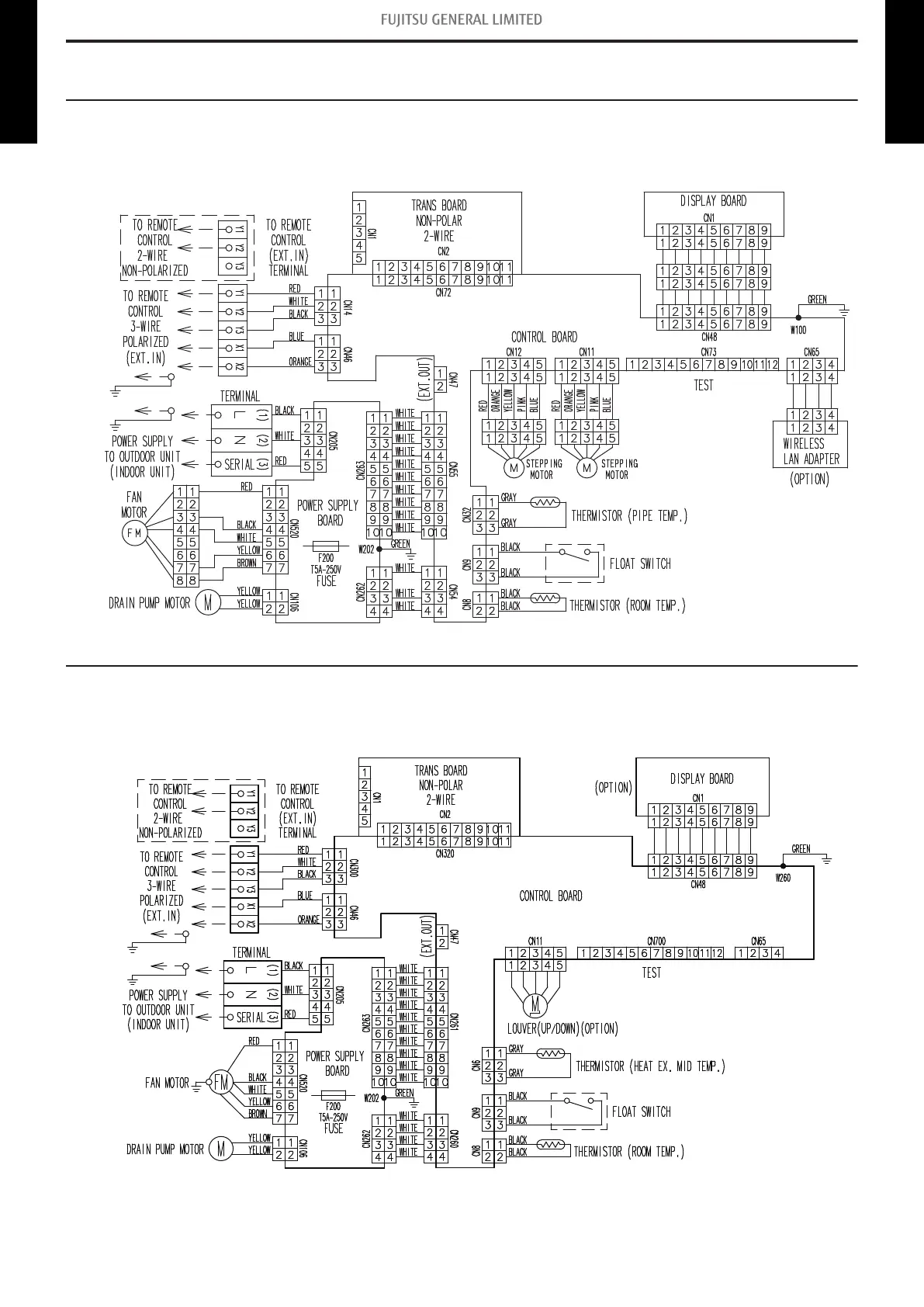

4-1. Compact cassette type
¢
Models: AUXG18KVLA, AUXG22KVLA, and AUXG24KVLA
4-2. Slim duct type
¢
Model: ARXG18KLLAP
WLAN adapter,
Converter etc.
(Option)
- 12 -
4-1. Compact cassette type 4. Wiring diagrams
INDOOR UNITS SIMUL. MULTI-SPLIT INDOOR UNITS SIMUL. MULTI-SPLIT
