Evaporator

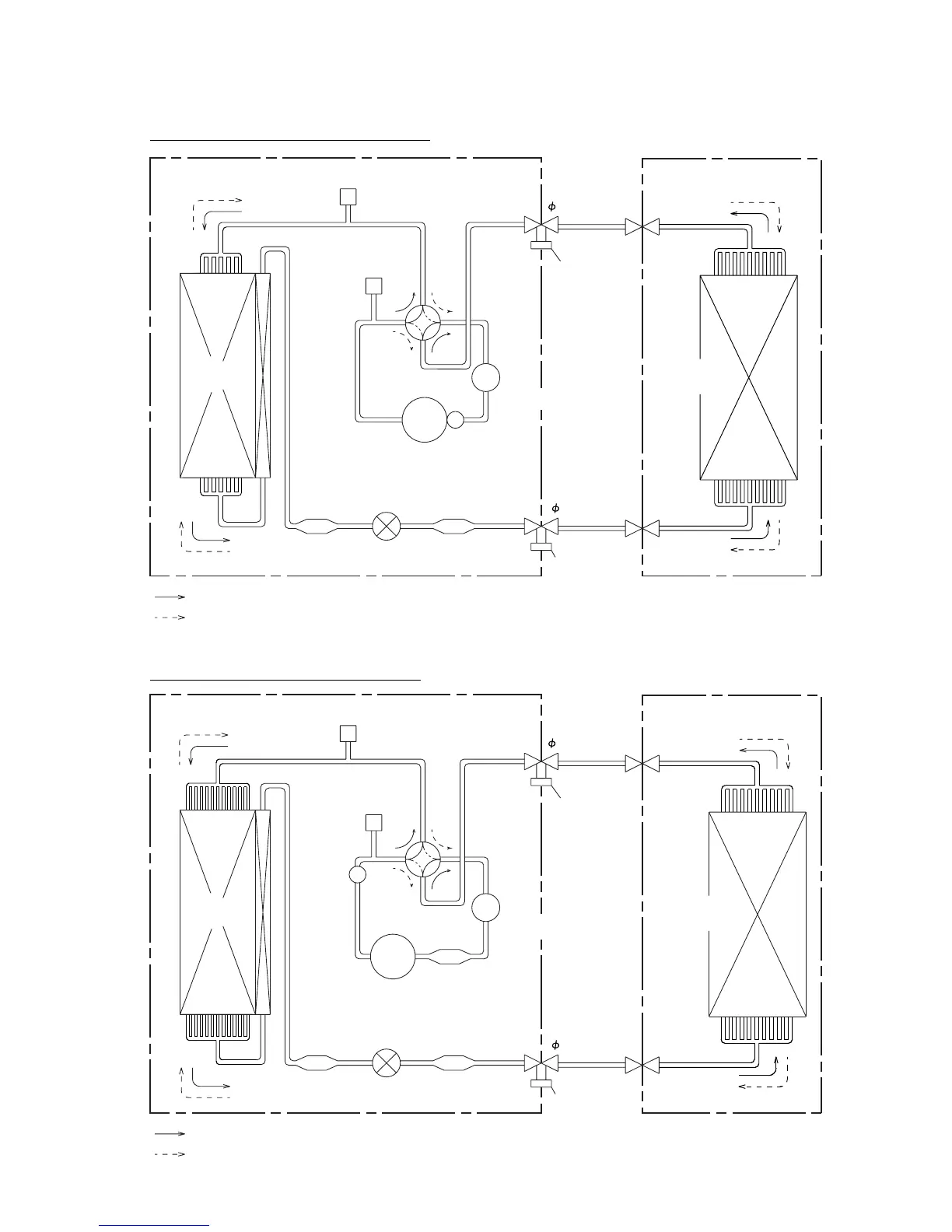

REFRIGERANT SYSTEM DIAGRAM
OUTDOOR UNIT
Pressure
Check Valve
Condenser
4-way
Valve
High Pressure
Switch
High Pressure
Switch
Accumulator
Accumulator
Compressor
Expansion
Valve
Refrigerant Pipe
9.52mm (3/8")
Charging Valve
Charging
Valve
Refrigerant Pipe
15.88mm (5/8")
INDOOR UNIT
Strainer
Strainer
: COOL
: HEAT
Models :
OUTDOOR UNIT
Pressure
Check Valve
Condenser
4-way
Valve
Muffler
Compressor
Expansion
Valve
Refrigerant Pipe
9.52mm (3/8")
Charging Valve
Evaporator
Charging
Valve
Refrigerant Pipe
15.88mm (5/8")
INDOOR UNIT
Strainer
Strainer
Strainer
: COOL
: HEAT
Models : AUY45LUAS / AOY45LJBYL
2005.06.23 6
AUY30LUAS / AOY30LMAWL
AUY36LUAS / AOY36LMAWL
