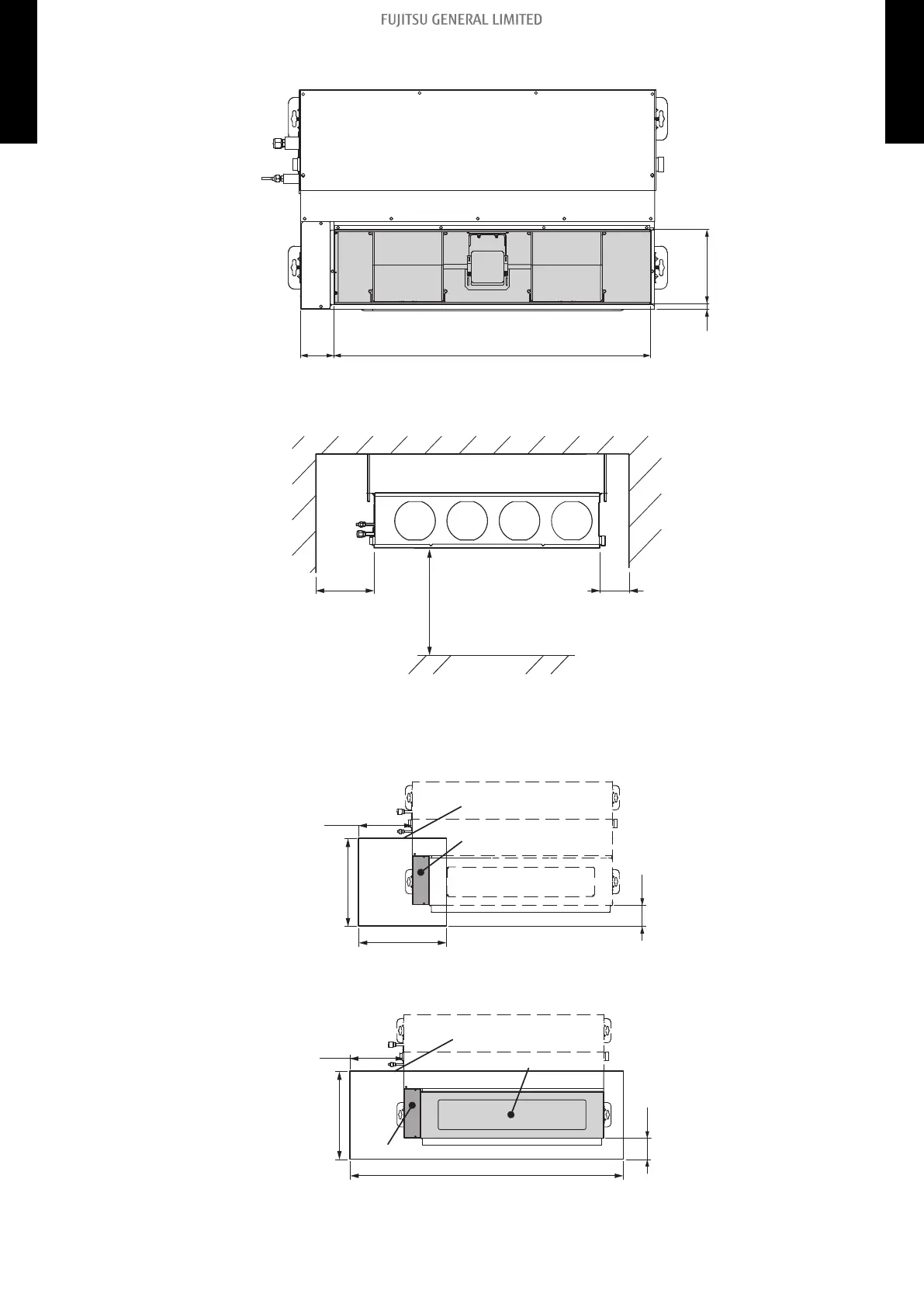

Bottom air intake hole
Unit: mm
108
1,015
16
240
¢
Ins
ta
lla
tio
n
spa
ce
re
qui
re
men
t
Unit: mm
150 or more
300 or more
Floor
2,500 or more
(When no ceiling)
¢
Mai
nt
ena
nce
s
pac
e r
eq
uir
em
ent
•
It shall be possible to install and remove the control box.
Unit: mm
Service access
Control box
300 or more
500 or more
500 or more
100
•
It shall be possible to install and remove the control box, fan units and filter.
Unit: mm
Service access
Intake panel
Control box
300 or more
500 or more
1,550 or more
100
- 11 -
3-3. Duct type
3. Dimensions
INDOOR UNITS
SIMUL. MULTI-SPLIT
INDOOR UNITS
SIMUL. MULTI-SPLIT
18
20
Table of Contents
Table of Contents
3
Part 1. INDOOR UNIT
9
Model Lineup
10
Specifications
11
Compact Cassette Type
11
Slim Duct Type
12
Duct Type
13
Dimensions
14
Compact Cassette Type
14
Slim Duct Type
16
Duct Type
18
Wiring Diagrams
20
Compact Cassette Type
20
Slim Duct Type
20
Duct Type
21
Air Velocity and Temperature Distributions
22
Compact Cassette Type
22
Slim Duct Type
28
Fan Performance
30
Slim Duct Type
30
Duct Type
32
Airflow
44
Compact Cassette Type
44
Slim Duct Type
50
Duct Type
51
Noise Level Curve
52
Compact Cassette Type
52
Slim Duct Type
53
Duct Type
54
Sound Level Check Point
55
Electrical Characteristics
57
Safety Devices
58
Accessories
59
11-1.Compact Cassette Type
59
11-2.Slim Duct Type
60
11-3.Duct Type
61
Part 2. OUTDOOR UNIT
63
Specifications
64
Dimensions
67
Model: AOYG36KRTA
67
Models: AOYG45KRTA and AOYG54KRTA
68
Installation Space
69
Models: AOYG36KRTA, AOYG45KRTA, and AOYG54KRTA
69
Refrigerant Circuit
72
Models: AOYG36KRTA, AOYG45KRTA, and AOYG54KRTA
72
Wiring Diagrams
73
Model: AOYG36KRTA
73
Models: AOYG45KRTA and AOYG54KRTA
73
Capacity Table
74
Model: AOYG36KRTA
74
Model: AOYG45KRTA
76
Model: AOYG54KRTA
78
Capacity Compensation Rate for Pipe Length and Height Difference
82
Model: AOYG36KRTA
82
Models: AOYG45KRTA and AOYG54KRTA
83
Additional Charge Calculation
84
Model: AOYG36KRTA
84
Models: AOYG45KRTA and AOYG54KRTA
84
Airflow
85
Model: AOYG36KRTA
85
Models: AOYG45KRTA and AOYG54KRTA
85
Operation Noise (Sound Pressure)
86
10-1.Noise Level Curve
86
10-2.Sound Level Check Point
87
Electrical Characteristics
88
Safety Devices
89
Accessories
90
13-1.Models: AOYG36KRTA, AOYG45KRTA, and AOYG54KRTA
90
Part 3. SYSTEM DESIGN
91
Installation Precautions
92
Indoor Unit Installation Precautions
92
Outdoor Unit Installation Precautions
95
Pipe Design
96
Important Items When Using Refrigerant (R32)
96
Piping Limitation
97
Pipe Size
102
Selection of Pipe Heat Insulating Material
104
Additional Charge Calculation
105
Pipe Installation
109
Caution of Piping
109
Piping to Outdoor Unit
111
Pipe Connection
112
Branch Pipes
115
Wiring Design
122
Precaution for Electrical Wiring
122
Power Supply Cable Wiring
124
Control Patterns
130
System Setting
134
Indoor Unit Setting
134
External Input and Output
137
Indoor Unit
137
Outdoor Unit
143
Remote Controller (Optional Part)
147
Wireless Remote Controller (UTY-LNTY)
147
IR Receiver Kit with Wireless Remote Controller (UTY-LBTYM)
149
Wired Remote Controller (UTY-RNNYM)
152
Wired Remote Controller (UTY-RVNYM)
155
Simple Remote Controller (UTY-RSNYM)
162
Function Settings
165
Outdoor Unit
165
Compact Cassette Type (Setting by DIP Switch)
169
Slim Duct Type (Setting by DIP Switch)
171
Duct Type (Setting by DIP Switch)
173
Indoor Unit (Setting by Wireless Remote Controller)
175
Indoor Unit (Setting by Wired Remote Controller)
181
Indoor Unit (Setting by Simple Remote Controller)
187
Function Details
191
Wired Remote Controller (UTY-RNNYM)
197
Wired Remote Controller (UTY-RVNYM)
199
Simple Remote Controller (UTY-RSNYM)
200
Check and Test
201
Test Run
201
Error Code
203
Pump down
204
Optional Parts Installation
206
10-1.Drain Pump Unit for Duct Type (UTZ-PX1NBA)
206
10-2.Fresh Air Intake Kit for Compact Cassette Type (UTZ-VXAA)
209
10-3.Auto Louver Grille Kit (UTD-GXTB-W)
218
Part 4. OPTIONAL PARTS
221
Branch Pipes
222
Model: UTP-SX236A
222
Model: UTP-SX354A
223
Controllers
224
Lineup
224
Parts
224
Cassette Grille
226
Parts
226
Others
227
Lineup
227
Parts (for Indoor Unit)
227
Parts (for Outdoor Unit)
228
