En-4
OPERATION
* Press the START/STOP button to start the air conditioner, and then proceed as
follows.

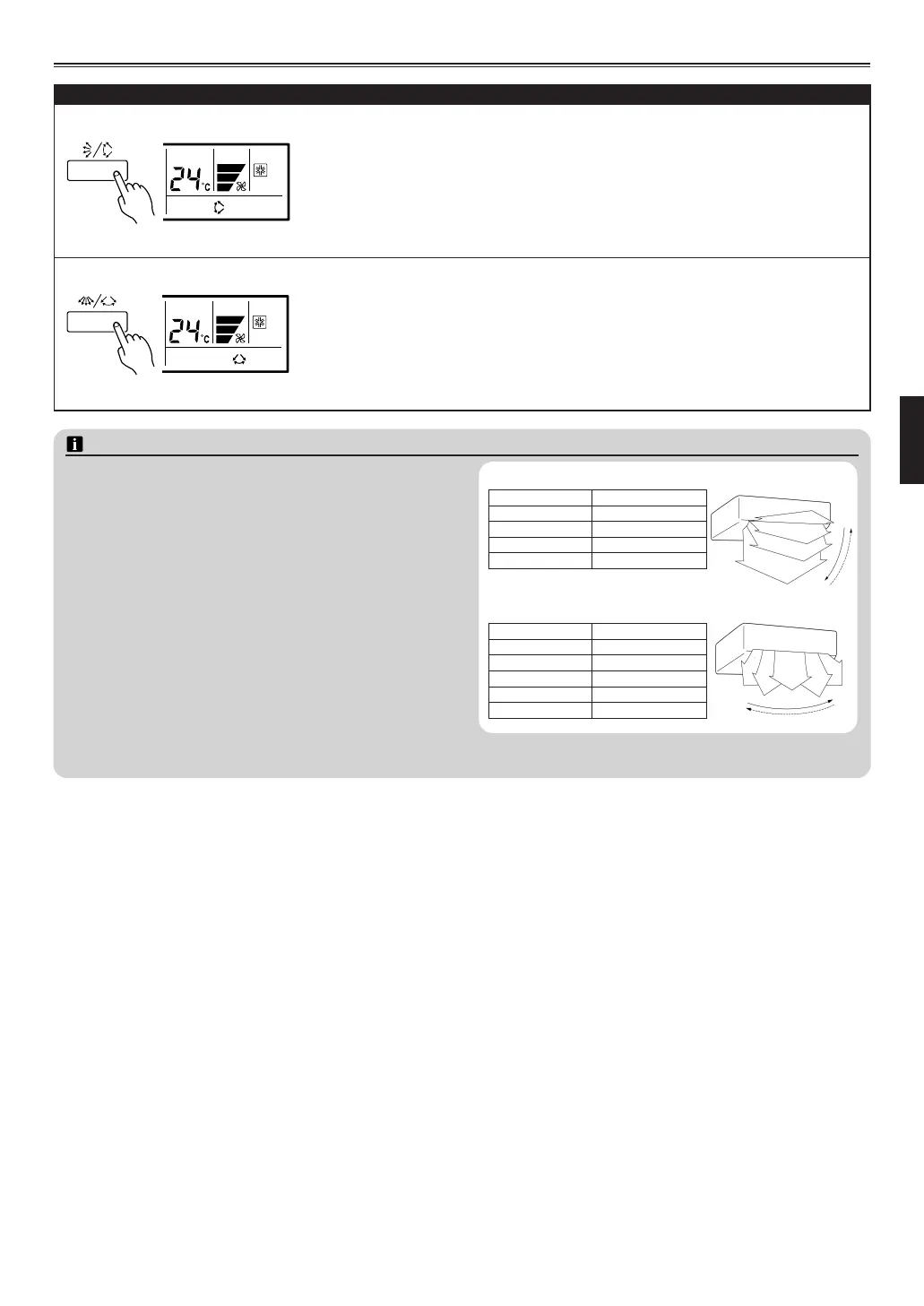

Press the VERTICAL AIRFLOW DIRECTION button to adjust the direction of the verti-
cal airflow. To set the swing operation, press the VERTICAL AIRFLOW DIRECTION
button for more than 2 seconds. (Stop the setting by pressing for more than 2 sec-
onds again.)
* Press the START/STOP button to start the air conditioner, and then proceed as
follows.
Press the HORIZONTAL AIRFLOW DIRECTION button to adjust the direction of the
horizontal airflow. To set the swing operation, press the HORIZONTAL AIRFLOW
DIRECTION button for more than 2 seconds. (Stop the setting by pressing for more
than 2 seconds again.)
●
Horizontal air direction adjustment (Swing operation)
NOTES
(1) • Always use the remote controller’s AIRFLOW DIRECTION
button. Attempting to move the air direction louvers
manually could result in improper operation; in this case,
stop operation and restart.
The flaps should begin to operate properly again.
• During cooling operation, do not set the vertical airflow
direction louver in the downward position for an ex-
tended period. Water vapor may condense near the out-
let port and drops of water may drip from the air condi-
tioner.
(2) • The range of swing is relative to the currently set airflow
direction.
• The SWING operation may stop temporarily when the
air conditioner’s fan is not operating, or when operating
at very low speeds.
(3) The swing operation is not available depending on the
model. Please refer to the operating manual for the in-
door unit.
<Vertical airflow swing operation>
Airflow direction Range of swing
11 to 3
22 to 4
32 to 4
41 to 4 (All range)
1
2
3
4
<Horizontal airflow swing operation>
Airflow direction Range of swing
11 to 5 (All range)
21 to 3
32 to 4
43 to 5
51 to 5 (All range)
ex. Vertical swing operation
ex. Horizontal swing operation
To set the operation mode
●
Vertical air direction adjustment (Swing operation)
1
2
3
4
5
IMPORTANT: Depending on the indoor unit model, the actual adjustment ranges of the airflow direction may be different from
the ranges listed in the tables above. For more information, refer to the operating manual of the indoor unit.
