Fujitsu UTP-PY02A User Manual

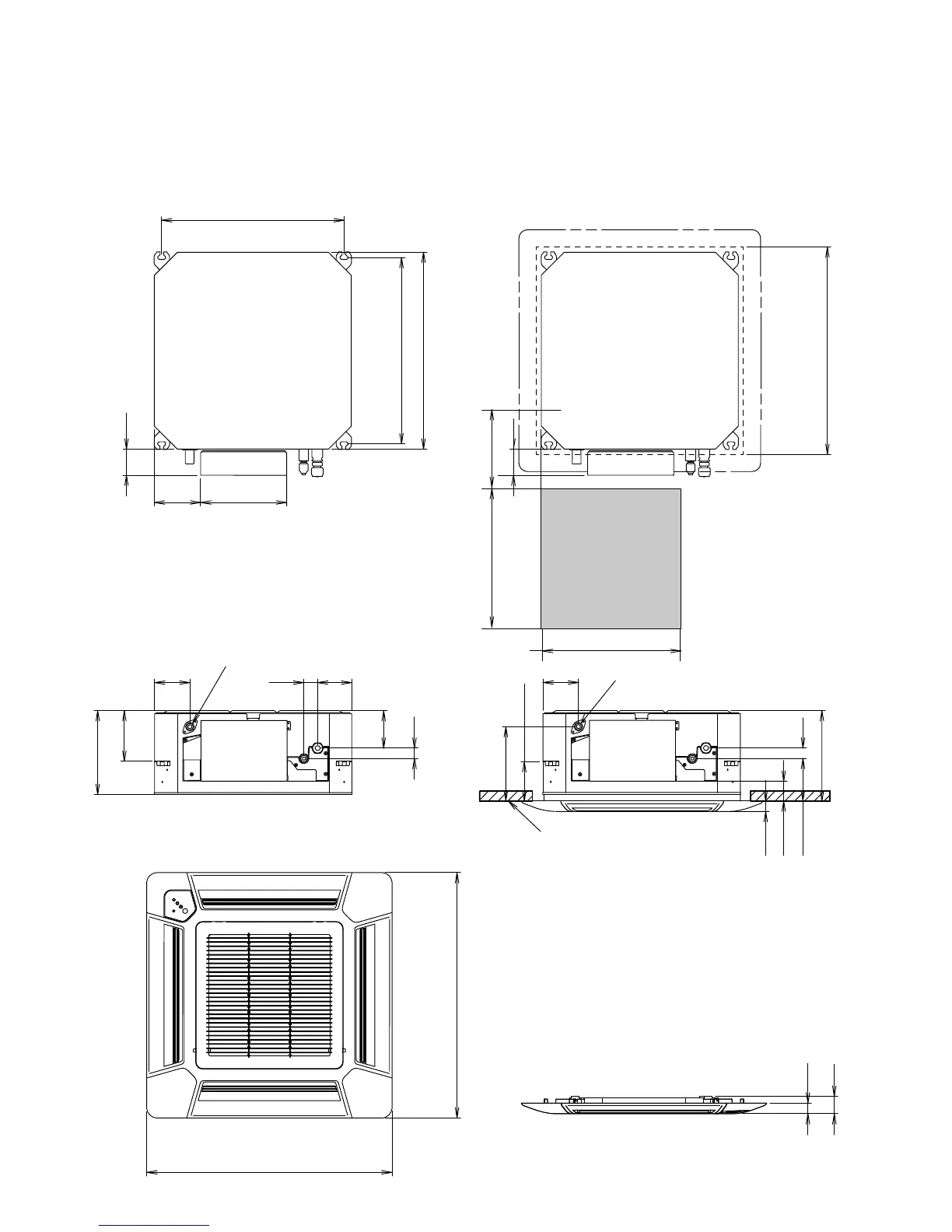

INDOOR UNIT
COMPACT CASSETTE
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA
AUYG14LVLA
AUYG18LVLA
2010.09.15 13
Drain hose I.D. 3/4 in. , O.D. 1-1/16 in.
Unit : mm
530 : Hanging bolt position
102
135 250
700
700
75
30
30
262
540 : Hanging bolt position
Ceiling openings
• Decoration panel mounting state
Top view
150 to 200Min. 450
Min. 450
Maintenance space
Side view
215
123
58
114
146
108
102
245
30
40 99
Drain port
Ceiling
Drain port
Be sure to leave
maintenance space
for future service
at the designated
position.
Bottom view
30
49
Side view
