Parts number
Description
Ref
642010.10.29
9
5 Right Panel Sub Assy
8 Protective Net (Left)
4 Pipe Cover Front
10
11
--
6 Left Panel
3 Service Panel Sub Assy
1 Top Panel Sub Assy
2 Front Panel Sub Assy
7 Protective Net (Rear)
9379420006
9379396004
Motor DC Brushless 9603013011
Propeller Fan 9379414005
Motor Bracket Sub Assy 9379429009
9378861015
9379431002
9379424004
9379416009
9379418003
9379404006
Rear Emblem 9380114000

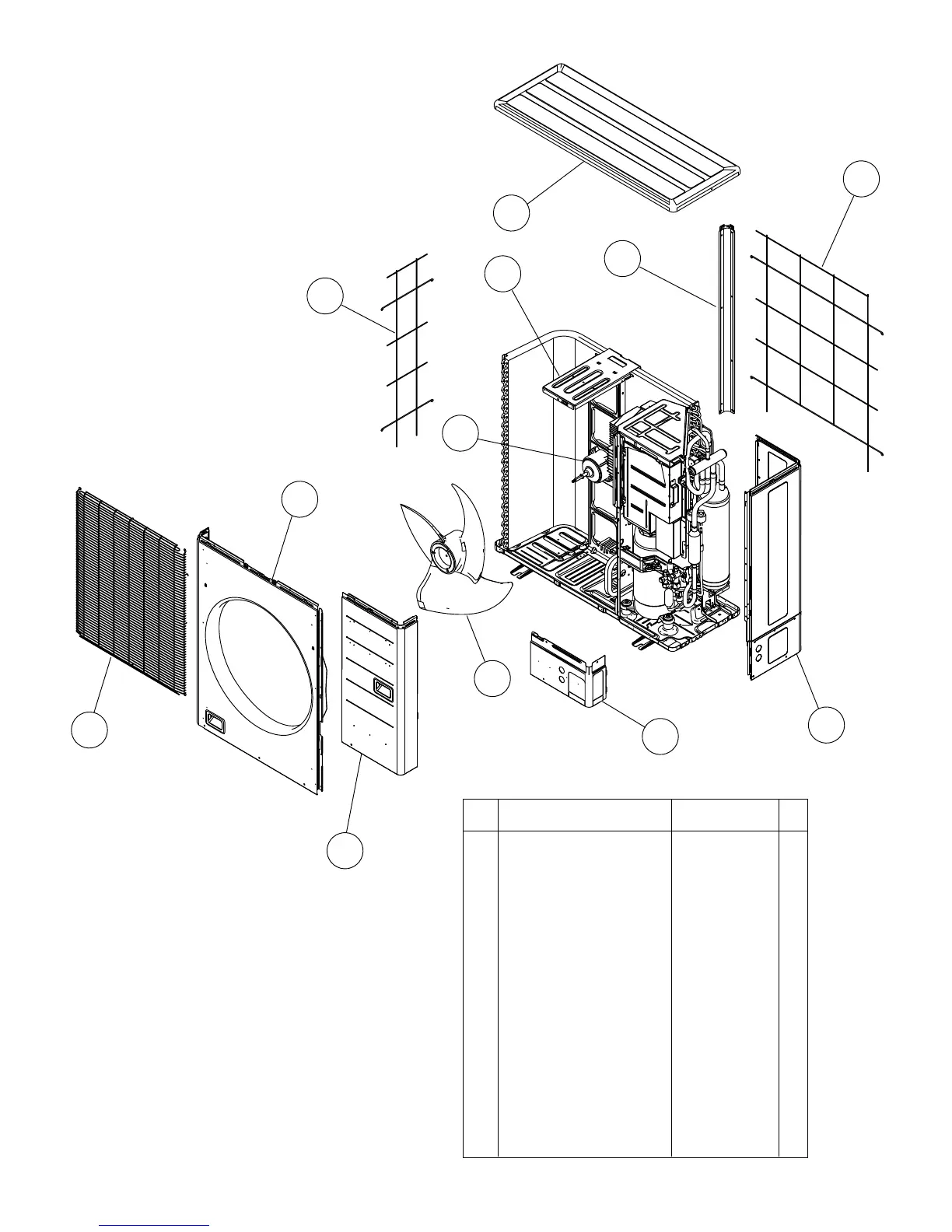

OUTDOOR UNIT
AOYG45LAT8
PARTS
