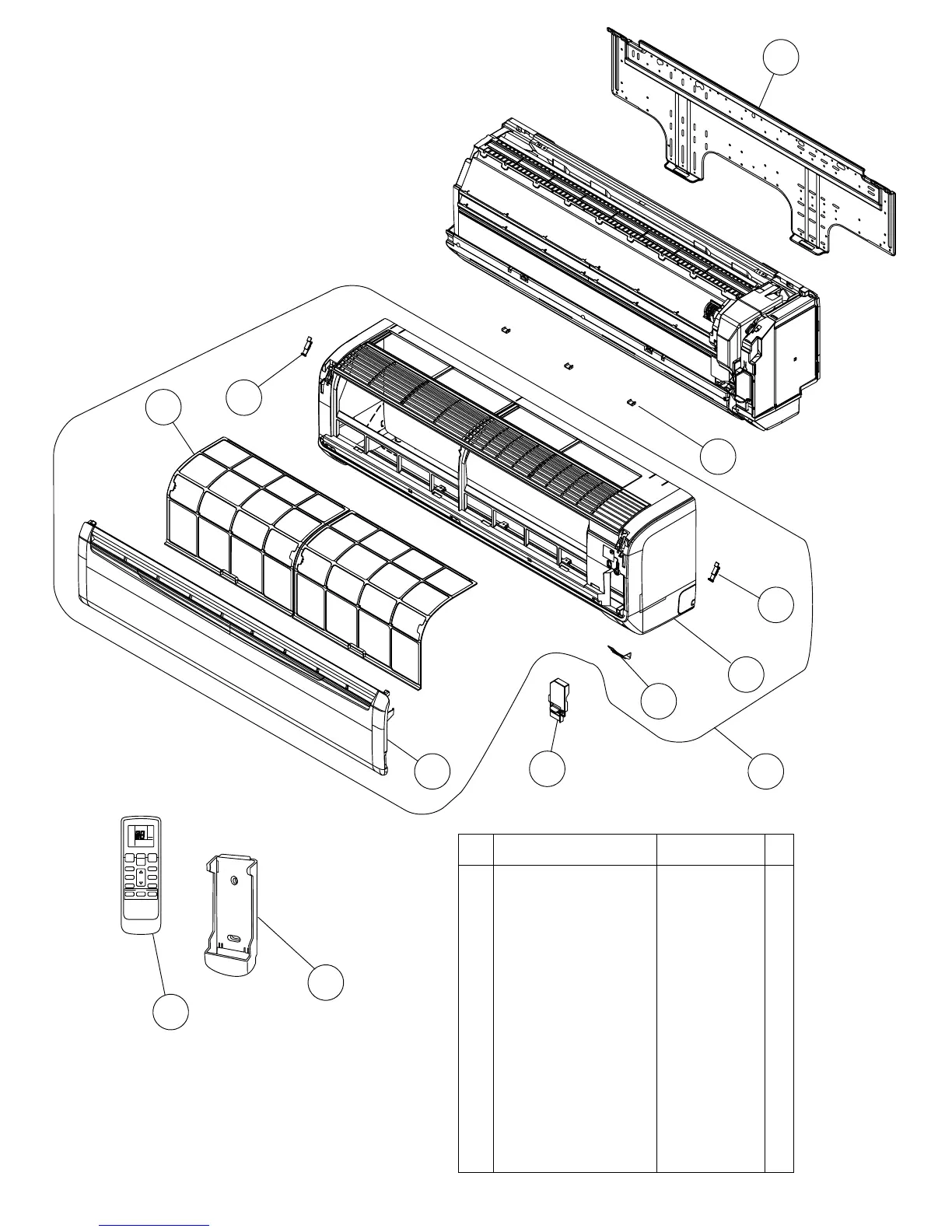

INDOOR UNIT
WALL MOUNTED
ASYG18LFCA
ASYG24LFCA
752010.10.12
9 Bracket Panel
2 Front Panel
Front Panel Total Assy1
Wire Clamper7
Cap (Screw)8
Air Filter4
Intake Grille Assy
Parts numberDescriptionRef
9315023018
9314991080
9318738001
9315015013
9309002050
9315014016
3
Clamper Grille6
5 Receiver Window
Air Clean Filter Assy
9385985049
9306755010
9315010018
9315212016
10 Remote Control 9379219037
11
--
Remote Control Holder 9305642045
9
8
7
5
2
4
6
6
3
1
10
11
