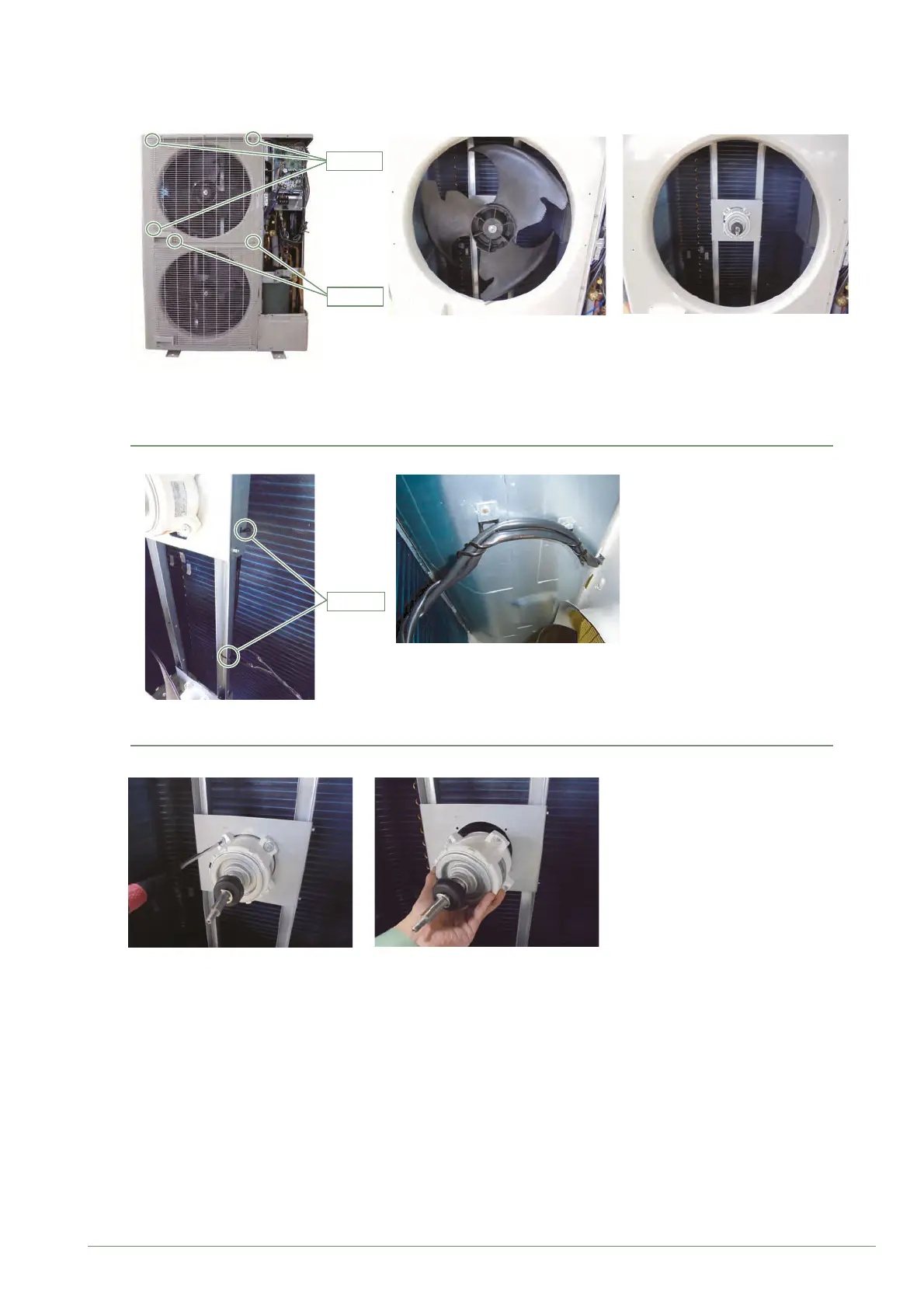

Loose the wire clamp, and
remove the lead wires.
Cut the binders.(2 places)
Binders
Note at the installation.
Motor wire is underside of Fan motor.
Remove the 4 mounting screws.
Remove the FAN MOTOR.
Remove the 5 mounting screws.
Remove the nut.
And remove the PROPELLER FAN
Remove the FAN GUARD
by sliding upward.
Note at the installation.
Insert propeller Fan and Moter shaft reference
D cutting position.
And the tightening torque at the installation.
Tightening torque is from 10 to 12 N.m.
Screws
Screws
▼
Fan motor removal
Waterstage / Maintenance Manual / 2105 - EN
