Fulbat Fulload F4 User Manual

4
Use 6V Normal, 12V Lithium and REPAIR (respectively need to
press and hold the mode button for 3 seconds to switch).
CHARGING INSTRUCTIONS
STEP 1 - Pre charge check & electrolyte level check
• Check the Battery Electrolyte level (Not required on
Sealed or Maintenance Free Batteries). If necessary,
remove the vent caps and add distilled water so the levels
are halfway between the upper and lower ll lines.
• Check the Voltage Output Switch on the charger
and make sure it’s on the correct voltage.
STEP 2 - Connecting the battery charger to your battery
• Select the plug needed (eyelets or alligator clips) and connect
it to the charger.
• Connect the Red lead from the charger to the positive (+)
battery terminal.
• Connect the Black lead from the charger to the negative (-)
battery terminal.
STEP 3 - Connect the battery charger to mains power
(240Vac)
• Connect the battery charger to a 240Vac Mains Powered
socket.
• Turn on the 240Vac Mains Power and select the battery mode
to start the charging process. Before choosing, please read
the charging mode to understand the differences between
each mode.
STEP 4 - Disconnecting the battery charger from battery
once the charge is nished
• Switch OFF and Remove the AC Power Socket from the outlet.
• Remove the Black lead and then the Red lead.
• Check electrolyte levels if possible (As they may need topping
up with distilled water after charging).
THE CHARGING PROCESS
The charging process is as follows:
• Conrm the battery voltage and chemical properties.
• The AC power plug has been inserted into the power socket,
press the mode button to switch to the charging mode suitable
for the battery voltage and chemical properties.
• The charger will start in standby mode with a green LED indi-
cation. In this state, the charger does not provide any power.
• Conrm that the positive and negative terminals of the battery
and the terminal connecting wire or clip wire are correctly
connected.
• The mode LED will light up the selected charging mode, and the
charging LED display will light up (depending on the health of
the battery), indicating that the charging process has started.

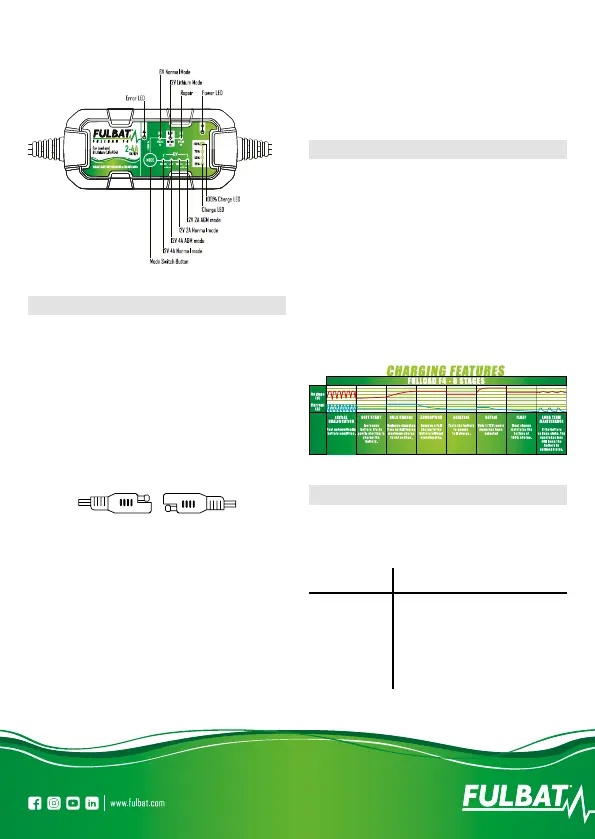

LED STATUS INDICATOR TABLE
The charger has some charging LEDs. The charging LED indicates
the charging status of the connected battery.
Please refer to the following instructions:
LED
Explanation
Red LED ashes
1. When the DC output is connected in
reverse, the red error LED ashes once
and goes off once.
2. When the AC output is short-circuited,
the red error LED ashes twice and goes
out once.
