Full Boar H6038FB - Page 42

LOG LIFT TABEL ATTACHMENT ( SOLD SEPARATELY) PARTS LIST
No. Description Qty
1# Ejector Rod 1
2# Nut M10 1
3# Round Head Bolt M10x40 1
4# Bolt M6x20 3
5# Flat Washer 6 5
6# Spring Washer 6 2
7# Cable Fixing Plate 1
8# Bolt M6x25 2
9# Nut M6 3
10# Cable 1
11# Handle 1
12# Circlips 20 1
13# Hexagon Socket Set Screw M6x10 1
14# Spring 1
15# Handle Grip 1
16# Nut M6 1
17# Round Head Nut M6 1
18# Cable Holder 1
19# Connecting Plate 1
20# Bolt M10x20 4
No. Description Qty
21# Spring Washer 10 4
22# Flat Washer 10 10
23# Log Lift Table Attachment-side Table 1
24# D type Pin 10x60 2
25# Log Lift Table Attachment-main Table 1
26# Support Leg-left 1
27# Support Leg-right 1
28# Bolt M10x70 3
29# Nut M10 3
30# Rotating Shaft 1
31# Long Bushing 1
32# Short Bushing 1
33# Bolt M8x20 1
34# Spring Washer 8 3
35# Flat Washer 8 1
36# Swing Arm 1
37# Bushing 25x20x8 2
38# Flat Washer 20 2
39# Cotter Pin 5x35 2
40# Bending Plate 1
41# Slide-rail 1
42# Hex Socket Head Cap Screw M8x16 2

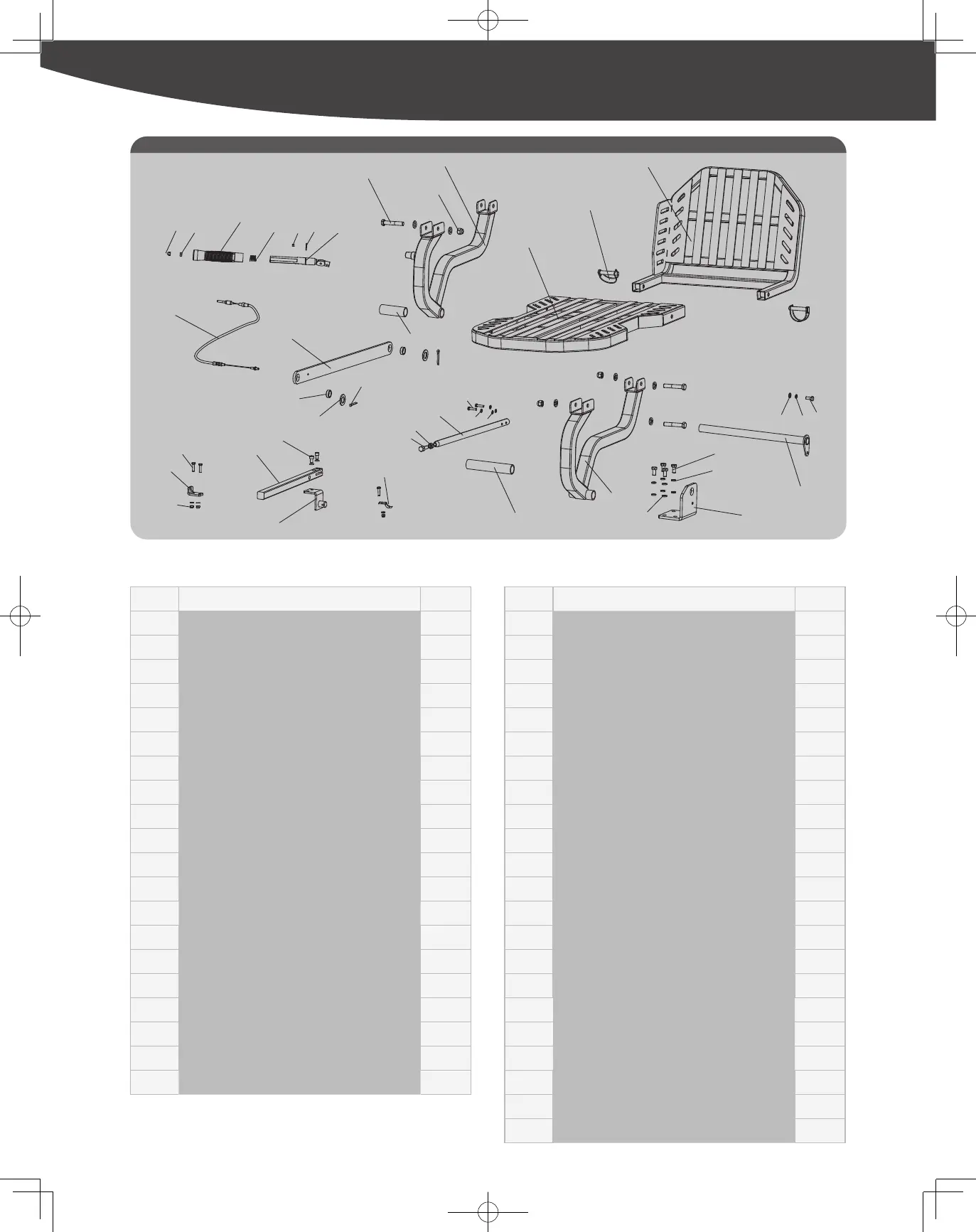

# Log Lift Table Attachment ( Sold Separately)
42#
41#
40#
7#
8#
9#
31#
27#
30#
33#
35#
34#
20#
21#
19#
22#
18#
10#
25#
24#
23#
32#
28#
26#
29#
17#
16#
15#
14#
13#
12#
11#
2#
1#
4#
5#
6#
3#
38#
37#
36#
39#
41
|
Parts Diagram & Parts List
