FULTON ModSync SE User Manual

© Fulton Group N.A., Inc. 2021
3-14
OPERATION ModSyncSE-User-Manual-211020 SECTION 3
! WARNING
This manual is provided as a
guide to the correct operation and
maintenance of your equipment,
and should be read in its entirety and
be made permanently available to
the sta responsible for equipment
operation. It should not, however
be considered as a complete code
of practice, nor should it replace
existing codes or standards which
may be applicable. Fulton reserves
the right to change any part of
this installation, operation and
maintenance manual without notice.
Do not install, operate, service,
or repair any component of this
equipment unless you are qualied
and fully understand all requirements
and procedures.
All information in this manual is for
reference and guidance purposes,
and does not substitute for required
professional training, conduct,
and strict adherence to applicable
jurisdictional /professional codes or
regulations
 Hardware Configuration
The Hardware Conguration screens allows the user to manually congure
digital and analog inputs and outputs. Most Optional Functions selected on
the conguration screen will need to have their Input/Output congured or the
ModSync® will not know the correct hardware points to use.

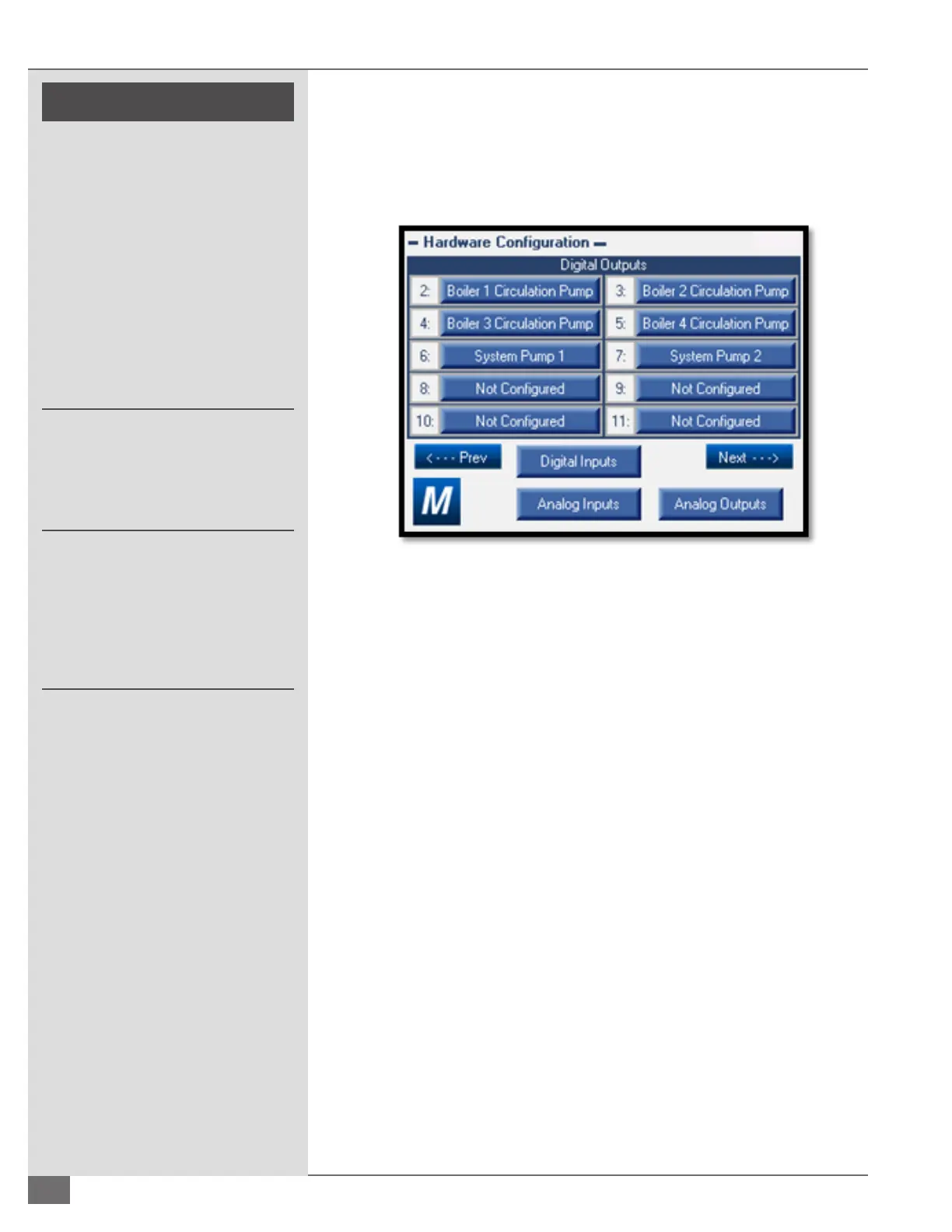

FIGURE 11 – DIGITAL OUTPUT HARDWARE CONFIGURATION SCREEN
 Digital Outputs: All digital outputs need to be congured for the options
desired before the output will operate. Only options that have been
enabled will be selectable along with some precongured default options.
All digital outputs are 24VDC and relays should be used to buer the
control signals.
» Boiler # Isolation Valve: Congures the output as an isolation valve
for the selected boiler. This will be a normally closed or normally
open output based on a user selection on the isolation valve
conguration screen. This selection will only be available if isolation
valves have been enabled.
» Boiler # Circulation Pump: Congures the output as a boiler
circulation pump for the selected boiler. This will be a normally
closed or normally open output based on a user selection on the
pump conguration screen. This selection will only be available if
boiler circulation pumps have been enabled.
» Boiler # Alarm: Congures the output as an alarm output for the
selected boiler. The output will enable whenever an alarm for the
corresponding boiler occurs.
» General Alarm: Congures the output as the general alarm. The
output will enable whenever any alarm condition occurs.
» Boiler # Status: Congures the output as a boiler status output. The
output will enable whenever the corresponding boiler is running.
