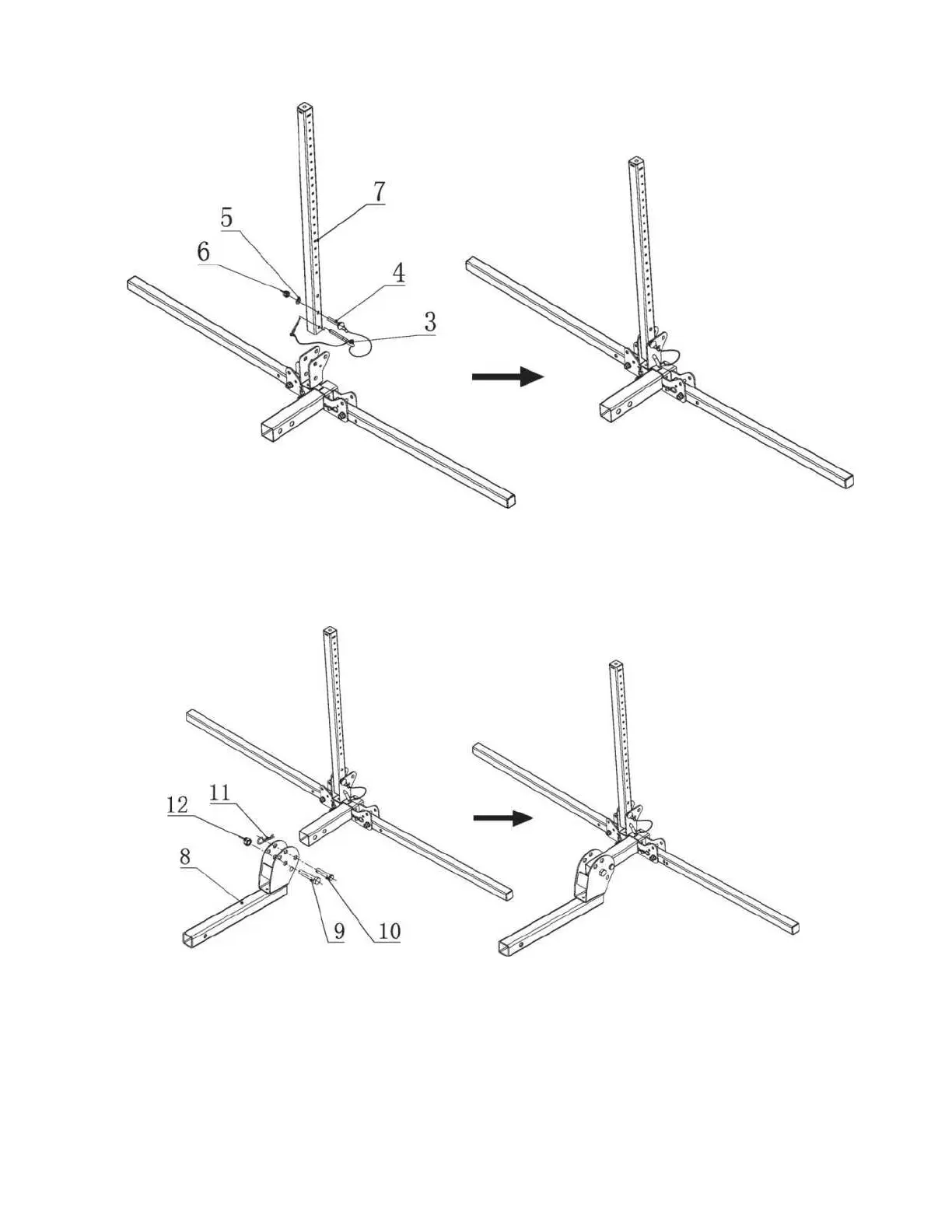

to lock Vertical arm (#7) . See Fig 2

STEP 3 Attach Folding Shank(#8) to Support Base assembly tube, using M16 BOLT (#9) , M16 LOCKNUT (#12) , pin (#10) and

Clip (#11) for extra safety. See Fig 3

FIG 3

STEP 4 Slide the cradles onto the horizontal arms. Release the knob of the left and right cradle (#13、#14). The knob should be

facing up and the loop end of cradle should be facing outward and upward. Insert the cradles in sequence as shown below Fig 4.

FIG 2
