After all 4 cradles are on the horizontal arms, tighten.

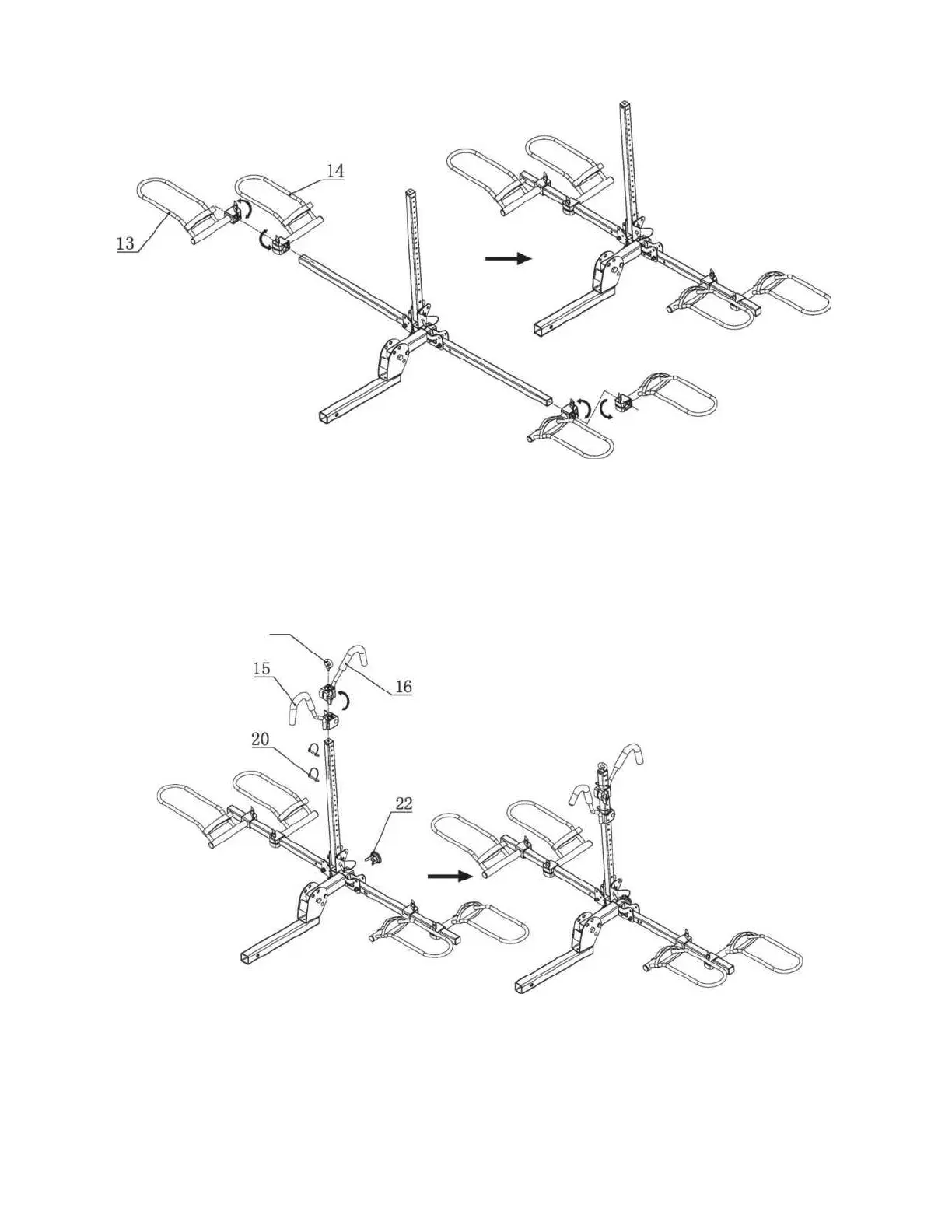

FIG 4
STEP 5 Install the Long J-hook assembly (#15) and Short J-hook assembly (#16) onto the vertical arm, then tighten the eyebolt
(#21) . Secure the J-hooks by using snap pin (#20) . Put the reflector (#22) in the hole of the square tube. See Fig 5
FIG 5
21
STEP 6 Insert folding shank into 2" receiver, use Stabilizing Pin、3/2" Flat Washer、1/1" Spring Washer and Clip (#17、#18、 #19、
#11) to fix.
