FUNAI DPVR-4600 - Page 30

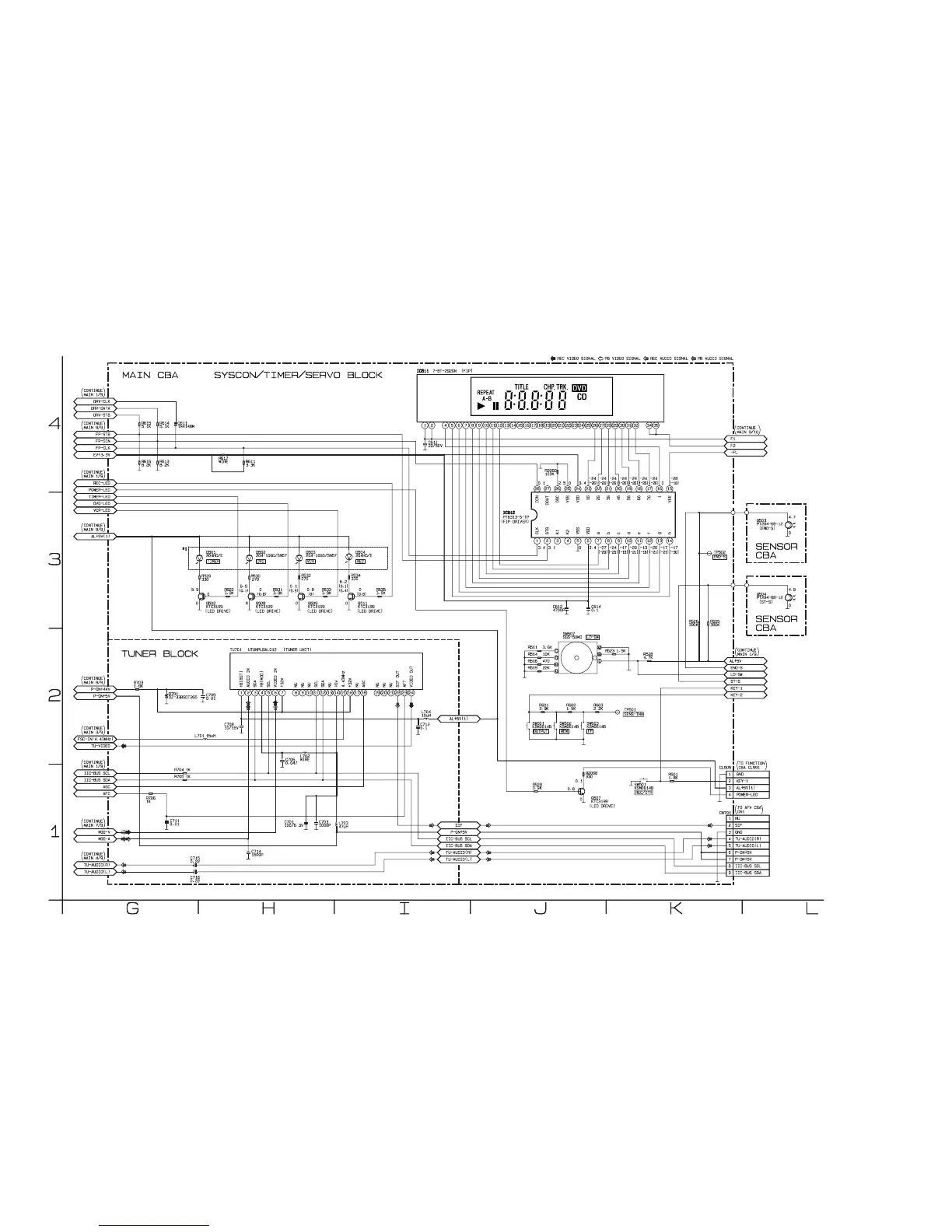

Main 2/9 & Sensor Schematic Diagram < VCR Section >
1-10-5
1-10-6
H9510SCM2
Note:
When it is necessary to replace one or more of the following Diodes,
all one should be replaced: D501, D502, D503, D504.
*
