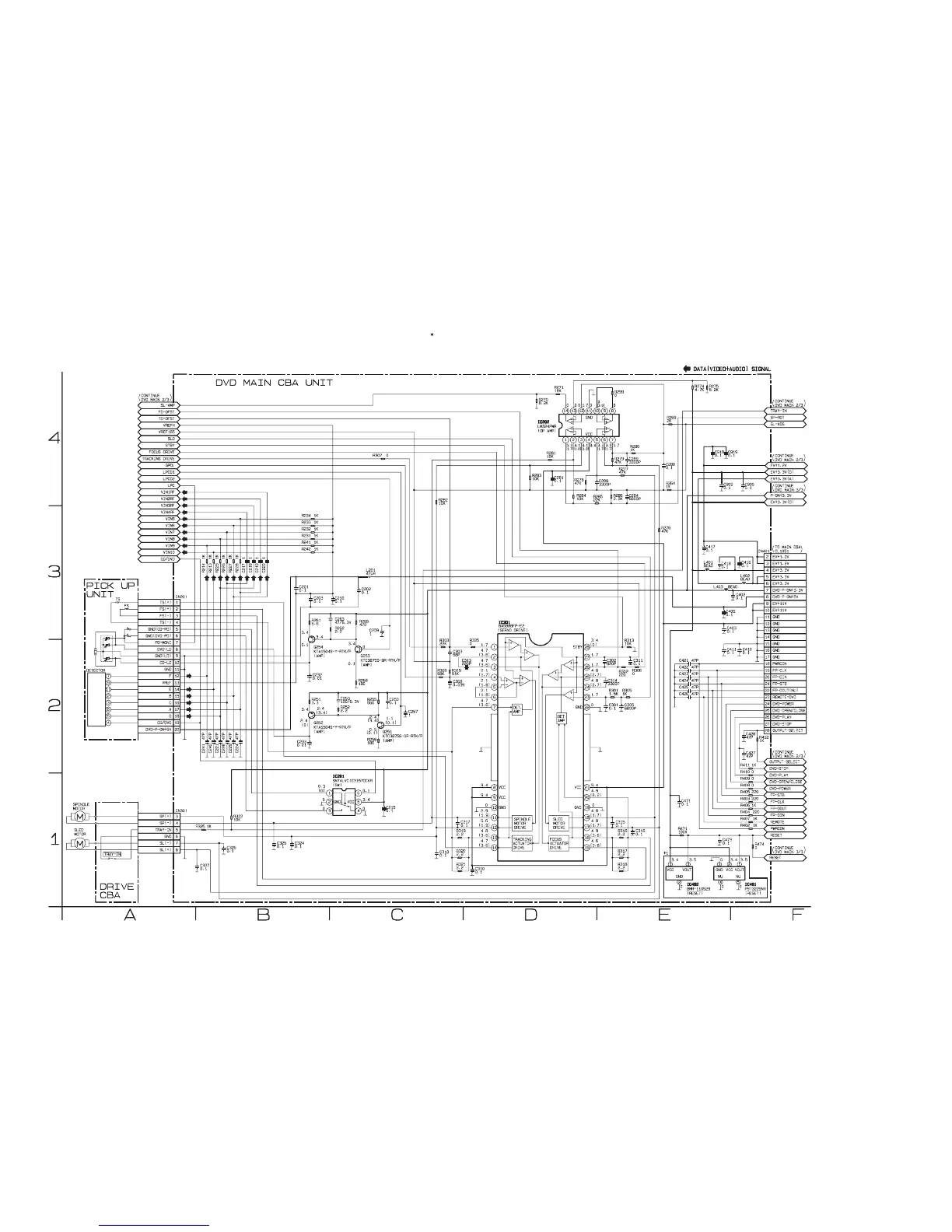

DVD Main 1/3 Schematic Diagram < DVD Section >
1 NOTE:
Either IC461 or IC462 is used for DVD MAIN CBA UNIT.
