3. How to Eject Manually
< Method 1 >
Note: When servicing, do not touch white resin part as shown below.
When rotating the gear, be careful not to damage the gear.
1. Remove the Top Cover.
2. Rotate the gear in the direction of the arrow manually as shown below.

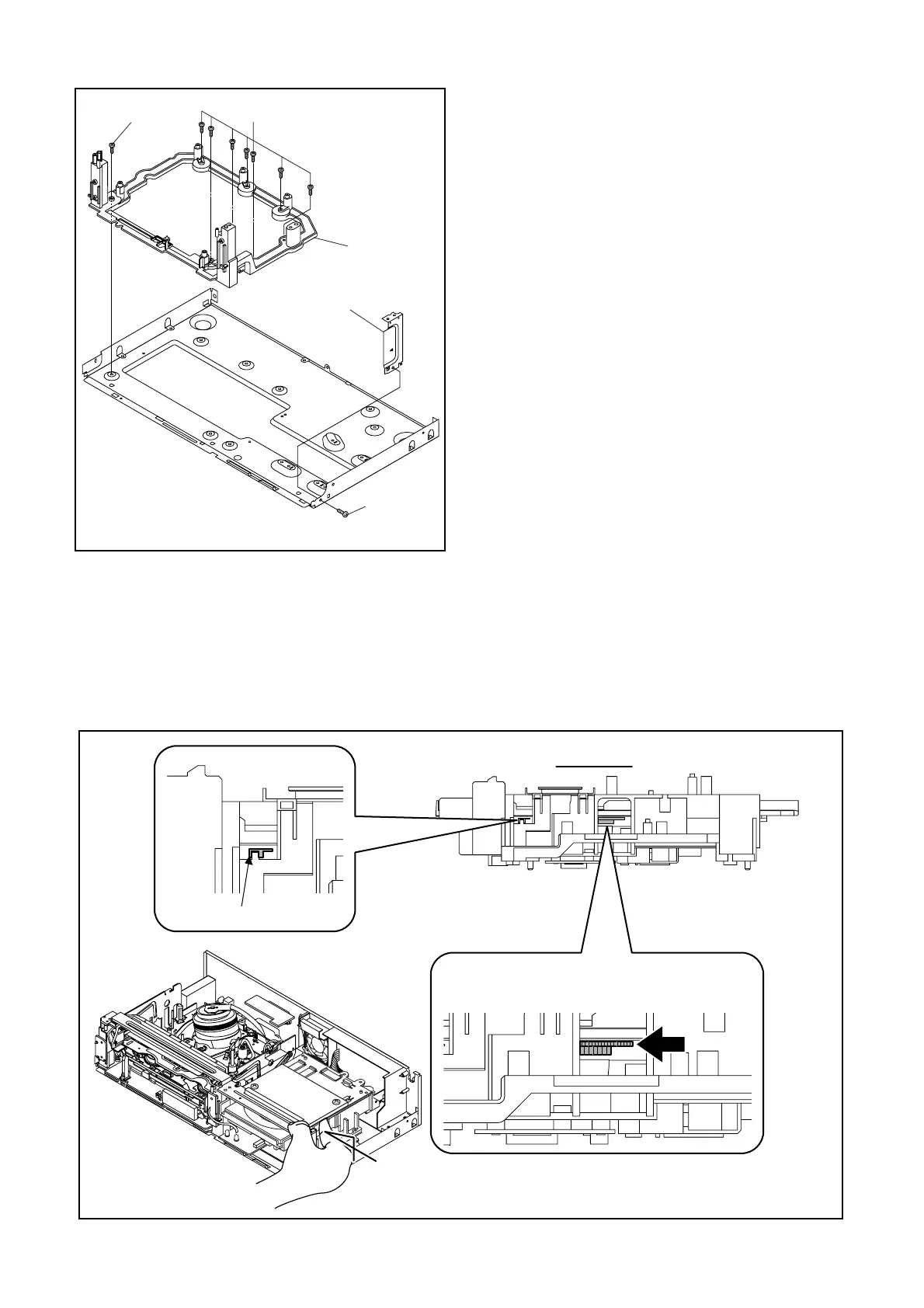

Fig. D9
[20] Deck
Pedestal
[21] Front
Bracket R
(S-19)
(S-19)
(S-20)
View for A
Rotate this gear in
the direction of the arrow
Do not touch!
A
