FUNAI DRVR-B778 - Page 52

1-12-18
E9712SCD4

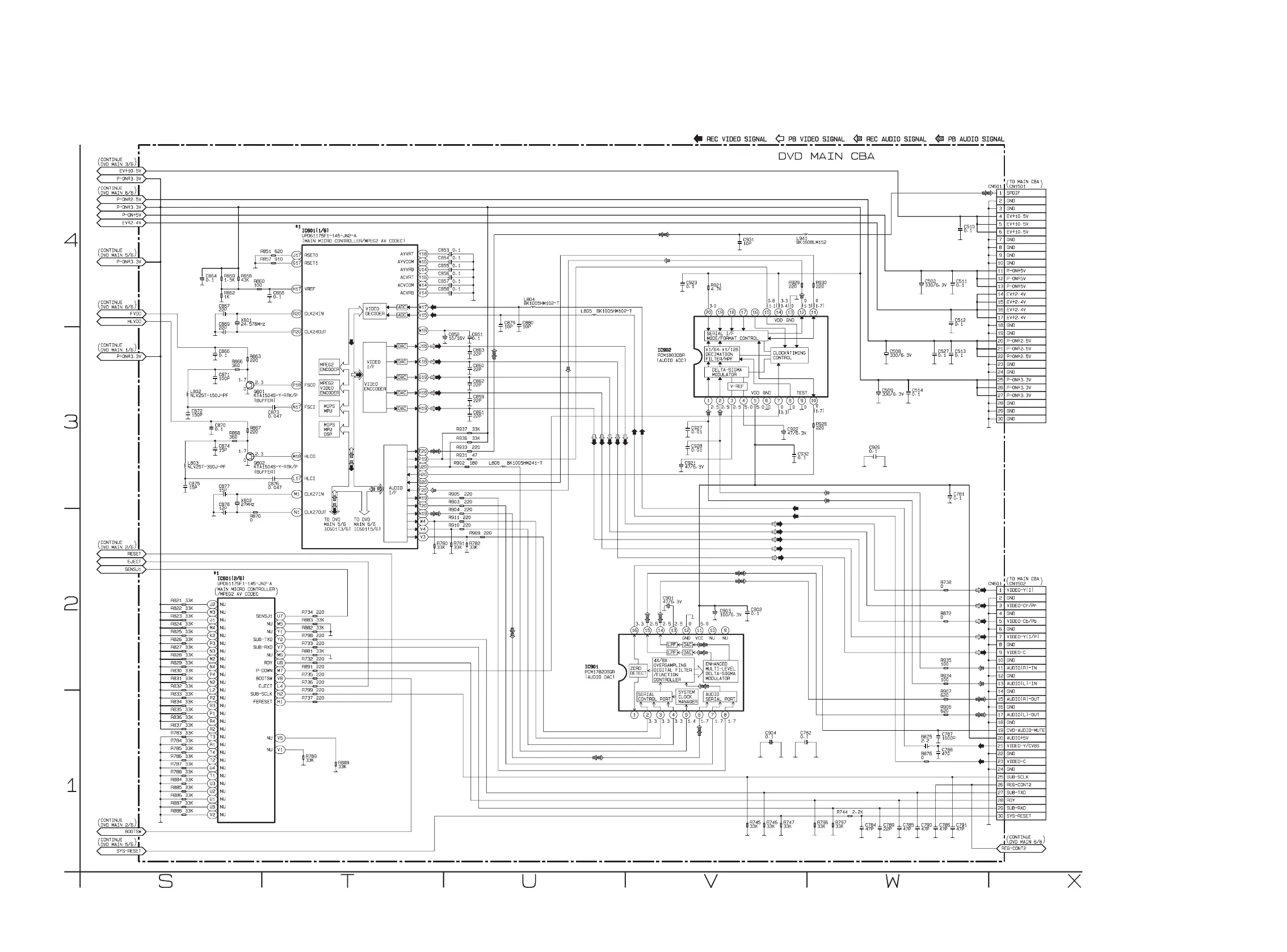

DVD Main 4/6 Schematic Diagram < DVD Section >
NOTE:
1. The order of pins shown in this diagram is different from that of actual IC601.
2. IC601 is divided into six and shown as IC601 (1/6) ~ IC601 (6/6) in this DVD Main Schematic Diagram Section.
