FUNAI LT6-M19BB - Digital Main CBA Diagram (2;6)

8-10
A8CN1SCD2

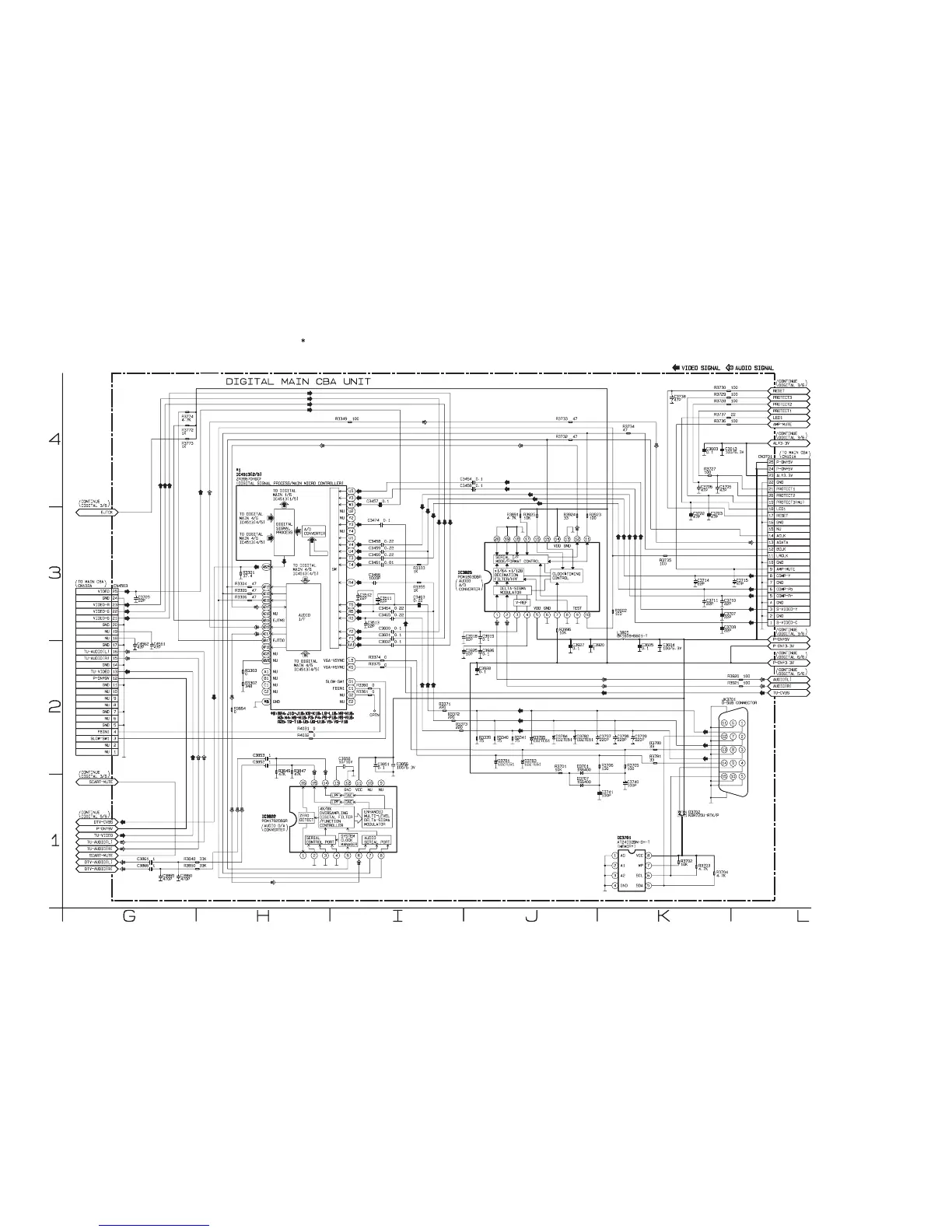

Digital Main 2/6 Schematic Diagram
The order of pins shown in this diagram is different from that of actual IC4513.
IC4513 is divided into seven and shown as IC4513 (1/5) ~ IC4513 (4/5) in this Digital Main Schematic Diagram Section.
1 NOTE:
