1-6-2 E8C1SDC
5. Before installing the Deck Assembly, be sure to
place the pin of LD-SW on Main CBA as shown in
Fig. D6. Then, install the Deck Assembly while
aligning the hole of Cam Gear with the pin of LD-
SW, the shaft of Cam Gear with the hole of LD-SW
as shown in Fig. D6.

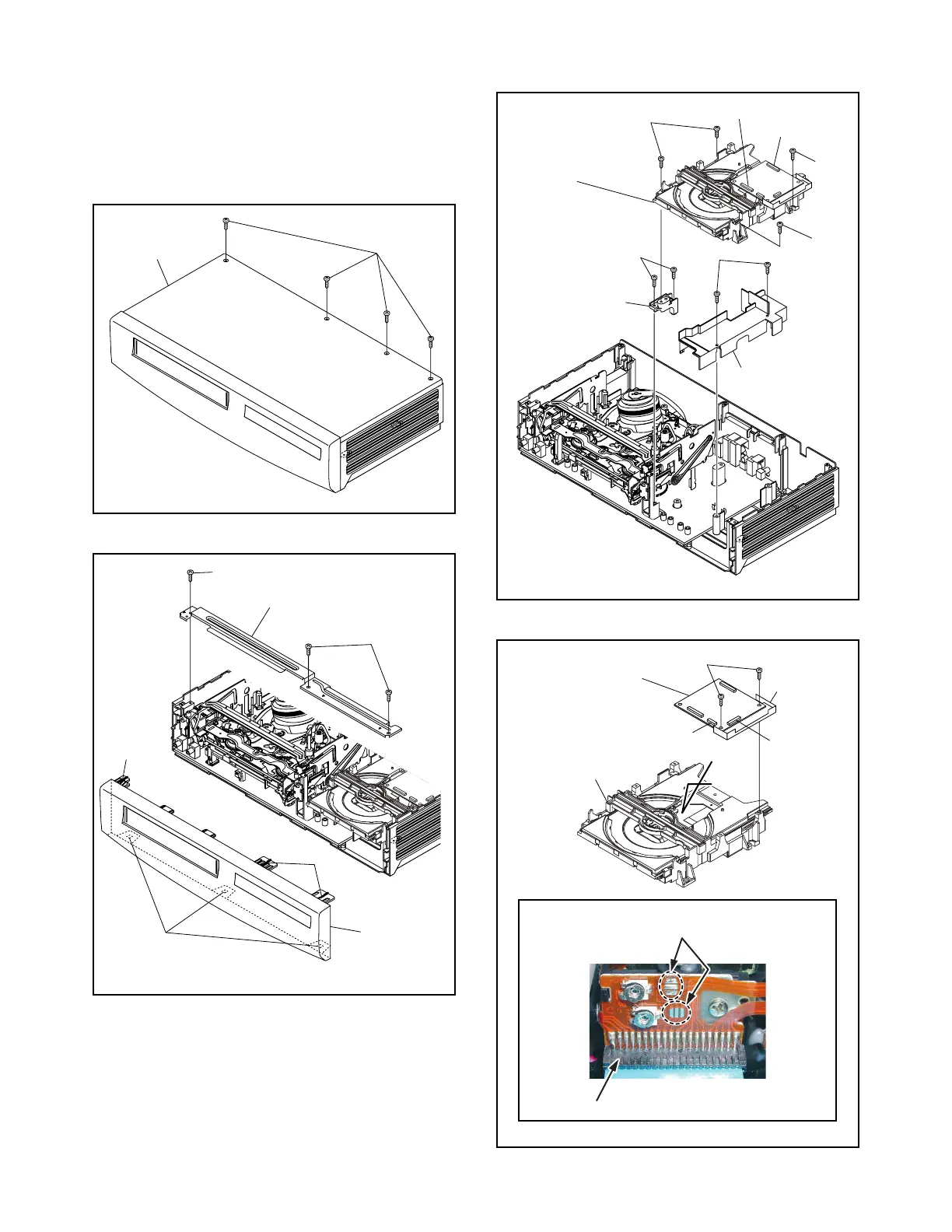

(S-1)
[1] Top Case
Fig. D1
(L-1)
(L-2)
(L-1)
[2] Front
Assembly
Fig. D2
(S-2)
(S-2)
[3] Top Bracket
Fig. D3
CN401
CN601
(S-3)
(S-3)
(S-3)
(S-4)
(S-5)
[5] Partition Plate
[6] Loader
Holder
[4] DVD
Mechanism
Assembly
CN201
CN301
(S-6)
[7] DVD Main
CBA Unit
DVD Mechanism
PCB Holder
A
Fig. D4
View for A
Short the three short lands by soldering.
(Either of two places.)
Connector
To Next Page
