FUNAI WV806 - Page 45

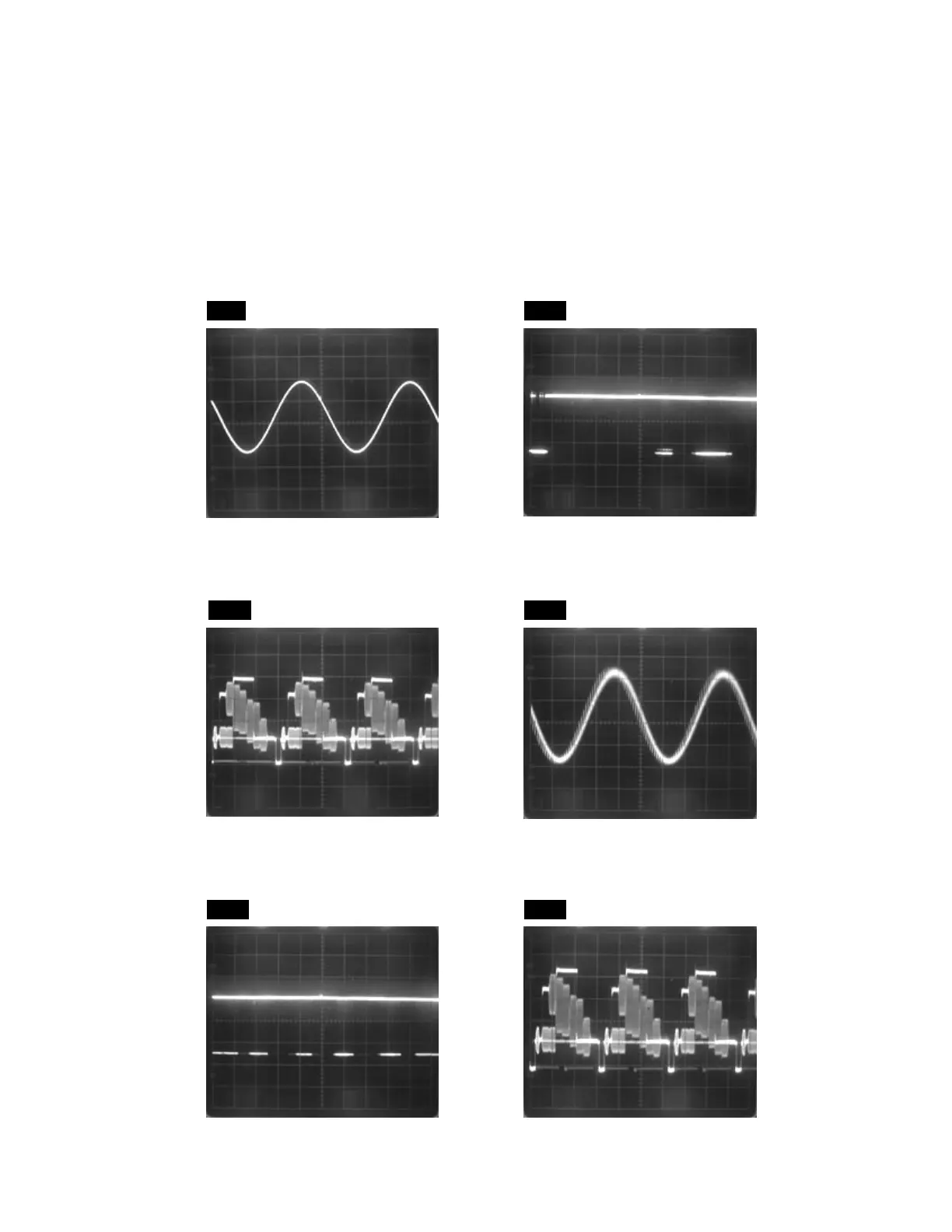

WF13
WF11
WF12
WF10
WF14
WF15
Pin 2 of TU701
Pin 14 of TU701
Pin 12 of TU701
Pin 11 of TU701
Pin 6 of TU701
Pin 18 of TU701
NOTE:
Input
VCR: COLOR BAR SIGNAL (WITH 1KHz AUDIO SIGNAL)
(WF1~WF3, WF10~WF15)
DVD: POWER ON (STOP) MODE
(WF4~WF6)
CD: 1kHz PLAY
(WF7~WF9)
MOD-A 0.5V 0.2ms
MOD-V 0.5V 20 µs
PLL-CLK 2V 2ms
PLL-DATA 2V 2ms
TU AUDIO 0.5V 0.2ms
TU VIDEO 0.2V 20 µs
D7NCFNWF2
1-13-2
