Funkwerk EGO TALK Quick Guide

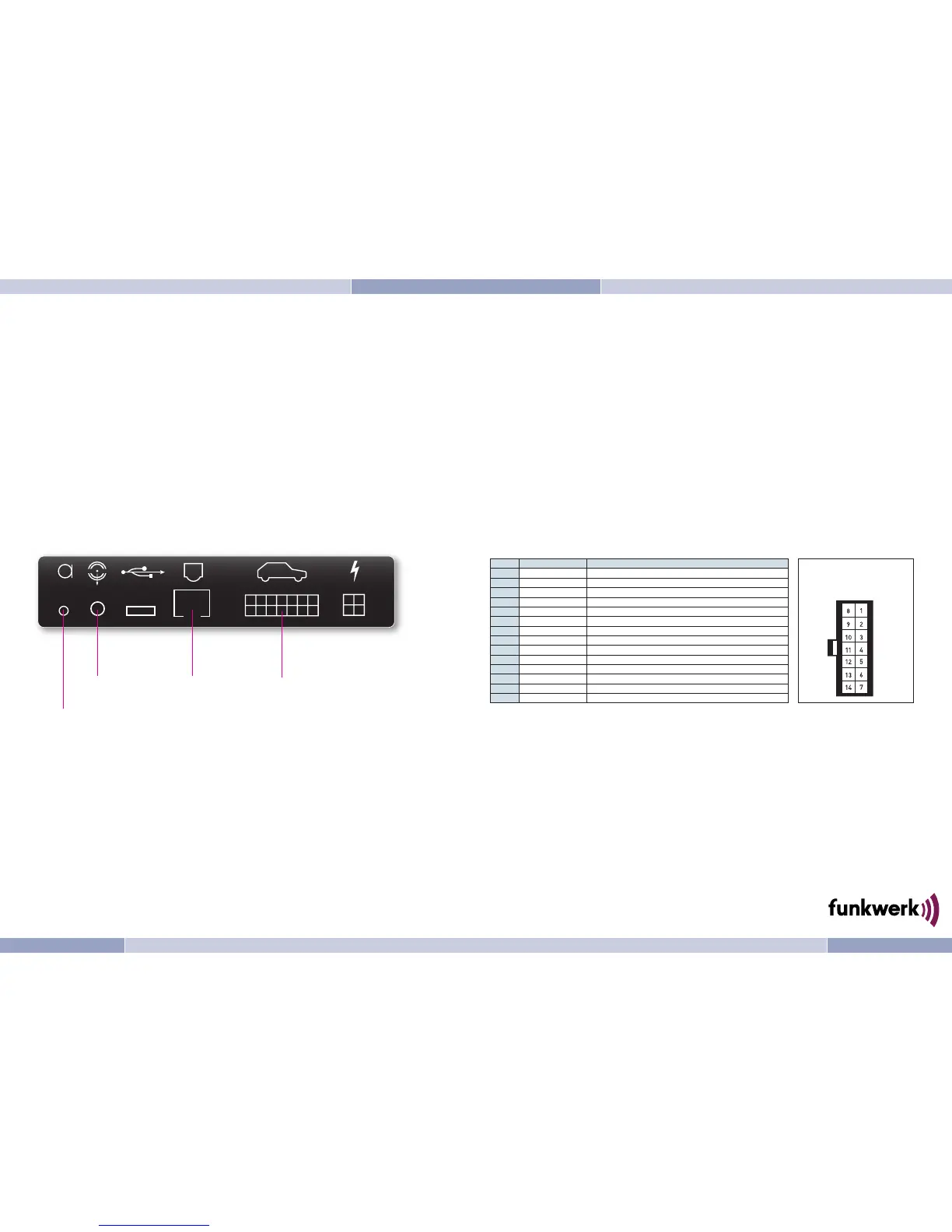

Connection Concept
Microphone
Line out
(Stereo)
Command unit Adapter cable
Pin Color Function
View of the plug side, from which
the wiring is fed in the plug
housing (with pin allocation)
1 Brown Ground
2 Yellow Radio mute
3
4
5
6 White EGO audio input (+) from Radio or Amplifier
7 Purple EGO audio output (+) to Speaker
8 Red Battery +12 VDC
9 Blue Ignition +12 VDC
10
11
12
13 Black EGO audio input (-) from Radio or Amplifier
14 Green EGO audio output (-) to Speaker
