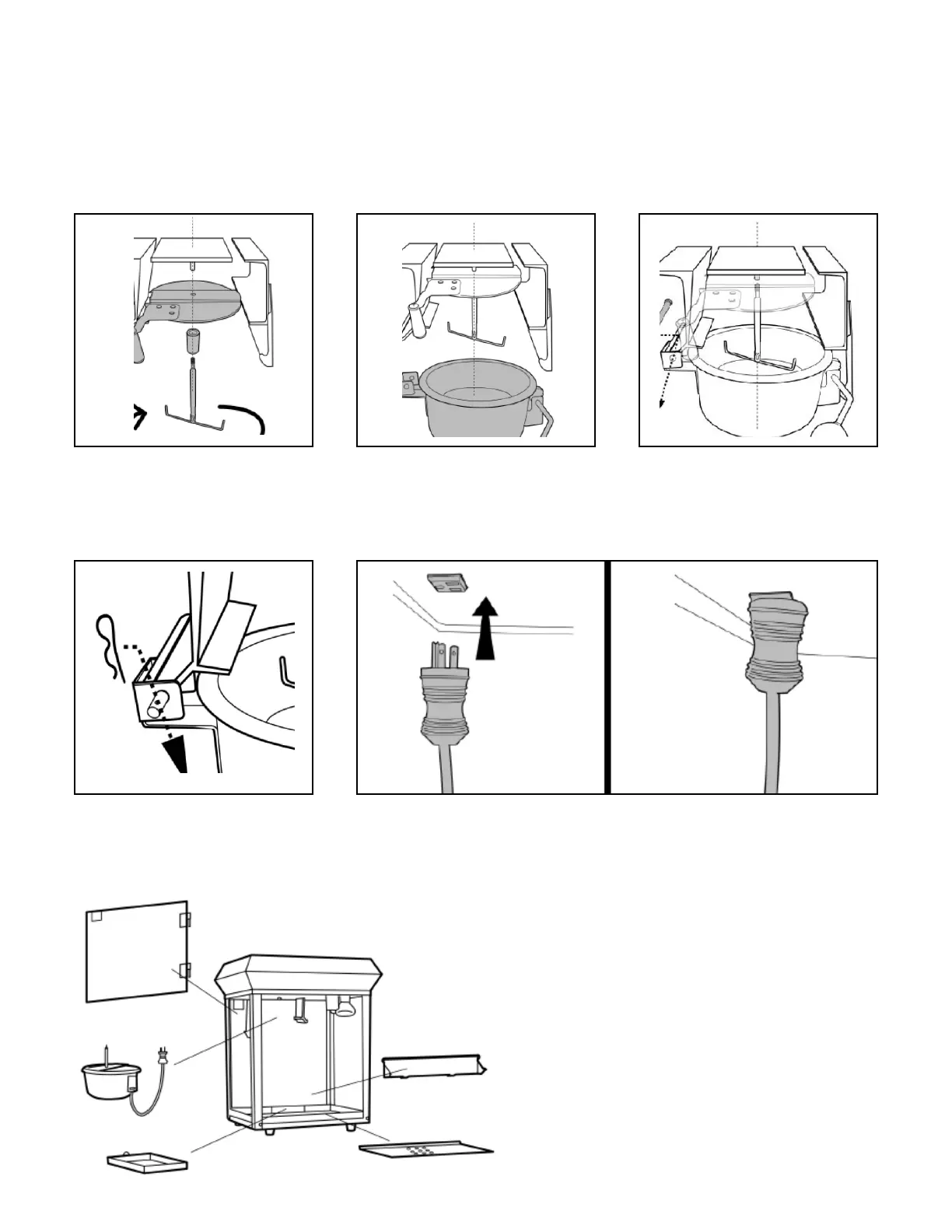

Assembling Procedures
Fig 1. Screw the lips, axle
xer, and stirrer onto the
gear box in clockwise.
Fig 2. Hold the kettle on the
supporter.
Fig 3. Insert a pin through
kettle and supporter.
Fig 4. Insert a pin through
the kettle and supporter.
Fig 5. Finally, insert the internal plug into the socket on the
inner top.
Place the kettle (B) on the supporter and
connect the socket following the direc-
tions above.
Put the block plate (C) on the lter.
Inser the detachable plastic door (D) on
the hinge. Insert the crumb tray (E) into
the opening at the bottom of the unit.
