Features
STM32F405 main chip
MPU6000 Gyroscope
Built-in connector for 4-in-1 ESC as well as solder pads
Built-in power switch for VTX, support 5V & Vbat
Built-in Camera switcher
Built-in 16MB Blackbox flash
Full 6 UARTs for Simultaneous Connections of Runcam Device, GPS, CRSF Rx,
Bluetooth and others
Work with 5V or Vbat input
High quality 5V 2A BEC w/2S – 6S voltage input range
Built-in Inverter for S.BUS & S.PORT
Integrated Silicone Damper for maximum FC functionality

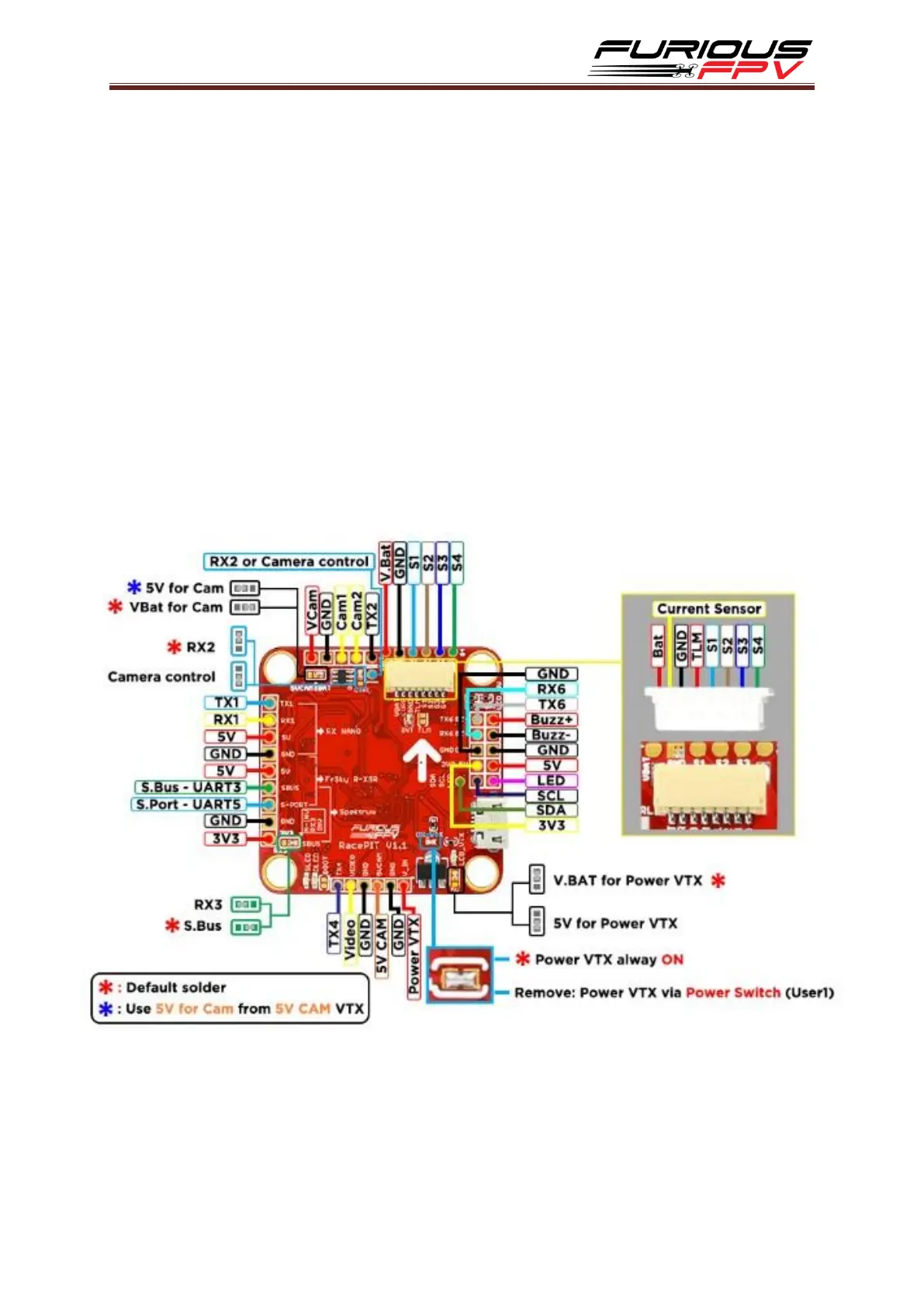

Pinouts
