S R M - 8 0 A / E – S I G N A L R O U T E R / M O N I T O R
INTRODUCTION
Congratulations on your purchase
of a Furman Model SRM-80A Signal
Router/Monitor. Your SRM-80A will
make monitoring, mixdown, and dub-
bing sim pler and faster, thus help ing
you achieve professional results.
ABOUT THE SRM-80
The SRM-80A facilitates mixdown and dub-
bing between different media types without
tying up additional console chan nels. By con-
necting the control room outputs of your mixer,
inputs and of up to three power am pli fi ers or
powered speak ers, speaker outputs of one
stereo power amplifi er, and up to three pairs
of speakers, you will have a highly useful and
sophisticated audio playback monitor system.
Multiple copies can be made si mul ta neous ly
through use of the SRM-80A’s four rotary

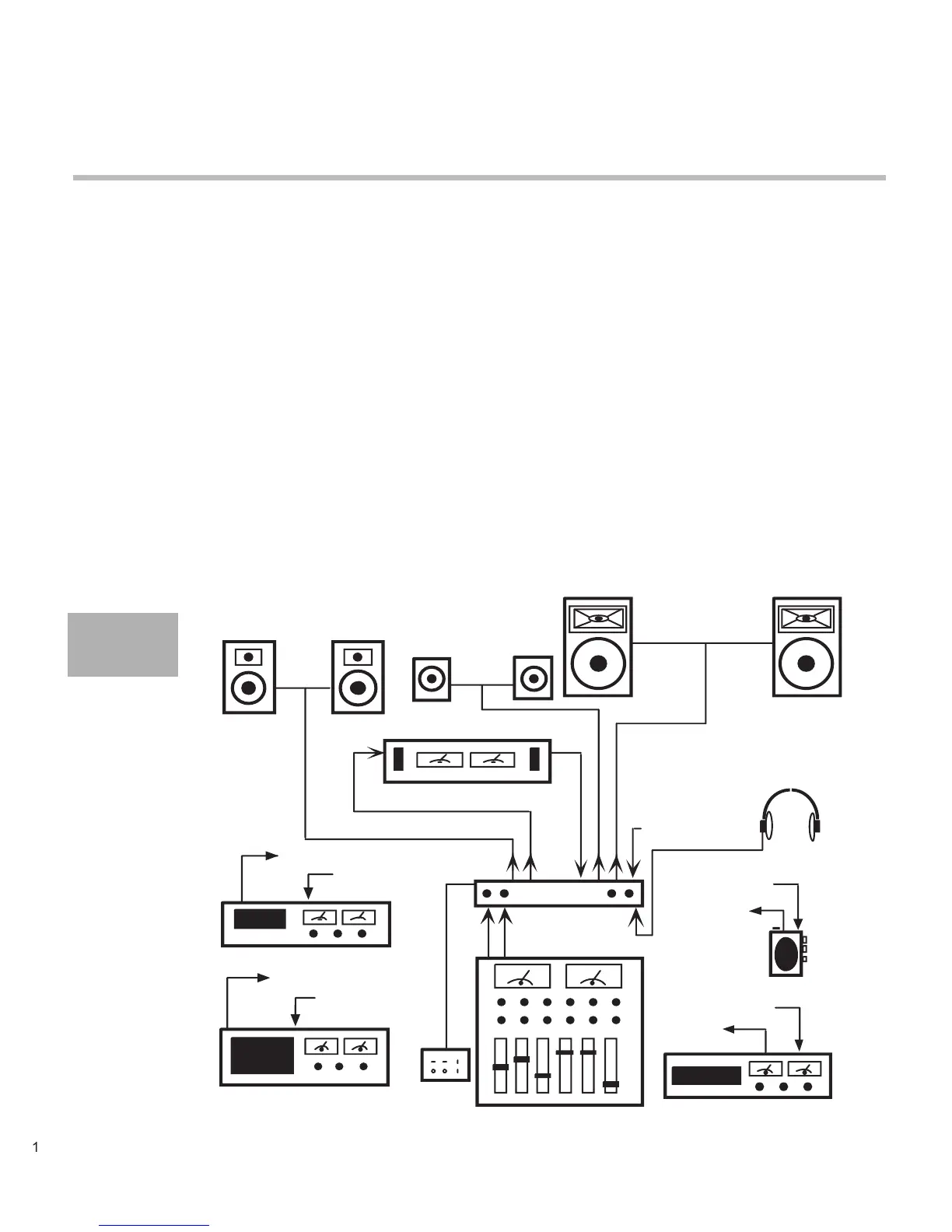

SOURCE MIXER
PO W ER AM PLIFIER
OU TPU T
IN PU T
MO N ITOR LIN E OUTPU T B
SRM -80A
SRM -RU
H EADPH O N ES
SPEAKER C OUTPU T
PASSIVE SPEAKERS
SPEAKER B OUTPU T
PASSIVE SPEAKERS
MO N ITOR LIN E OUTPU T A
PO W ERE D SPEAKERS
D AT RECOR D ER
TO “A” IN
FROM “A” OUT
IN PU T
COM PAC T D ISC PLAYER
-RECOR D ER -
TO “D” IN
FROM “D” OUT
TO “B” IN
OU TPU T
C ASSE TTE RECOR D ER
TO “C ” IN
MIN I D ISC
FROM “C ” OUT
FROM “B” OUT
IN PU T
MO N ITOR LIN E OUTPU T A
TO SOURCE IN
IN PU T
IN PU T
OU TPU T
OU TPU T
OU TPU T
FROM
AM P(B)
OU TPU T
SET SW ITC H
TO SPK-B/C
SYSTEM
SETUP 1
1
