FM-4850 Operator’s Manual
INSTALLATION
91

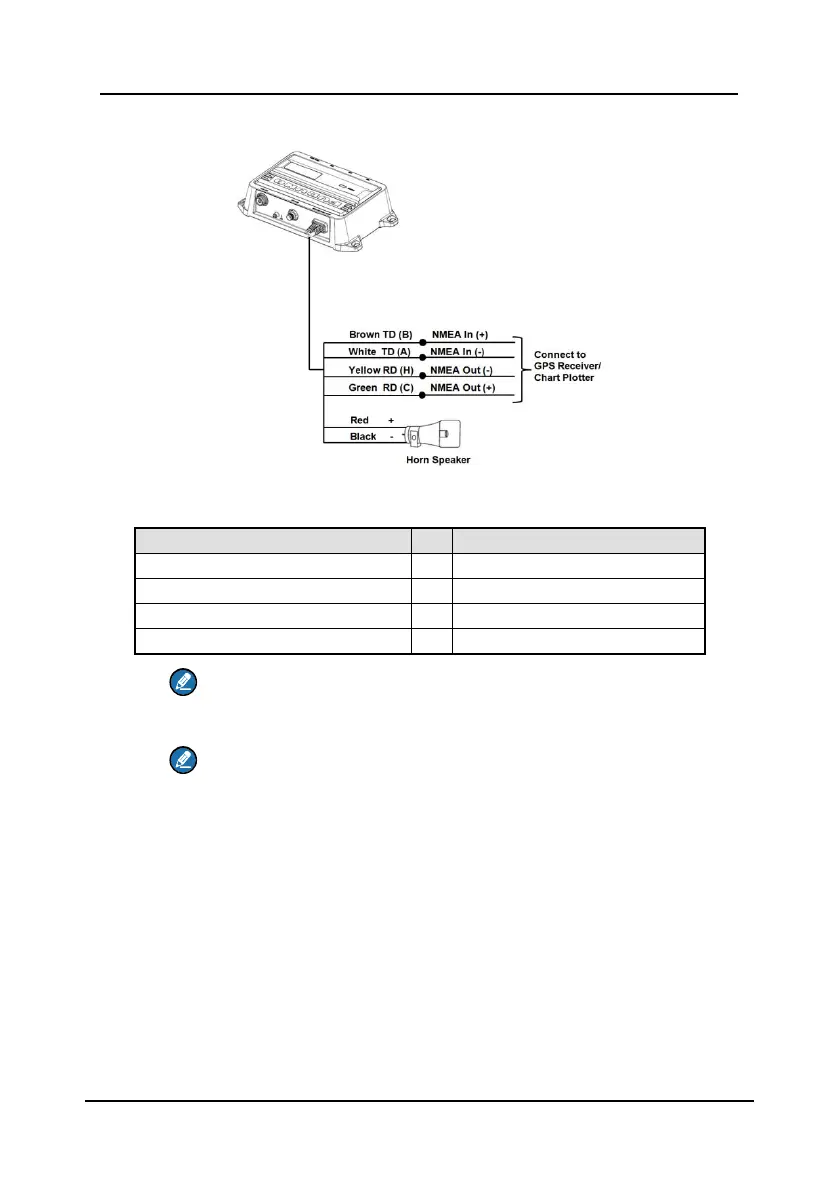

The NMEA 0183 wire should be connected to a compatible NEMA 0183 device
as shown in the table below:
NEMA 0183 wires
NEMA 0183 device
Yellow –Receive positive (-)
to
Transmit positive (-)
Green–Receive negative (+)
to
Transmit negative (+)
White–Transmit positive (-)
to
Receive positive (-)
Brown–Transmit negative (+)
to
Receive negative (+)
Note
Cover the connections with a waterproof tape or heat-shrink tubing.
Note
Sensor source priority : Built in sensor > NMEA2000 > NMEA0183.
Baud rates : "AIS OUTPUT" is set to "ON" -> 38400 bps
"AIS OUTPUT" is set to "OFF" -> 4800 bps
15.3.6 Horn Speaker
You can connect the radio to a horn speaker to use the handset to make
announcements.
Step 1 If necessary, mount the horn speaker according to the installation
instructions provided with the device.
