Fusion MS-RA200 User & Installation Manual

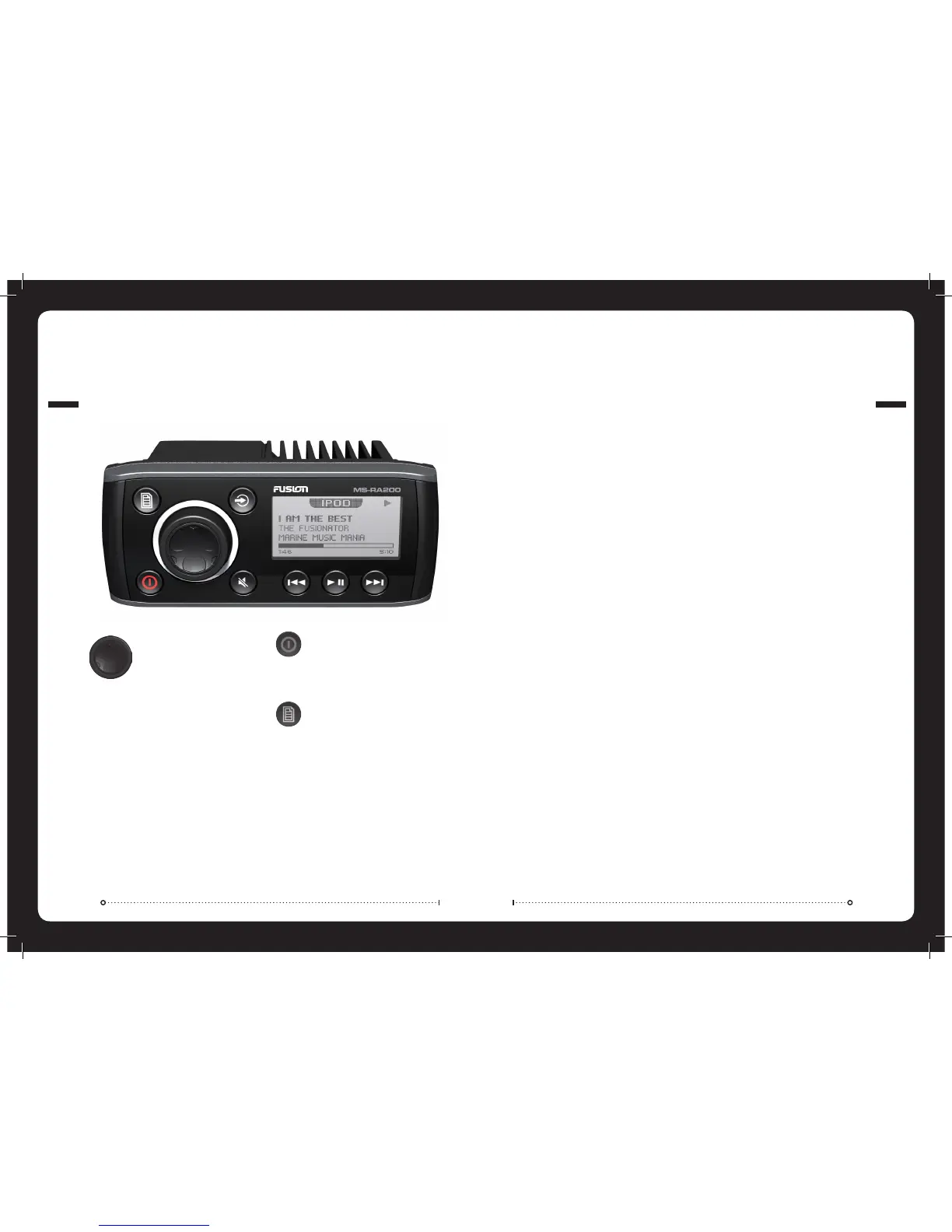

BUTTON DESCRIPTION
ROTARY ENCODER
Turn
To adjust volume, move up or down a
menu structure, or adjust a specific
setting.
Press
To select a highlighted option, confirm
a setting. Press to step through each
zone for volume adjustment.
Press and Hold
For quick access to subwoofer level
adjustment
POWER
Press to turn the unit ON/OFF.
Press and Hold
Press and hold for 10 seconds to ‘Reset’
the stereo.
MENU
Press to enter Menu System. Press to
return to previous screen.
Press and Hold
To exit the menu system.
007 BUTTON DESCRIPTION 016 ZONE OPERATION
The MS-RA200 Marine Stereo features Multi-Zone
technology which enables 2 ‘Zones’ with independent
balance/volume control.
ZONE SETUP
Press the ‘Menu’ button and select ‘Settings’. Select
‘Zones’ then the Zone you wish to setup.
VOLUME LIMIT
Select ‘Volume Limit’ to set the desired maximum
output volume for each individual Zone.
BALANCE
Select ‘Balance’ to adjust the balance from left to
right.
ZONE OPERATION
SUBWOOFER
Adjust the sub limit and filter.
SUB FILTER
Press the ‘Menu’ button and select ‘Zones’. Select
‘Subwoofer’ then ‘Sub Filter’. Select the desired
frequency. 55hz - 85hz - 120hz - 160hz
SUB LIMIT
Press the ‘Menu’ button and select ‘Zones’. Select
‘Subwoofer’ then ‘Sub Limit’. Select the desired
maximum subwoofer output volume.
Note: Press and Hold the ‘Rotary Encoder’ for quick
access to subwoofer level adjustment.
Note: Subwoofer and Lineout volume control is linked
to Zone 1.

Fusion MS-RA200 Specifications

General

Brand	Fusion
Model	MS-RA200
Category	Marine Radio
Language	English
